Plan and platform compatibility for 4G GPS Rugged Long-Life Battery Asset Tracker (CT-A08)
Plan or platform
Works?
Notes
Power Saver plan — $7/mo
Yes
2-minute updates — runs the AA batteries down far faster than the infrequent reporting this tracker is built for. Annual plan $70/yr — two months less than paying monthly.
Real-Time plan — $10/mo
Yes
10-second updates — uses the AA batteries fastest of all; its long battery life assumes infrequent reporting. Annual plan $100/yr — two months less than paying monthly.
BYO SIM + data
Yes
Any active Australian 4G SIM with data, in Nano-SIM (4FF) size.
Platform access
Yes

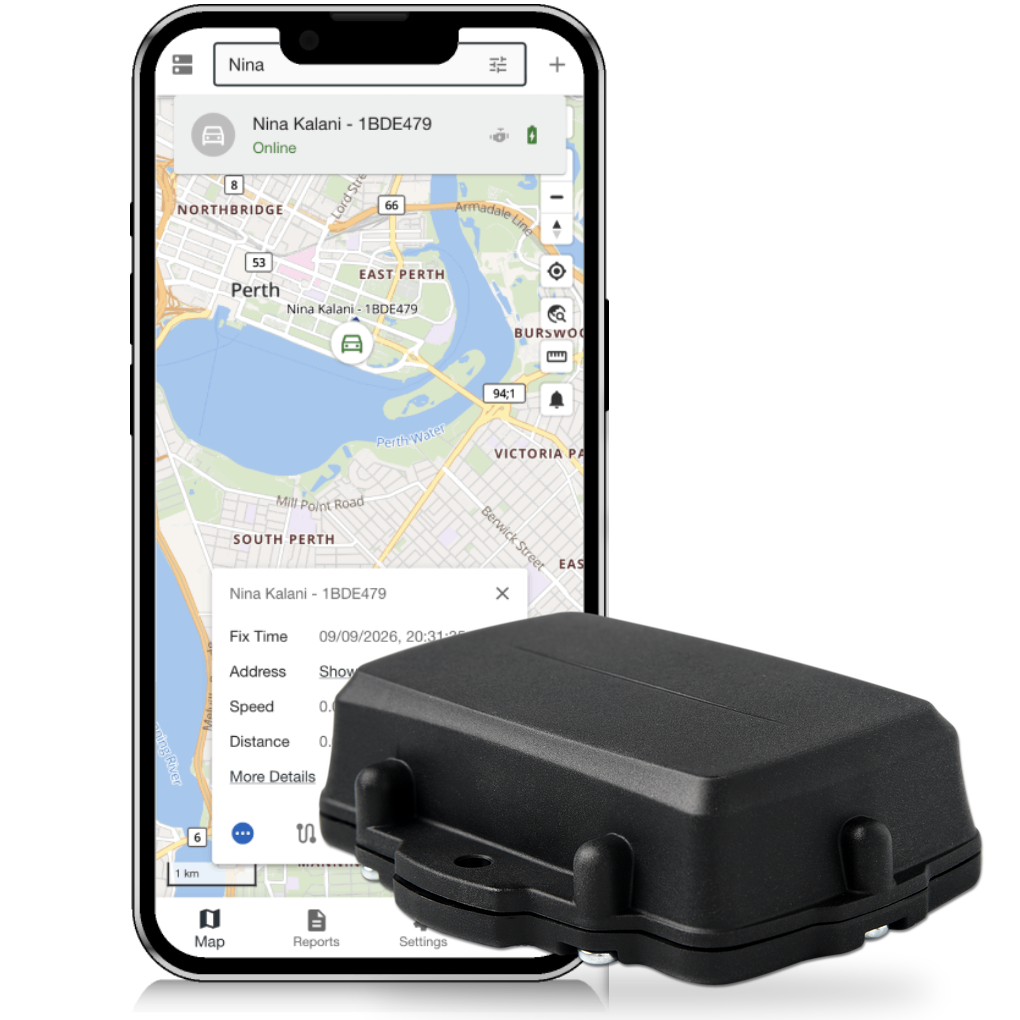

Included with a monthly or yearly plan, or add platform access on its own — not when the tracker is bought on its own.

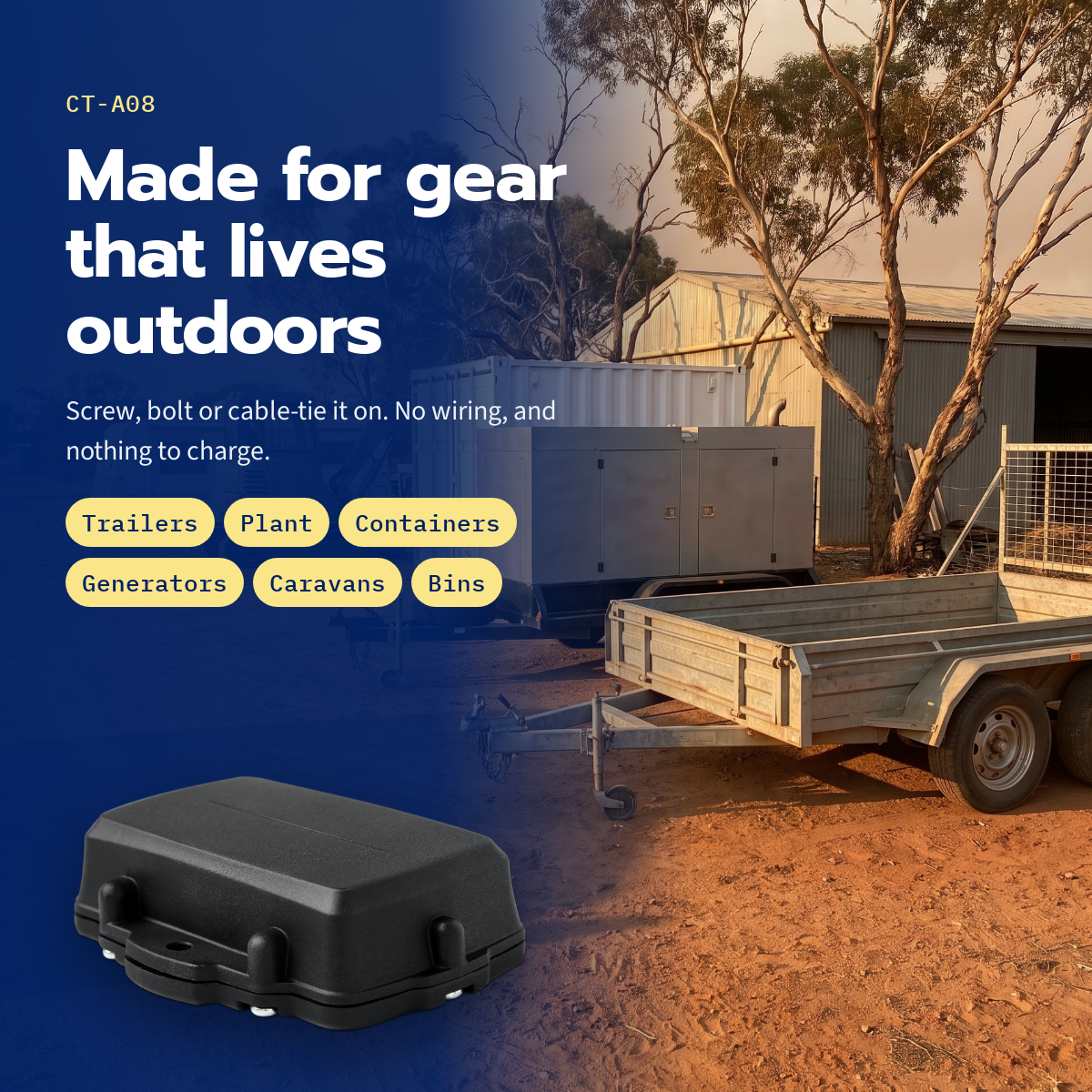

CT-A08 is a rugged 4G GPS asset tracker that runs on three AA Energizer Ultimate Lithium batteries. We fit them before it ships, so it arrives ready to go, with no wiring and nothing to charge. Screw it, bolt it or cable-tie it to a trailer, a piece of plant, a shipping container, a generator, a bin, a caravan or a boat trailer and leave it there.
It’s built to report infrequently, which is what its battery life assumes: up to 8 years at one location update a day. The more often it reports, the sooner the batteries run down. Updates every 2 minutes on the Power Saver plan run them down far faster, and updates every 10 seconds on the Real-Time plan fastest of all, so choose Power Saver unless you need 10-second updates.

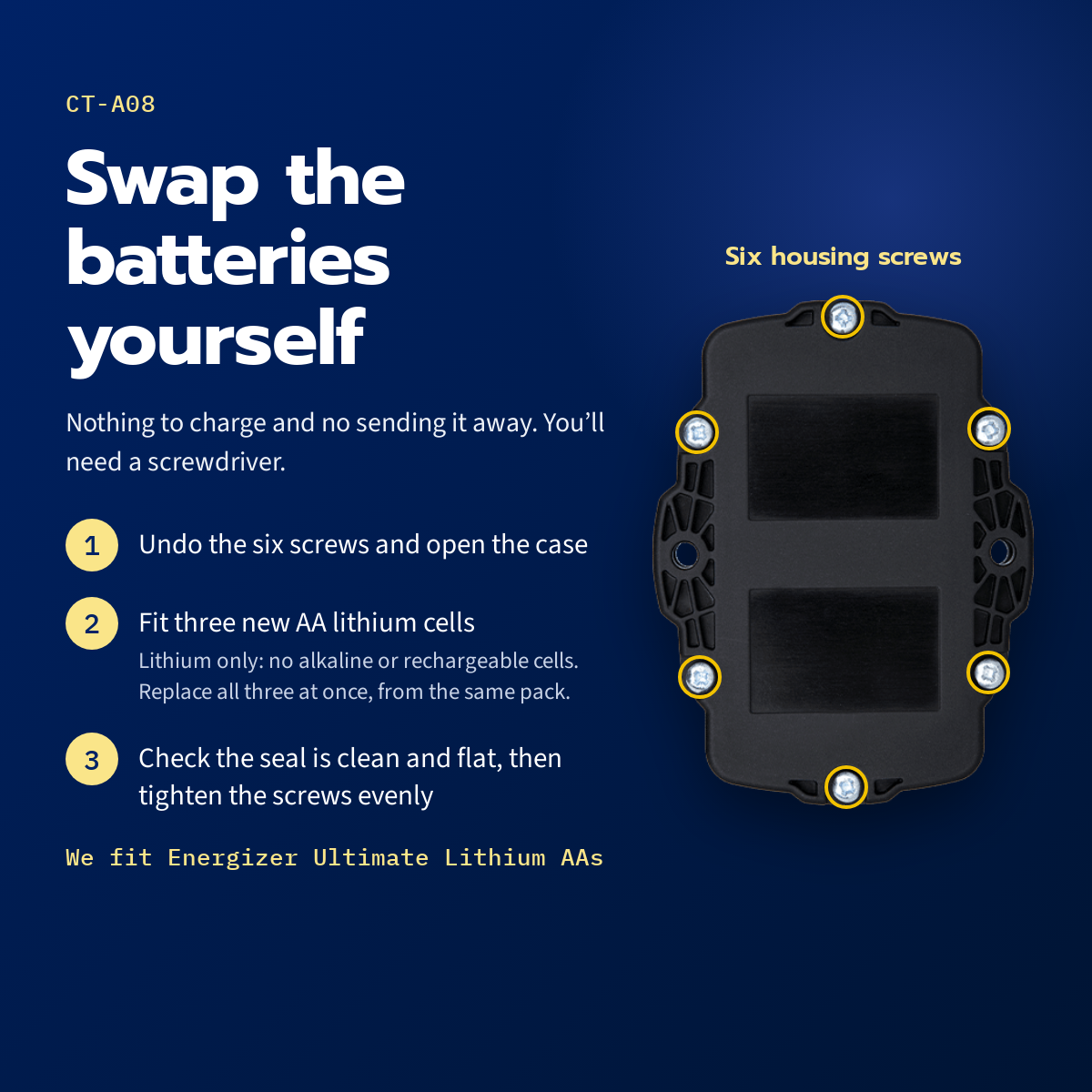

When the batteries run low, you replace them yourself: no charging, no special cells and no sending it back to us. Fit three new AA Energizer Ultimate Lithium batteries, all at once and never mixed with old cells or another brand. Use lithium AA cells only; don’t use alkaline or rechargeable cells. Then reseal the case: check the seal is clean and lying flat, and tighten the six screws evenly.

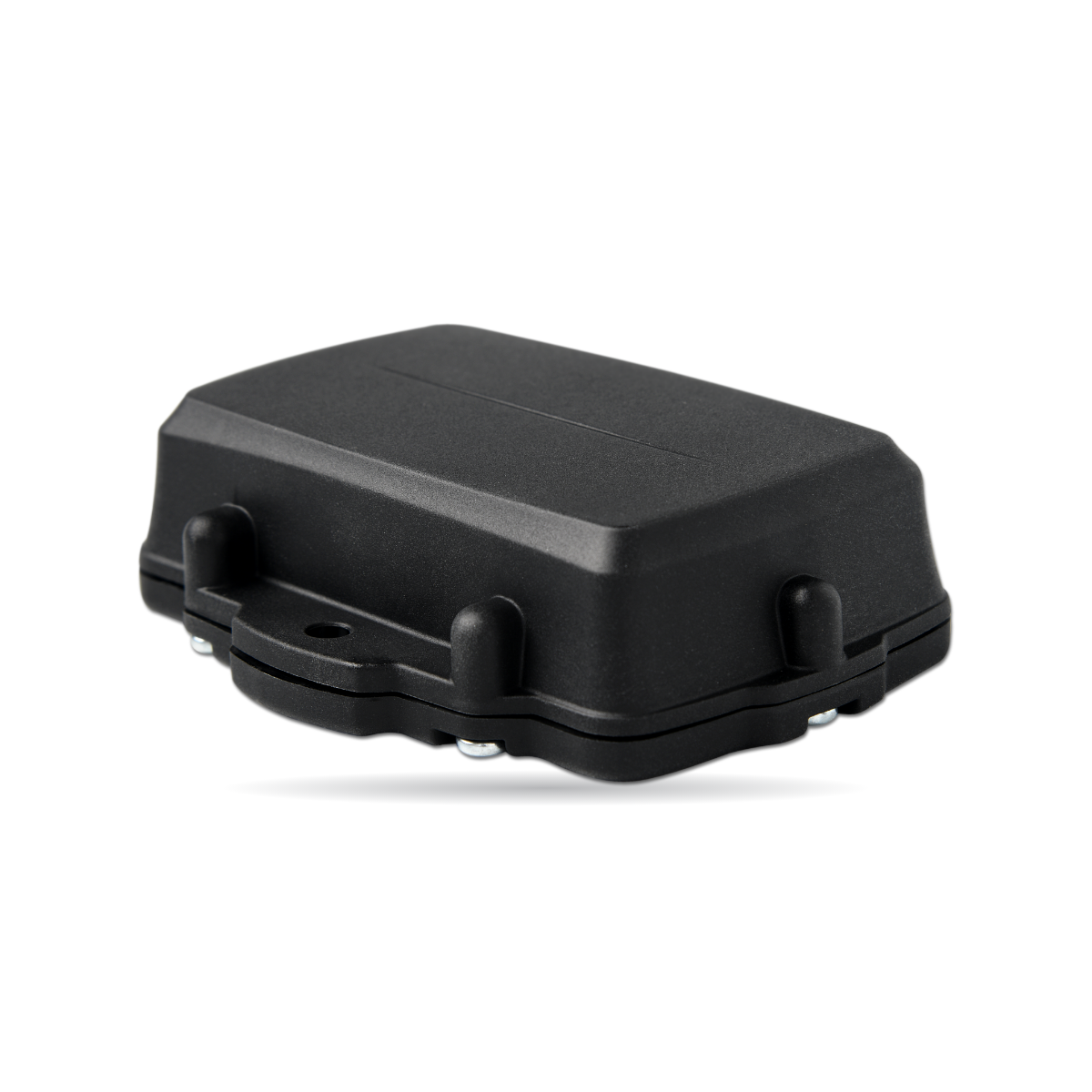

The sealed, rugged housing is IP68-rated when sealed correctly (dust-tight and protected against immersion) and impact-rated to IK07, and the tracker works from –30 °C to 60 °C. GPS, GLONASS, Galileo and BeiDou give positions accurate to about 2 m, with a rough location from the mobile network when it can’t see the sky. A motion sensor detects when the asset moves, and positions recorded out of coverage are sent once it’s back in range. It measures 108 × 86 × 30 mm and weighs 170 g with its batteries.
Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.
Specifications
Full hardware spec published
Specifications for 4G GPS Rugged Long-Life Battery Asset Tracker (CT-A08)
Power & install
Power source
Three AA Energizer Ultimate Lithium batteries, fitted before it ships — no wiring and nothing to charge
Installation
No wiring — screw, bolt or cable-tie it in place
Size

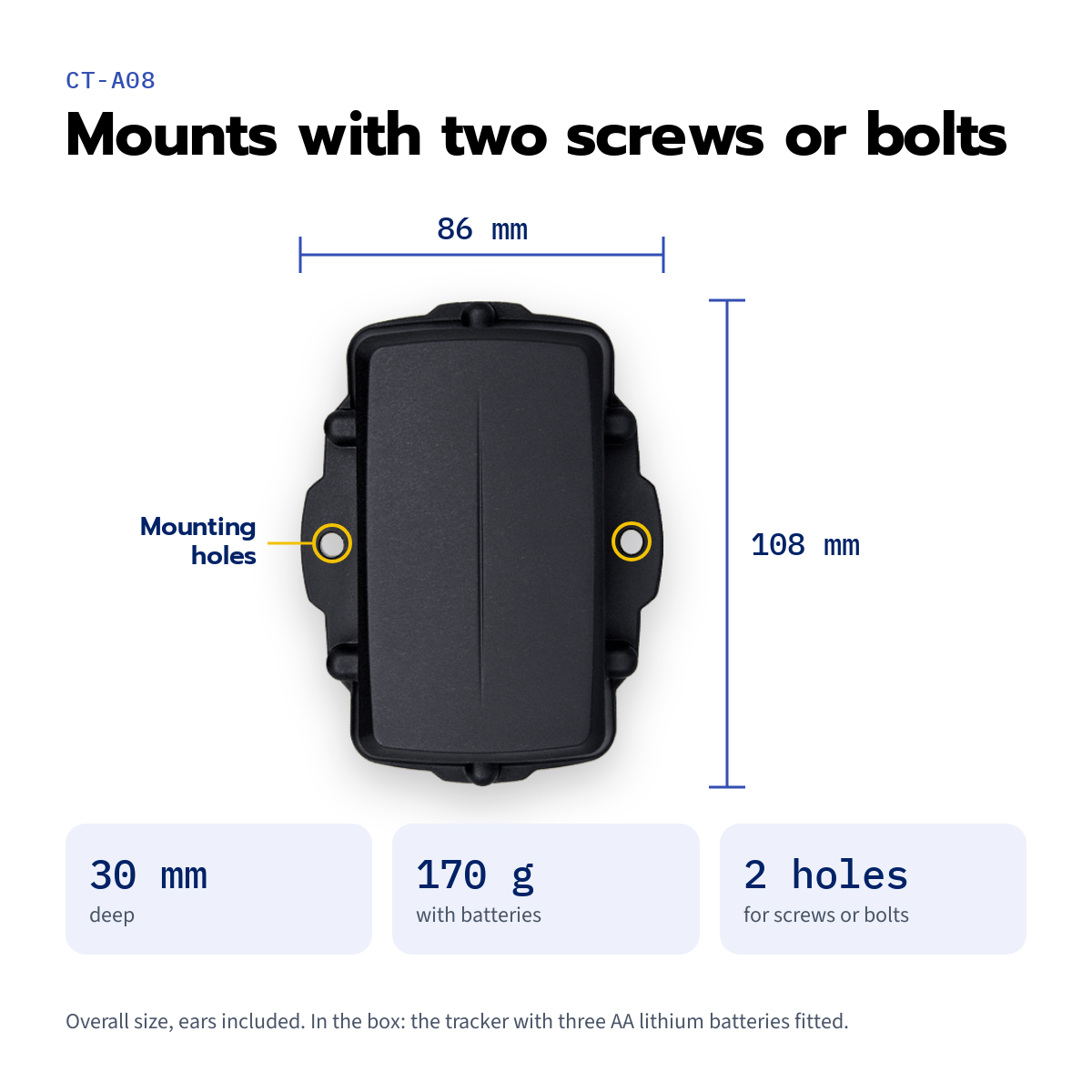

108 × 86 × 30 mm, 170 g with its batteries
In the box
The tracker with its three AA lithium batteries fitted and its six case screws in place, plus stainless steel mounting screws
Battery
Batteries
Three AA Energizer Ultimate Lithium — use lithium AA cells only; don’t use alkaline or rechargeable cells
Battery life
Up to 8 years at one location update a day — reporting more often shortens it, and updates every 2 minutes or every 10 seconds run the batteries down far faster
Battery change
Replace them yourself: open the case with a Torx screwdriver and fit three new AA Energizer Ultimate Lithium batteries at once, never mixing old and new cells or brands; then check the seal is clean and lying flat, and tighten the six screws evenly
Which battery?
Everyday AA lithium cells you can buy and fit yourself — for a sealed single-use battery, see CT-A05; to recharge between jobs, see CT-A06 or the smaller CT-A07
Ours — works across both the Telstra and Optus mobile networks — or bring your own
SIM size
Nano-SIM (4FF), inside the case
Tracking & alerts
Positioning
GPS, GLONASS, Galileo and BeiDou — accurate to about 2 m, with a rough location from the mobile network when it can’t see the sky
Reporting
Built for infrequent reporting — 2-minute updates on Power Saver and 10-second updates on Real-Time use far more battery
Movement
Built-in motion sensor detects when the asset moves, for movement-based tracking
Out of coverage
Stores positions while out of coverage and sends them once back in range
Mounting
Weather rating
IP68-rated when sealed correctly — dust-tight and protected against immersion; IK07 impact-rated
Mounting

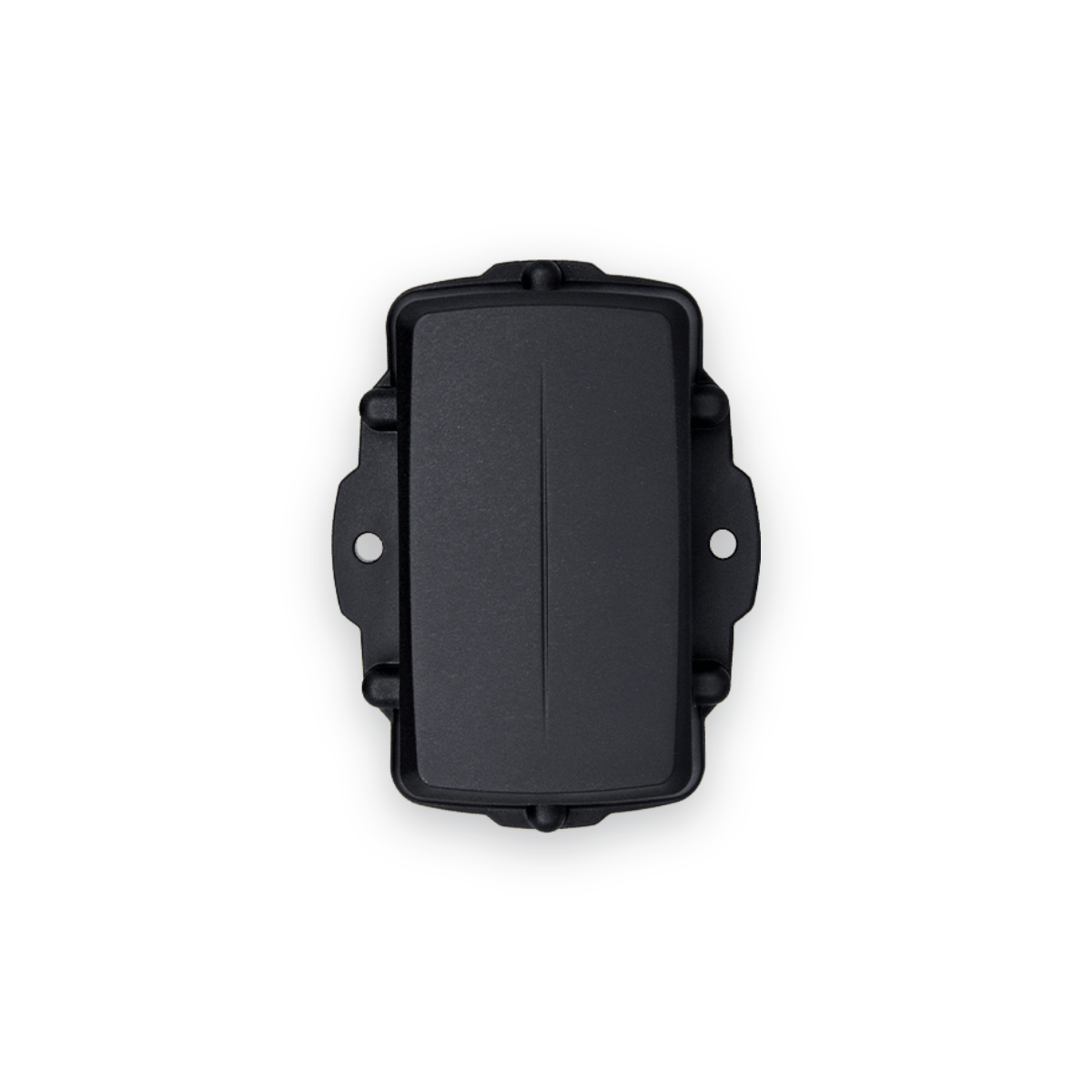

Two mounting holes for screws, bolts or cable ties — on trailers, plant, containers, generators and bins; fit it lid up where you can, and not inside a closed metal box
