CT-V06

Slim Hardwired Vehicle Tracker

Our pick for theft protection: fitted behind the trim where it’s hard for a thief to find, and it keeps reporting if the power is cut.

CT-V06 hardwired vehicle tracker — 10 to 90 volt operating range over a ute, truck and motorcycle on a country road
CT-V06 hardwired vehicle tracker — feature tiles for 4G, positioning, backup battery, alerts, trips and two-wire install

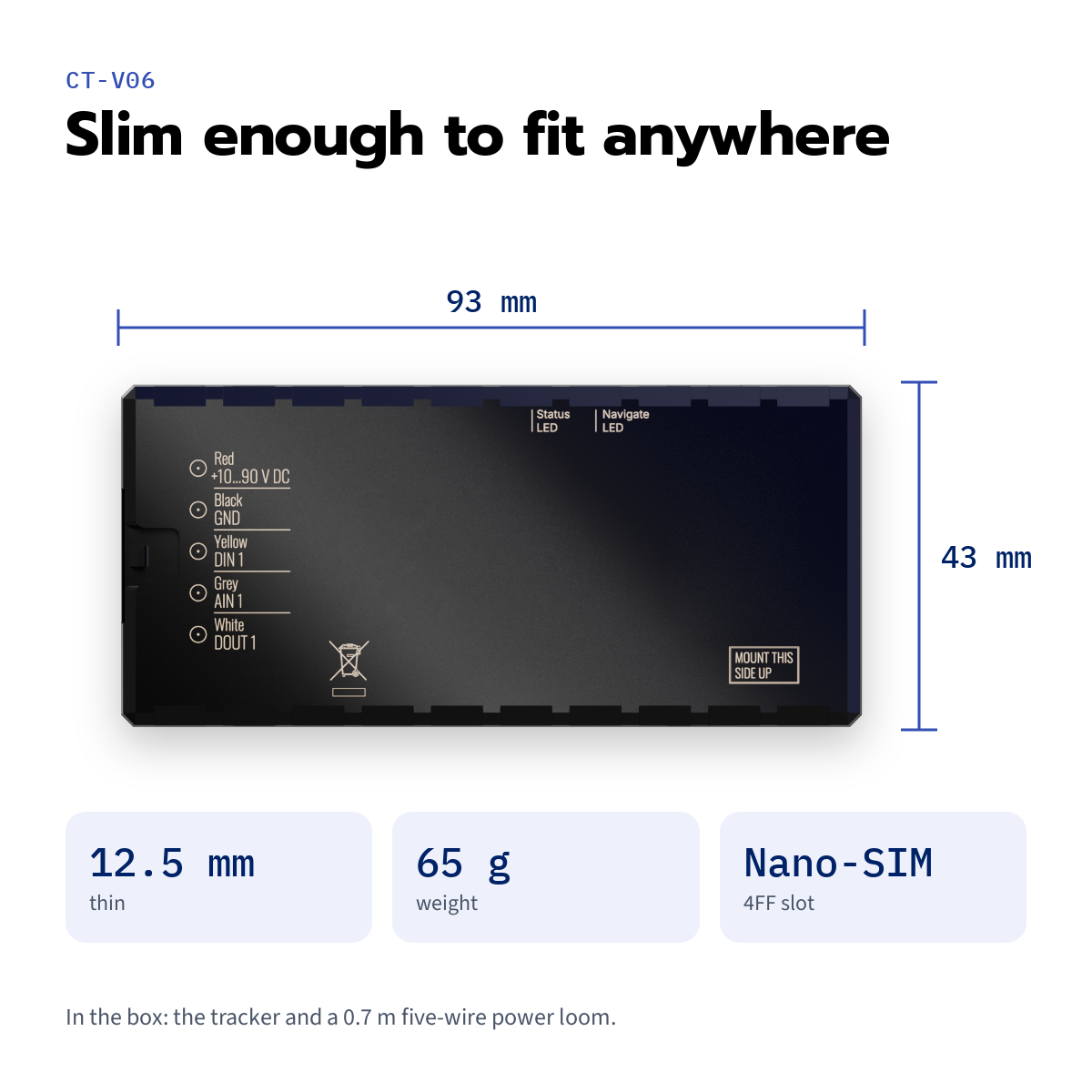

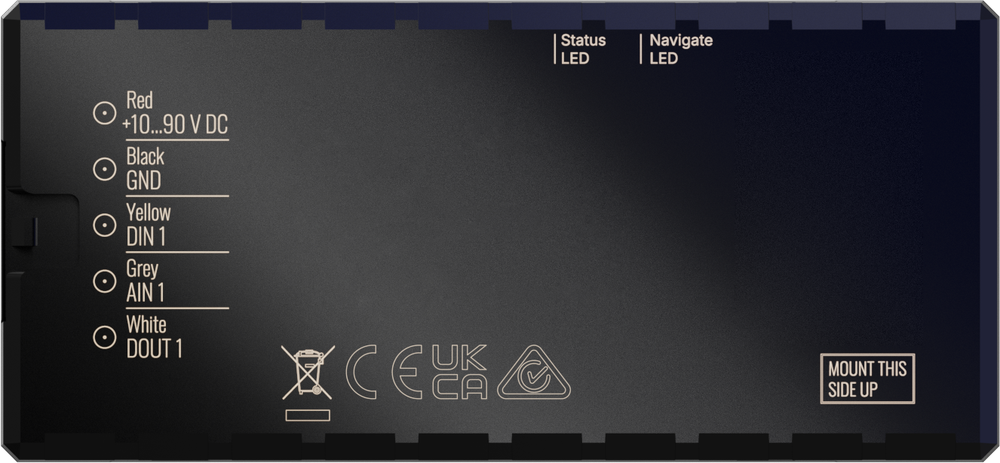

CT-V06 hardwired vehicle tracker — label face marked 93 × 43 mm, 12.5 mm thin, 65 g, Nano-SIM slot

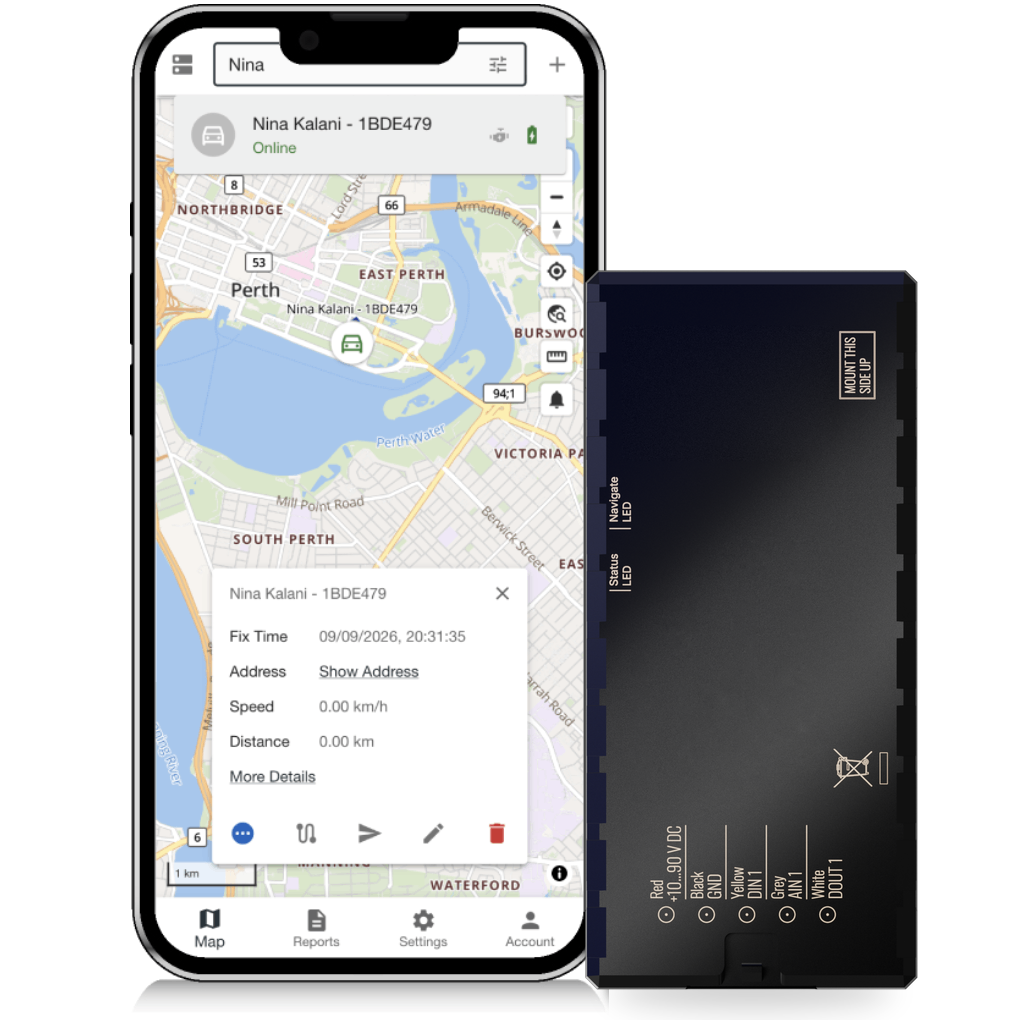

CT-V06 hardwired vehicle tracker beside the platform’s live map on a phone
  • 10–90 V input cars, motorbikes, e-bikes up to 72 V
  • Two-wire install power and ground — DIY or auto electrician
  • Backup battery keeps reporting if power is cut

What you get

Slim Hardwired Vehicle Tracker
$139.00
Telstra + Optus dual-network SIM Rural customers must call to confirm coverage.
Included
Tracking plan · Real-Time (10s updates)
First 12 months
Plan price $100.00 Included
Then $100/yr ($8.33/mo). No minimum term.
Tracking plan · Real-Time (10s updates)
First 12 months
Plan price $120.00 Included
Then $10/mo. No minimum term — cancel any time.
Tracking plan · Power Saver (2 min updates)
First 12 months
Plan price $70.00 Included
Then $70/yr ($5.83/mo). No minimum term.
Tracking plan · Power Saver (2 min updates)
First 12 months
Plan price $84.00 Included
Then $7/mo. No minimum term — cancel any time.
Platform access · no SIM or data
First 12 months
Plan price $50.00 Included
Then $50/yr ($4.17/mo). No minimum term.
Platform access · no SIM or data
First 12 months
Plan price $60.00 Included
Then $5/mo. No minimum term — cancel any time.
Device and platform setup
Included
Delivery (Australia wide)
Free

Total todayTotal today, per tracker incl. GST$139.00

First year included · Real-Time Annual $139.00 then $100/yr ($8.33/mo) from year 2

60-day money-back guarantee24-month warrantyFree delivery, Australia wide

Plan details

Renews at $100/yr ($8.33/mo) from year 2 until you cancel. No minimum term. Minimum total cost $139.00. Subscription policy · Refund policy.

Renews at $50/yr ($4.17/mo) from year 2 until you cancel. Covers this tracker only. No minimum term. Minimum total cost $139.00. Subscription policy · Refund policy.

Prices in AUD, GST included.

Bringing your own SIM, or want the tracker on its own?

Pick your plan

Tracking plan

Your first year is included either way. This is the plan that carries on after it, billed yearly.

Your first year is included either way. This is the plan that carries on after it, billed monthly.

On a 4-minute drive: Real-Time 48 positions, Power Saver 3.

Not locked to this choice: you can switch to the other plan later as a self-serve subscription.

Not sure it’s this one? See the other ways to fit it

Why this one

Power

10–90 V

Covers 12 V and 24 V vehicles, and e-bikes and e-scooters up to 72 V.

Fitting

Just two wires

Power and ground are all it needs — DIY or auto electrician.

Backup

Keeps reporting

A 170 mAh backup battery keeps it reporting if the power is cut.

Our pick

Theft protection

Fitted behind the trim where it’s hard for a thief to find, with an optional starter-cut relay an auto electrician fits. Alerts cover towing, power cuts, jamming and crashes.

Accuracy

Under 1.8 m

GPS, GLONASS, Galileo and BeiDou work together.

Network

4G LTE

Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.

Size

93 × 43 mm

12.5 mm thin, 65 g — slim enough to fit neatly behind the dash.

The platform on a phone: a live map with one tracker selected and its details below

The platform

See where it is, from your phone or computer

One platform for every tracker, hosted in Melbourne, Australia. It’s included with every monthly and yearly data plan.

  • Live map
  • Alerts
  • Trip history
  • PDF reports

See what the platform does

The detail

Everything else, if you want it.

Size
93 × 43 × 12.5 mm
Weight
65 g
Network
4G LTE Cat 1
Power source
10–90 V
SpecificationsPower, network, tracking, wiring

Specifications

Full hardware spec published

Power & install
Power sourceHardwired, 10–90 V — cars, utes, trucks, buses, motorbikes, and e-bikes and e-scooters up to 72 V
InstallationQuick two-wire install, power and ground — DIY or auto electrician
Size93 × 43 × 12.5 mm, 65 g — slim enough to fit neatly behind the dash
Battery
Backup battery170 mAh — keeps reporting if power is cut
Network
Network4G LTE Cat 1
BandsLTE-FDD B1/B3/B5/B7/B8/B20/B28
SIMOurs — works across both the Telstra and Optus mobile networks — or bring your own
SIM sizeNano-SIM (4FF)
Tracking & alerts
PositioningGPS, GLONASS, Galileo and BeiDou — accurate to under 1.8 m
Update rate10-second updates on Real-Time, 2-minute on Power Saver
IgnitionSensed from battery voltage or movement, set up for your vehicle — or fit the optional ignition wire
AlertsIgnition, crash, jamming, power-cut, over-speed, excessive idling, and tow on most vehicles (e-bikes, hybrids and EVs need the optional ignition wire for it)
ExtrasEco-driving analysis, trips, auto geo-fence — stores positions through coverage blackspots
Inputs & outputs

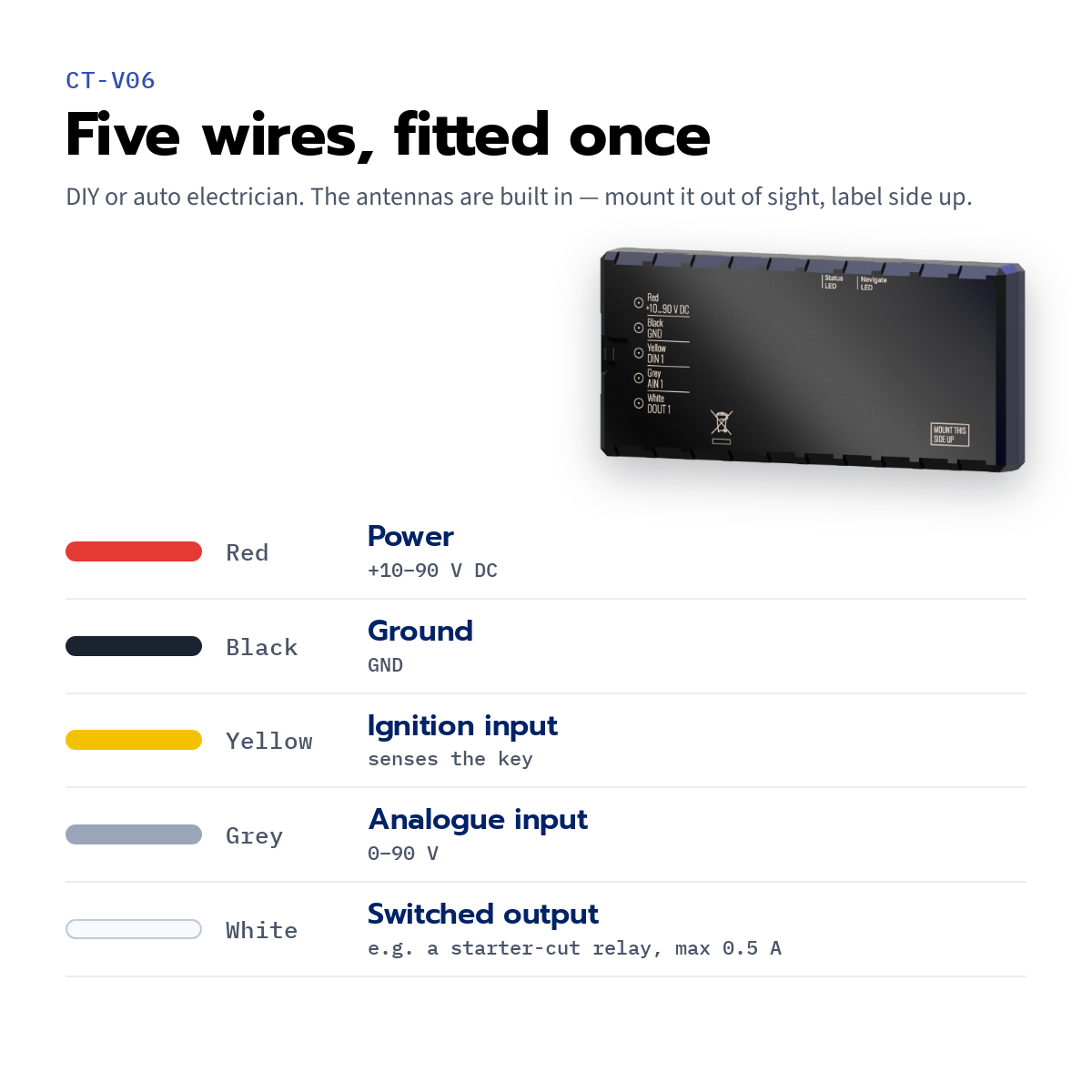

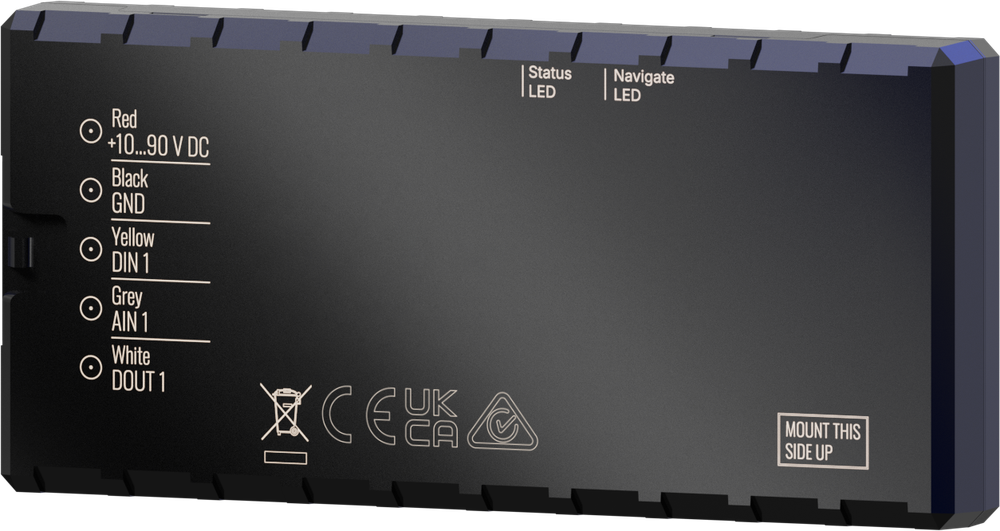

WiringPower and ground; optional ignition input, analogue input and one switched output
OutputCan drive a starter-cut relay — relay not included, fitted by an auto electrician
Mounting

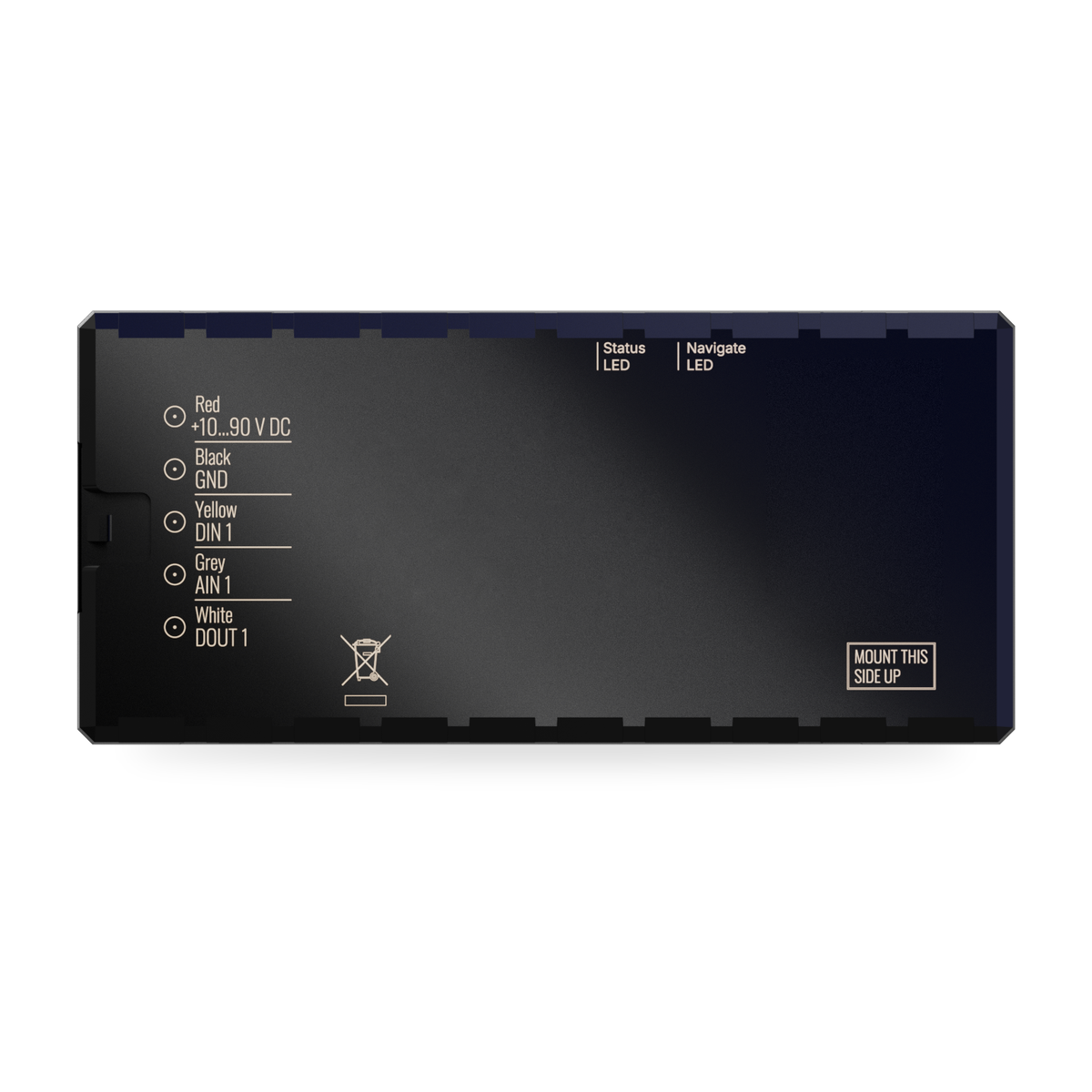

MountingFitted inside the cabin, label side up — the antennas are built in
Environment
Operating range0 °C to 45 °C with its backup battery fitted (as supplied) — IP41, for interior fitting
Compliance
Standards Meets Australian standards · RCM-marked (Regulatory Compliance Mark)
Plans and SIMs it works withBoth plans, or your own SIM

What this tracker works with

Plan or platform Works? Notes
Power Saver plan — $7/mo 2-minute updates. Annual plan $70/yr ($5.83/mo) — two months less than paying monthly.
Real-Time plan — $10/mo 10-second updates. Annual plan $100/yr ($8.33/mo) — two months less than paying monthly.
BYO SIM + data Any active Australian 4G SIM with data.
Platform access Included with a monthly or yearly plan, or add platform access on its own — not when the tracker is bought on its own.
Set-up and fittingTwo wires behind the dash. Fit it yourself if you’re comfortable with vehicle wiring; otherwise it’s a quick job for an auto electrician. A starter-cut relay is always theirs to fit.

Install guides

The full descriptionFor the readers

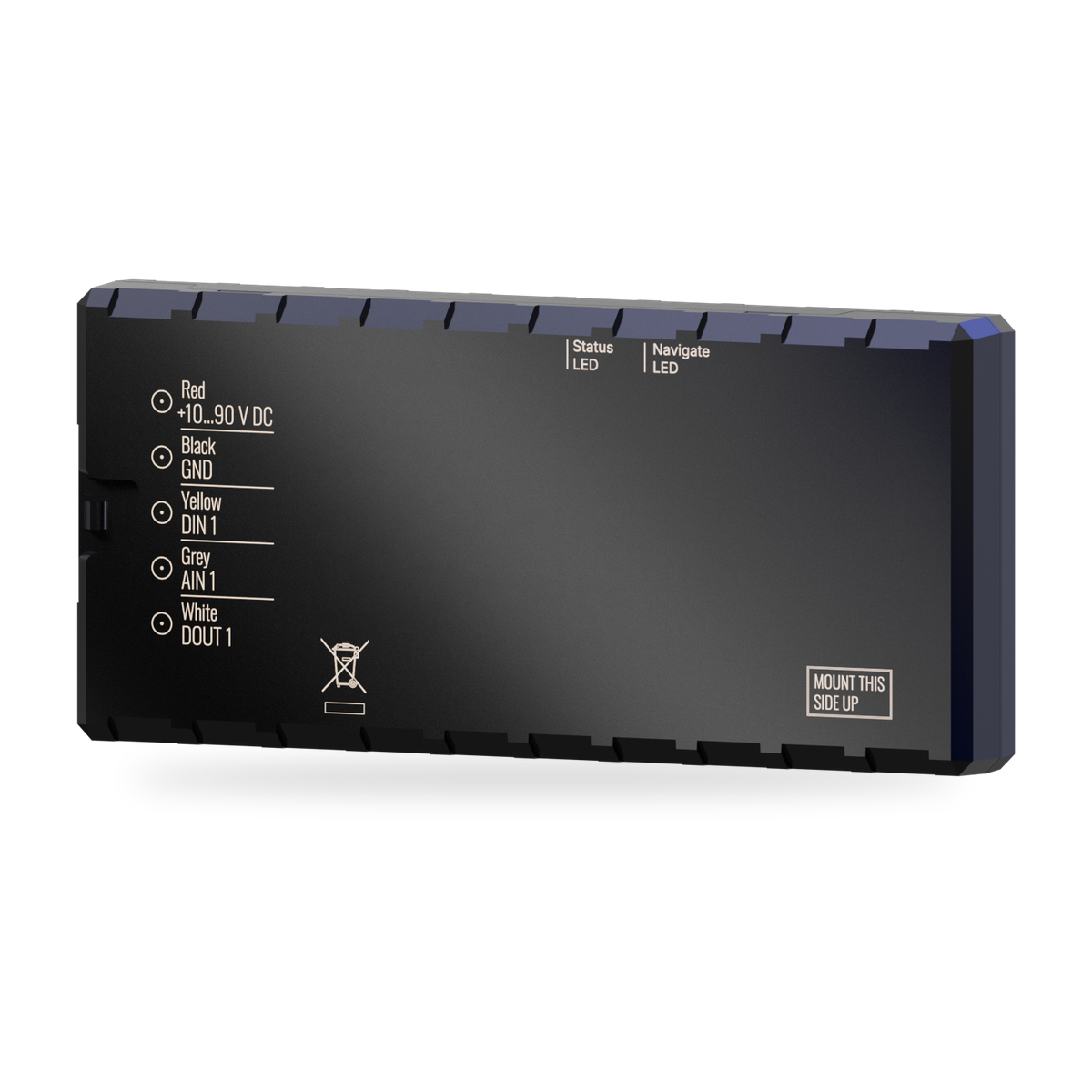

CT-V06 is a slim hardwired 4G GPS tracker for cars, utes, trucks, buses, motorbikes and e-bikes. Its 10–90 V input covers 12 V and 24 V vehicles, and e-bikes and e-scooters up to 72 V, and at 93 × 43 × 12.5 mm it fits neatly behind the dash, out of a thief’s reach.

It installs quickly with just two wires: power and ground are all it needs. It senses ignition from the battery voltage or from movement, and we set it up for your vehicle before it ships or over the mobile network, so just tell us what it’s going in.

Three more wires are there if you want them. The ignition input reads the key directly, for exact trips and idling times whatever the voltage, and for tow alerts on vehicles whose battery voltage can’t show they’re running, such as e-bikes. There’s also an analogue input, and a switched output that can drive a starter-cut relay (relay not included; fitted by an auto electrician).

GPS, GLONASS, Galileo and BeiDou work together for positions accurate to under 1.8 m, and alerts cover towing, crashes, jamming, power cuts, over-speed and excessive idling. A 170 mAh backup battery keeps it reporting if the power is cut, and positions are stored through coverage blackspots and sent once it’s back in range.

Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.

Fitting it yourself? Install guides
