Fitting
Two wires. Anyone can fit it.
straight off a 12 V or 24 V battery (10–30 V)
Two wires with fork terminals onto the battery terminals. The tape on its back holds it on top of the battery, facing the sky for the best GPS signal.
CT-V09Battery-Mount
4G GPS Rugged Battery-Mount Vehicle Tracker (CT-V09)
Two wires onto the 12 V or 24 V battery of a car, ute, truck or caravan, and a motorbike GPS tracker for a motorcycle with a 12 V battery.
Order summary
- Rugged Battery-Mount Vehicle Tracker
- $149.00
- Tracking plan (first year included – Real-Time)
- $0.00
- Then $100/yr ($8.33/mo). Renews yearly until you cancel.
- Tracking plan (first year included – Real-Time)
- $0.00
- Then $10/mo. No minimum term — cancel any time.
- Tracking plan (first year included – Power Saver)
- $0.00
- Then $70/yr ($5.83/mo). Renews yearly until you cancel.
- Tracking plan (first year included – Power Saver)
- $0.00
- Then $7/mo. No minimum term — cancel any time.
- Platform access (first year included – no SIM or data)
- $0.00
- Then $50/yr ($4.17/mo). Renews yearly until you cancel.
- Platform access (first year included – no SIM or data)
- $0.00
- Then $5/mo. No minimum term — cancel any time.
- Delivery (Australia wide)
- Free
Total todayTotal today, per tracker incl. GST$149.00
Renews at $100/yr ($8.33/mo) from year 2 until you cancel. No minimum term. Minimum total cost $149.00. Subscription policy · Refund policy.
Renews at $50/yr ($4.17/mo) from year 2 until you cancel. Covers this tracker only. No minimum term. Minimum total cost $149.00. Subscription policy · Refund policy.
First year included · Real-Time Annual
Quantity
Couldn't load pickup availability
Prices in AUD, GST included.
60-day money-back guarantee 24-month warranty
- Free delivery, Australia wide
- No minimum term
Bringing your own SIM, or want the tracker on its own?
- Two wiresanyone can fit it
- Under 1.5 mdual-band GPS (L1 + L5)
- Keeps reportingif the vehicle battery is disconnected

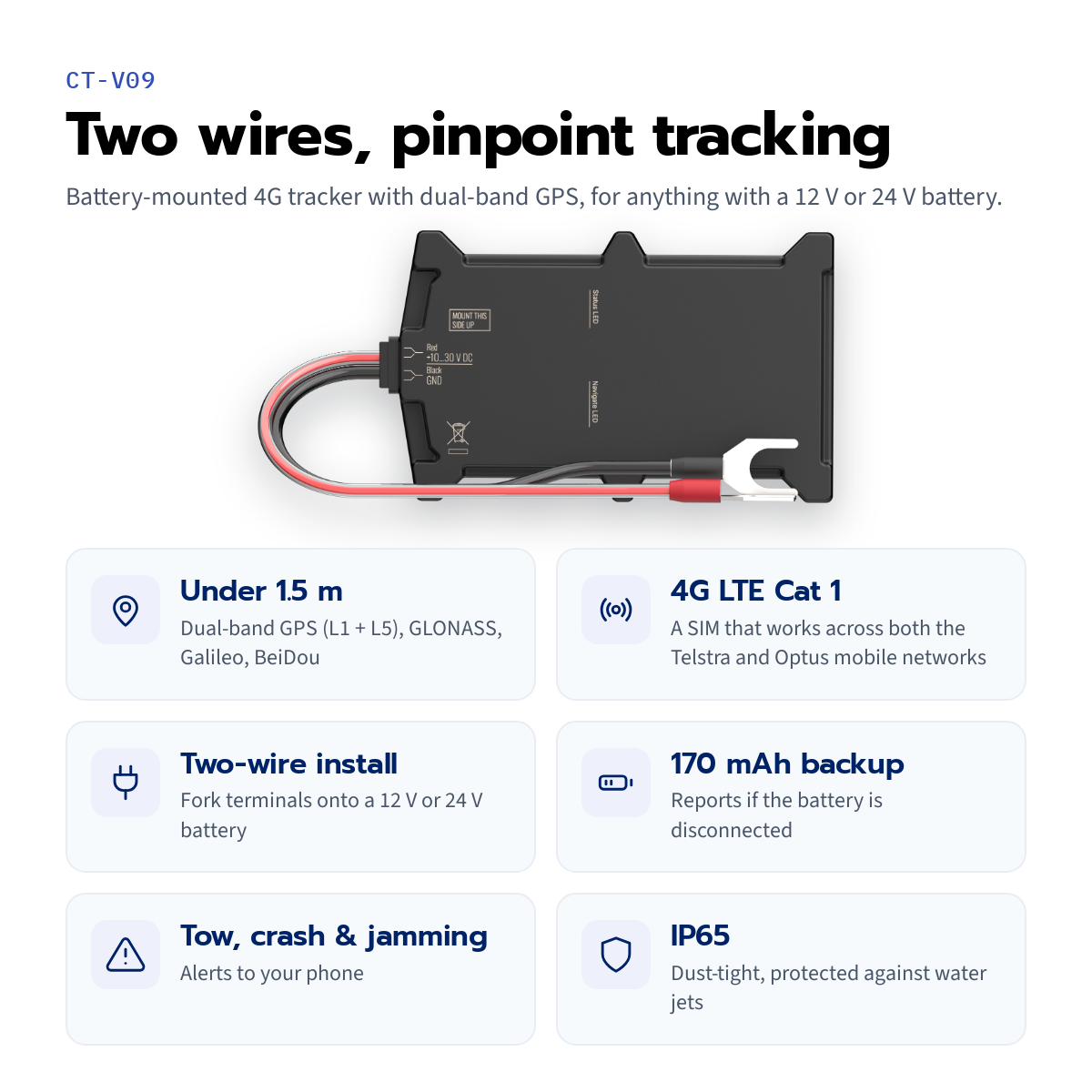

Why this one
Alerts
Tow, crash and jamming alerts
Alerts cover towing, crashes, jamming, battery disconnection, over-speed and excessive idling.
Accuracy
Under 1.5 m
Dual-band GPS (L1 + L5) works with GLONASS, Galileo and BeiDou.
Weather
Rated IP65
Dust-tight and protected against water jets, but not made to go under water.
Backup
Keeps reporting
A 170 mAh backup battery keeps it reporting if the battery is disconnected.
Network
4G LTE
Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.
Size
92.5 × 57.6 mm
14 mm thin and 63 g.

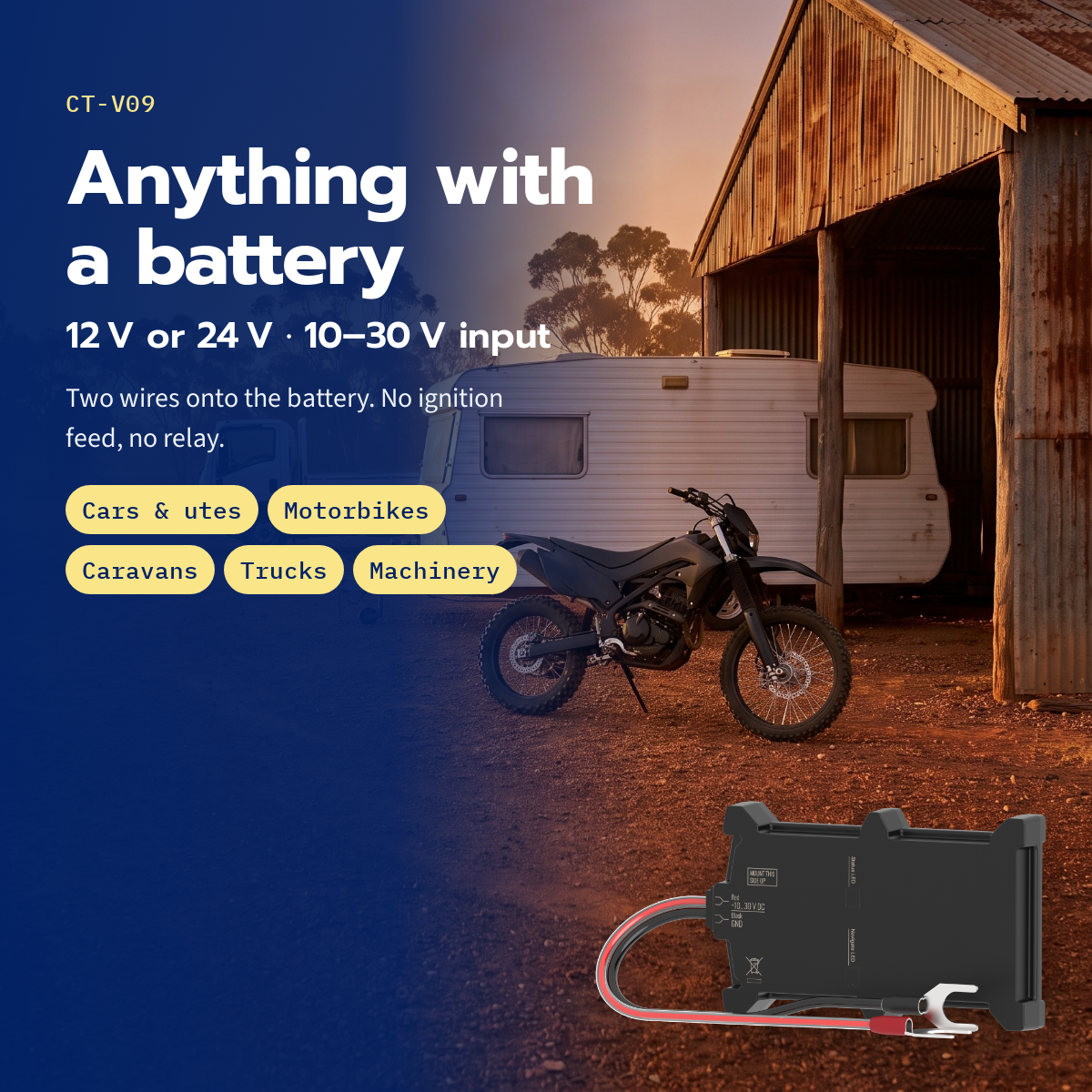

Where it goes
Anything with its own battery
Straight off a 12 V or 24 V battery (10–30 V).
- Cars
- Utes
- Trucks
- Motorbikes
- Caravans
- Machinery
The platform

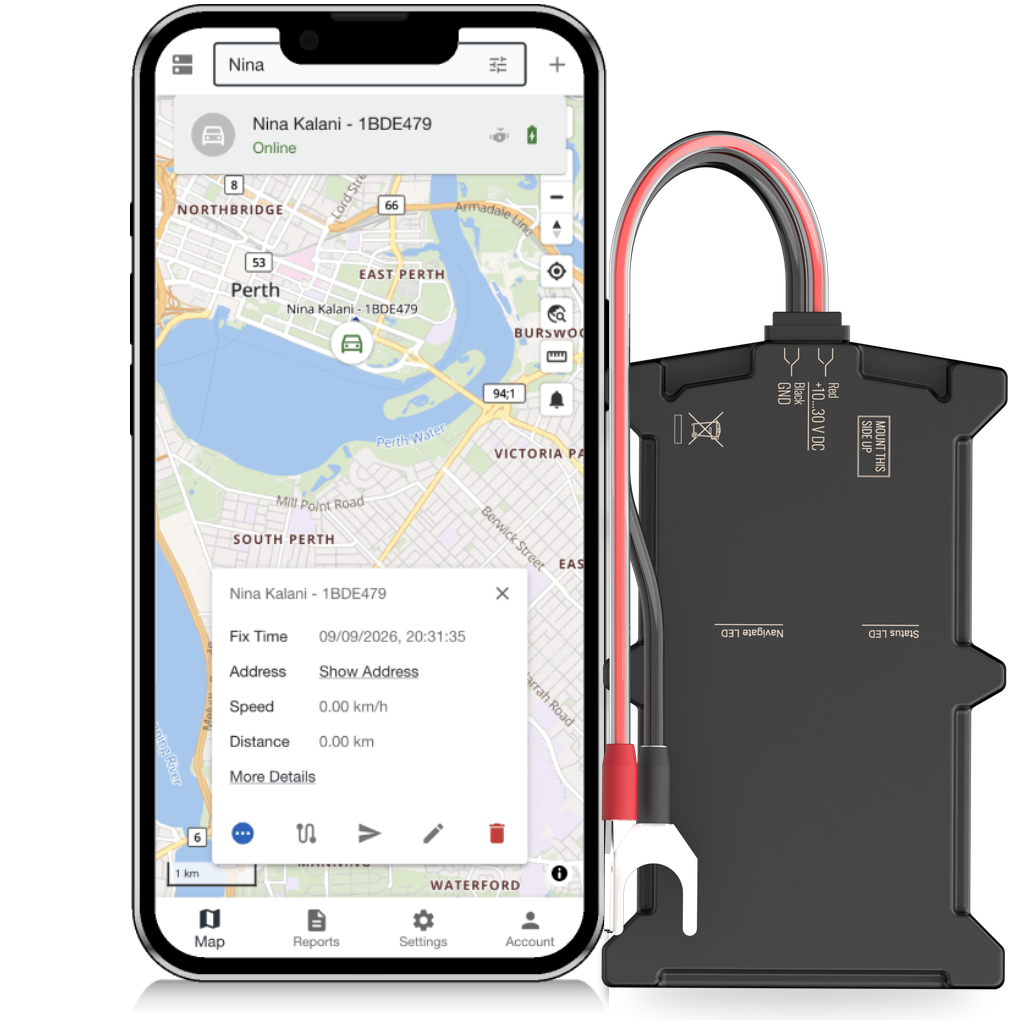

See where it is, from your phone or computer
One platform for every tracker, hosted in Australia. It’s included with every monthly and yearly data plan.
- Live map
- Alerts
- Trip history
- PDF reports
The detail
Everything else, if you want it.
- Size
- 92.5 × 57.6 × 14 mm
- Weight
- 63 g
- Network
- 4G LTE Cat 1
- Weather rating
- IP65
SpecificationsPower, backup battery, network, tracking
Specifications
Full hardware spec published
| Power & install | |
|---|---|
| Power source | Straight off a 12 V or 24 V battery (10–30 V) — cars, utes, trucks, motorbikes, caravans and machinery |
| Suits | Anything with its own battery — no ignition feed or relay needed, so a caravan or a motorbike is as easy as a ute |

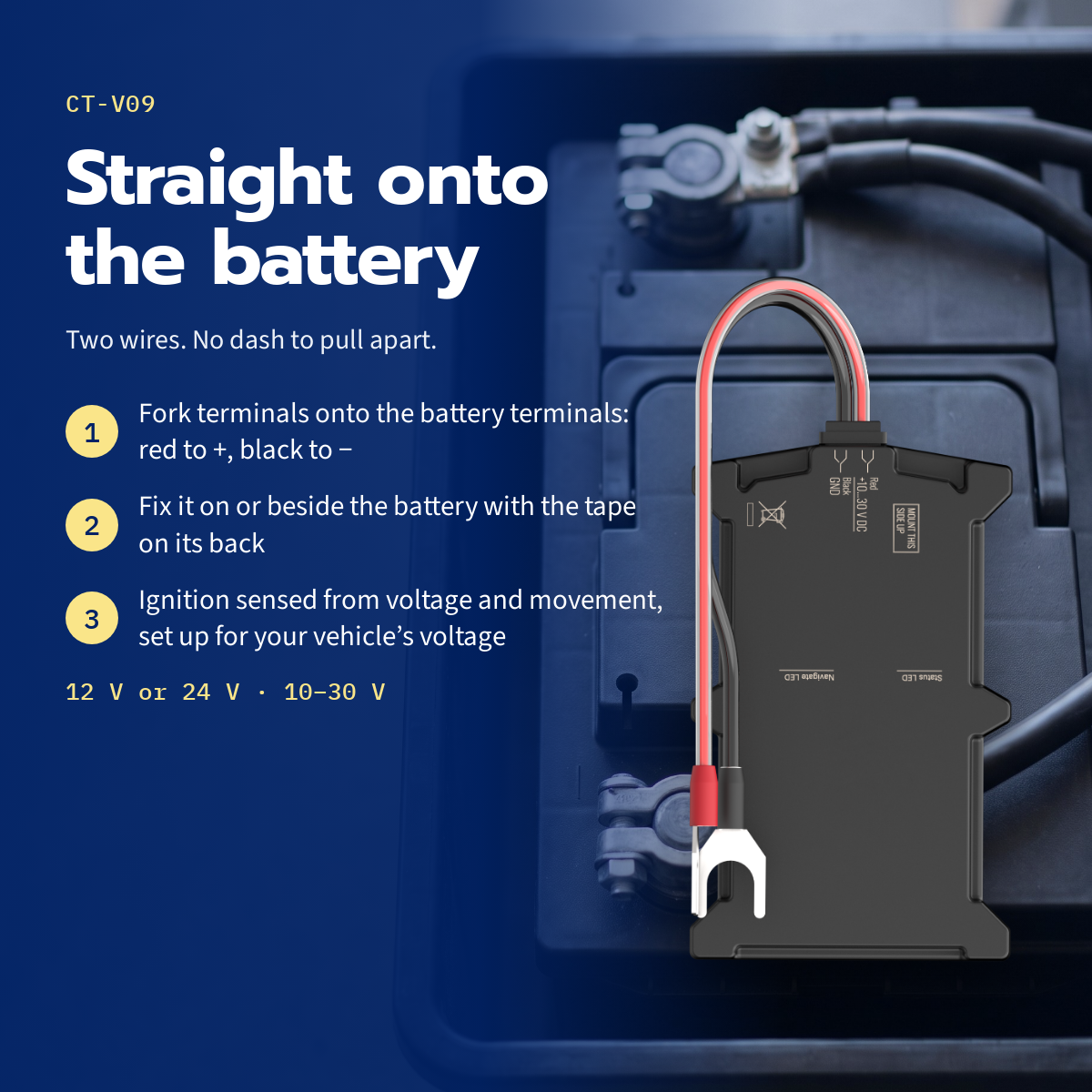

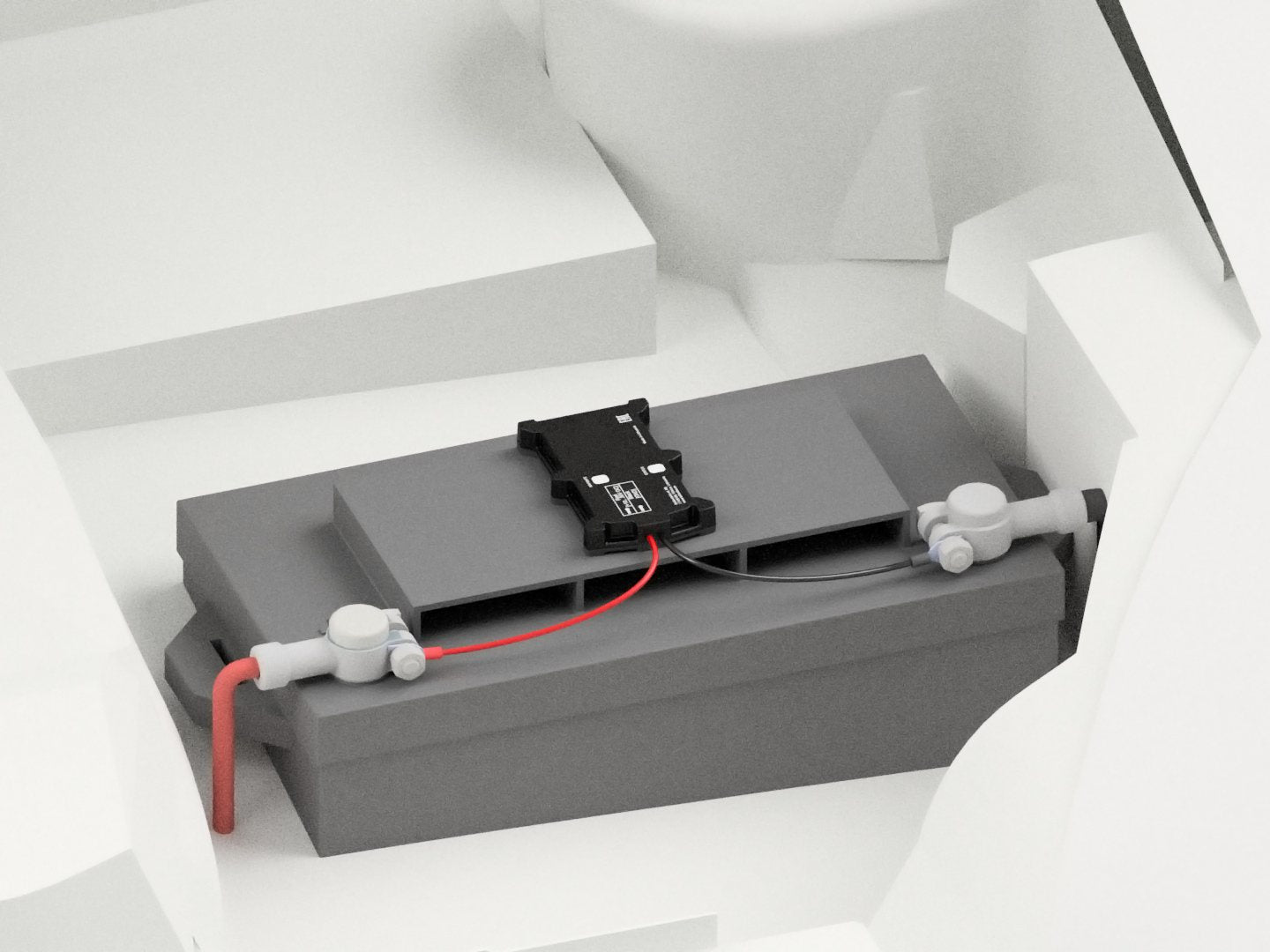

| Installation | Two wires with fork terminals onto the battery terminals — the tape on its back fixes it on top of the battery, the side marked “Mount this side up” facing the sky for the best GPS signal; if the battery sits in a metal box, on top of the box instead, as metal can block the signal |

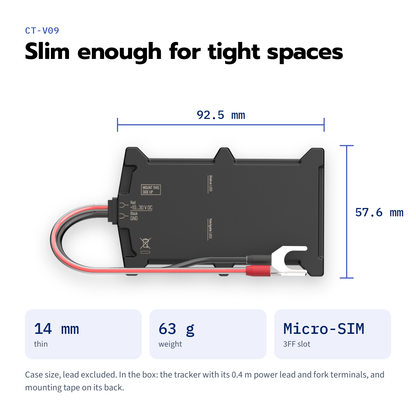

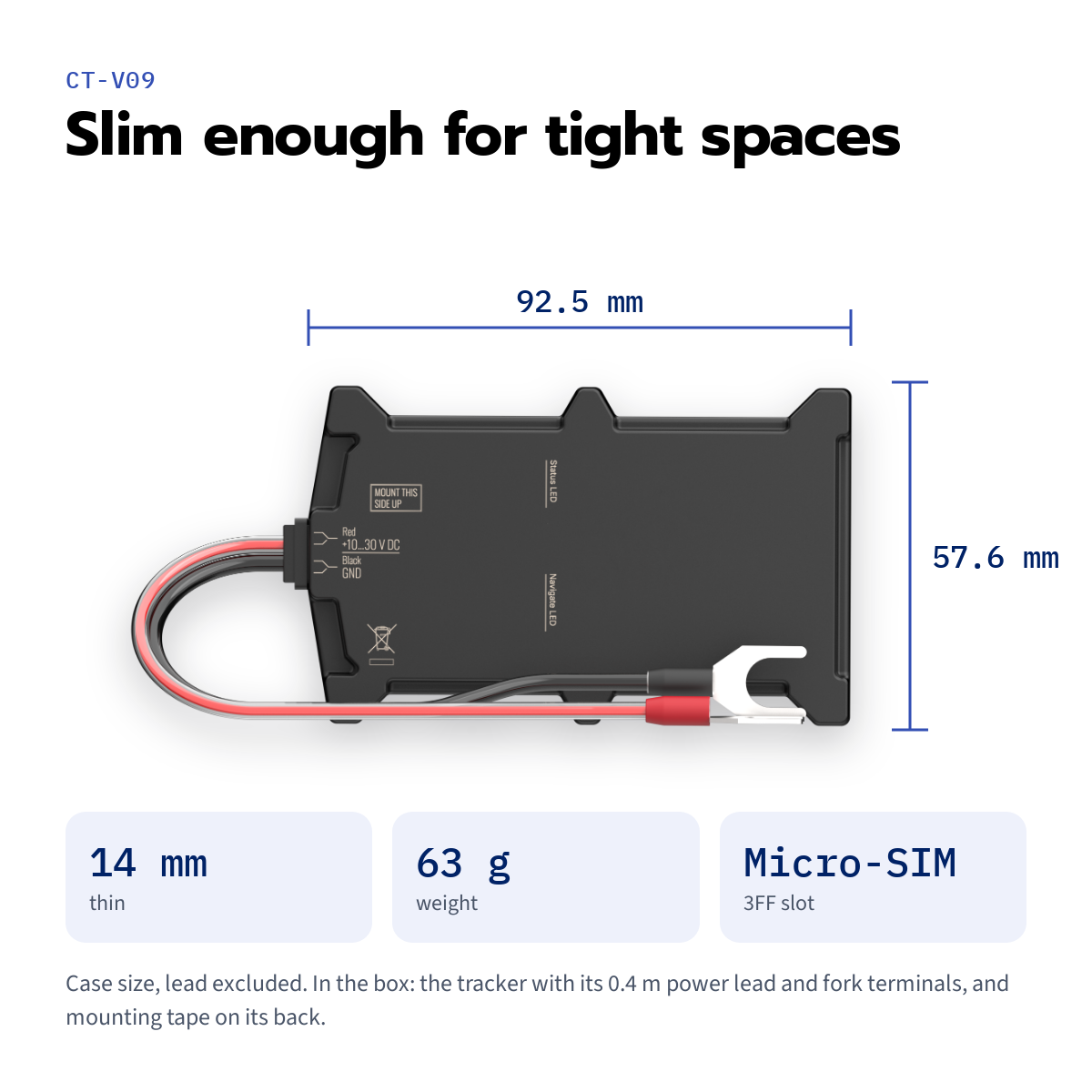

| Size | 92.5 × 57.6 × 14 mm, 63 g |
| Battery | |
| Backup battery | 170 mAh — keeps reporting if the vehicle battery is disconnected |
| Standby draw | Under 5.5 mA in its deepest sleep, under 40 mA while active (at 12 V) |
| Network | |
| Network | 4G LTE Cat 1 |
| Bands | LTE-FDD B1/B3/B5/B7/B8/B20/B28 |
| SIM | Ours — works across both the Telstra and Optus mobile networks — or bring your own |
| SIM size | Micro-SIM (3FF) |
| Tracking & alerts | |
| Positioning | Dual-band GPS (L1 + L5) with GLONASS, Galileo and BeiDou — accurate to under 1.5 m |
| Update rate | 10-second updates on Real-Time, 2-minute on Power Saver |
| Ignition | Sensed from battery voltage and movement — no ignition wire to run; we set it up for your vehicle’s voltage |
| Alerts | Tow, crash, jamming, battery-disconnect, over-speed, excessive idling |
| Extras | Eco-driving analysis, trips, auto geo-fence — stores positions through coverage blackspots |
| Mounting | |

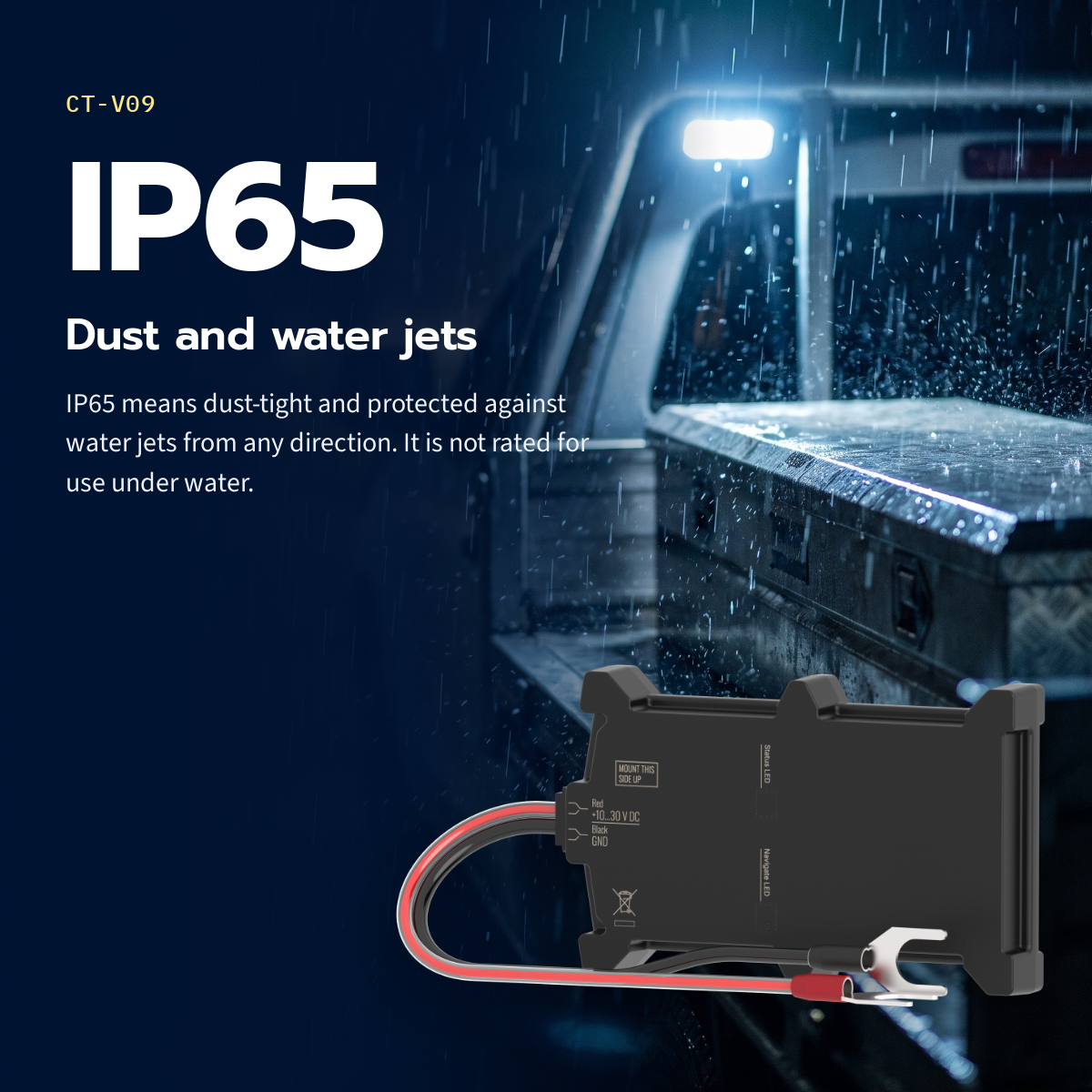

| Weather rating | IP65 — dust-tight and protected against water jets; not for use under water |
| Environment | |
| Operating range | –40 °C to 85 °C for the tracker itself; 0 °C to 40 °C with its small backup battery fitted (as supplied), and engine-bay heat wears that battery sooner |
Plans and SIMs it works withBoth plans, or your own SIM
What this tracker works with
| Plan or platform | Works? | Notes |
|---|---|---|
| Power Saver plan — $7/mo | Yes | 2-minute updates. Annual plan $70/yr ($5.83/mo) — two months less than paying monthly. |
| Real-Time plan — $10/mo | Yes | 10-second updates. Annual plan $100/yr ($8.33/mo) — two months less than paying monthly. |
| BYO SIM + data | Yes | Any active Australian 4G SIM with data, in Micro-SIM (3FF) size. |
| Platform access | Yes | Included with a monthly or yearly plan, or add platform access on its own — not when the tracker is bought on its own. |
Set-up and fittingTwo wires onto the battery terminals: a spanner is all you need, and anyone can fit it.
Install guides
What's included
What's included

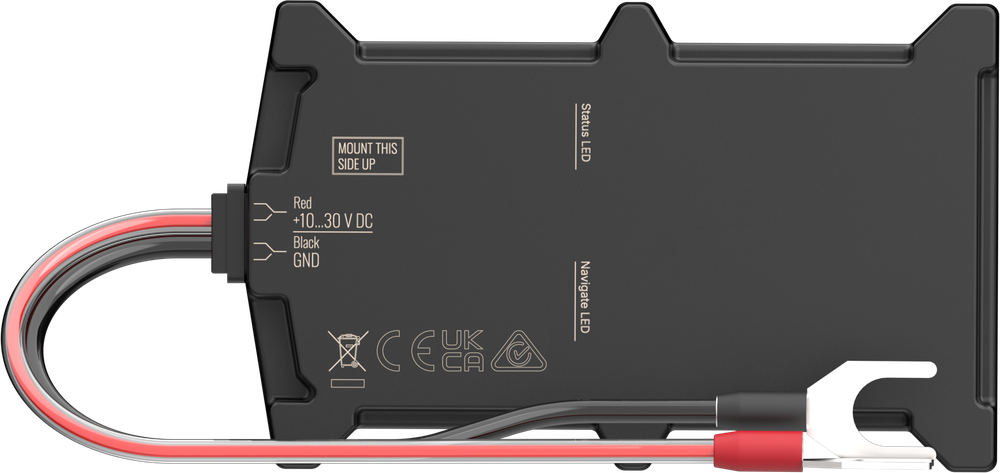

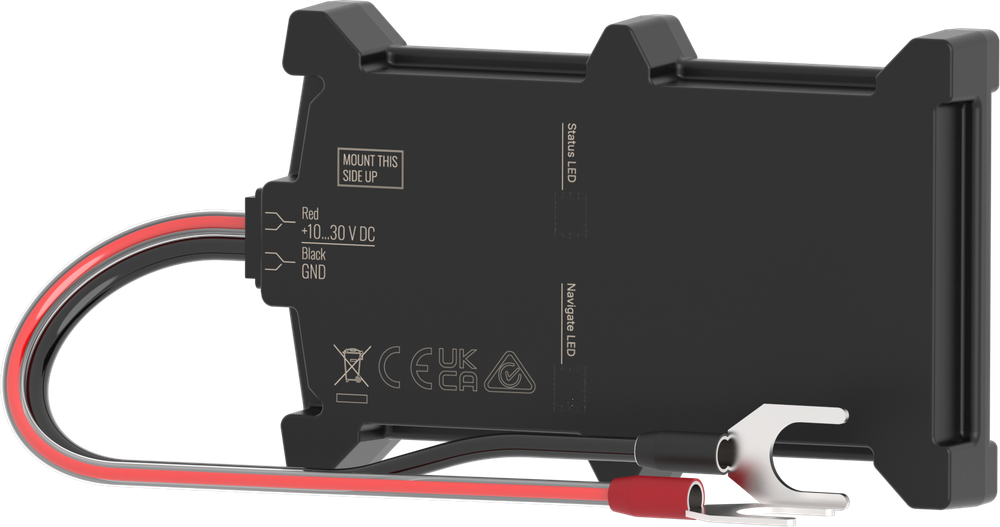

- Tracker, with its power lead attached (two wires with fork terminals)
- Double-sided tape, already on the tracker’s back
Bought with a data plan, the tracker arrives with our SIM already fitted and activated, so no loose SIM comes with it.
Delivery, returns and warrantyFree delivery · 60 days · 24 months
- Free delivery, Australia wide.
- 60-day money-back guarantee.
- 24-month warranty.
- Australian stock, shipped and supported by us: 0413 418 743, Mon–Fri 8am–6pm AWST.
The full descriptionFor the readers

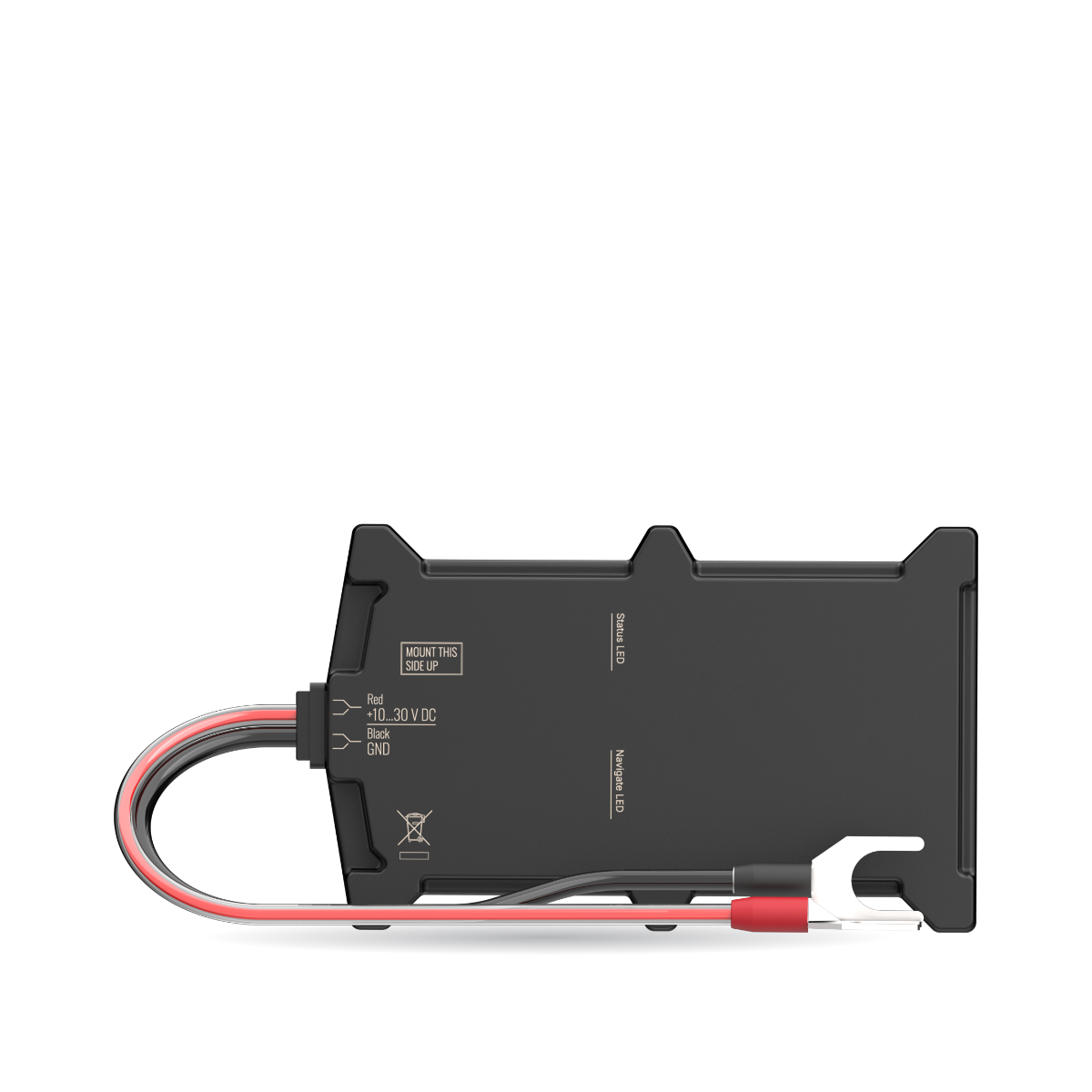

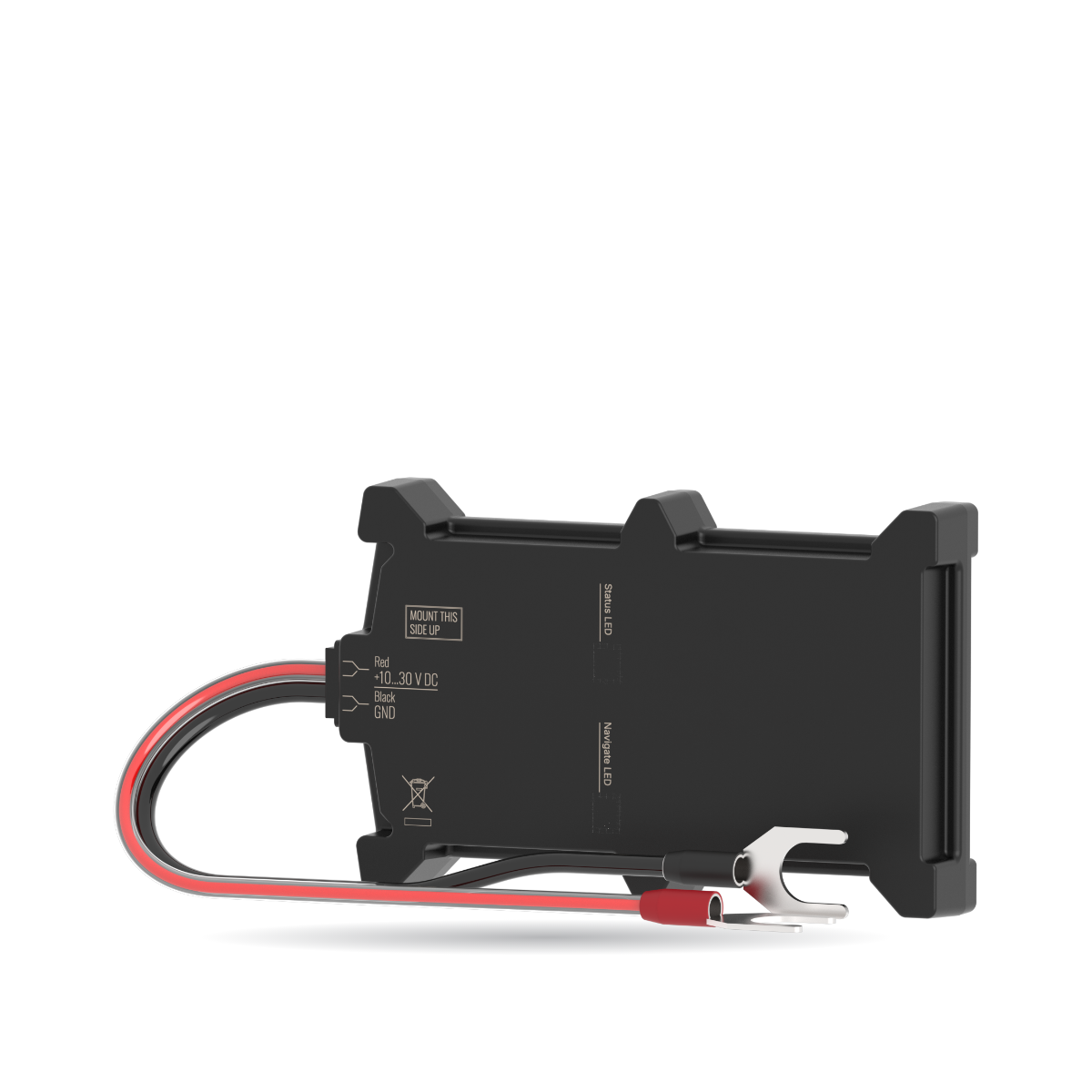

CT-V09 is a slim 4G GPS tracker that connects straight to a 12 V or 24 V battery: two wires with fork terminals onto the battery terminals, and the tape on its back fixes it on top of the battery, facing the sky for the best GPS signal. If the battery sits in a metal box, fit the tracker on top of the box instead: metal can block the signal. There’s no ignition wire to find and no relay to fit, so a caravan, a motorbike, a truck or a piece of machinery is as easy to track as a car or a ute. It also works as a motorbike GPS tracker on a motorcycle with a 12 V battery. If the bike is stolen, a movement alert and a live trail on the map give you and the police a head start on getting it back.
Dual-band GPS (L1 + L5) works with GLONASS, Galileo and BeiDou for positions accurate to under 1.5 m, a cleaner track and a quick first fix. It senses ignition from battery voltage and movement, and we set it up for your vehicle’s voltage. Alerts cover towing, crashes, jamming, battery disconnection, over-speed and excessive idling. A 170 mAh backup battery keeps it reporting if the battery is disconnected, and positions are stored through coverage blackspots and sent once it’s back in range.
The case is 14 mm thin, weighs 63 g and is rated IP65: dust-tight and protected against water jets, but not made to go under water.
Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.
Fitting it yourself? Install guides
