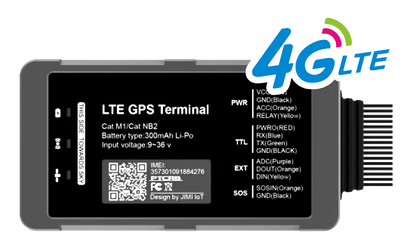

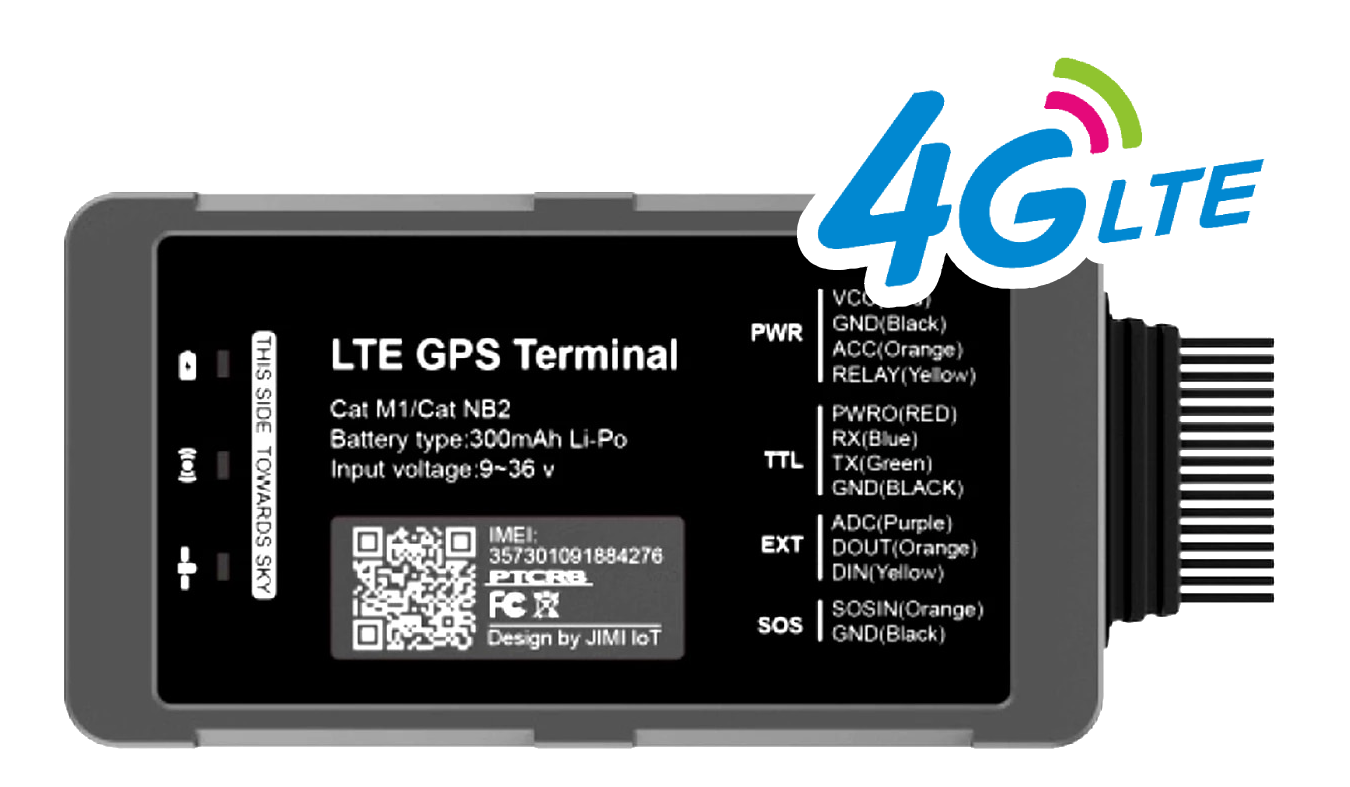

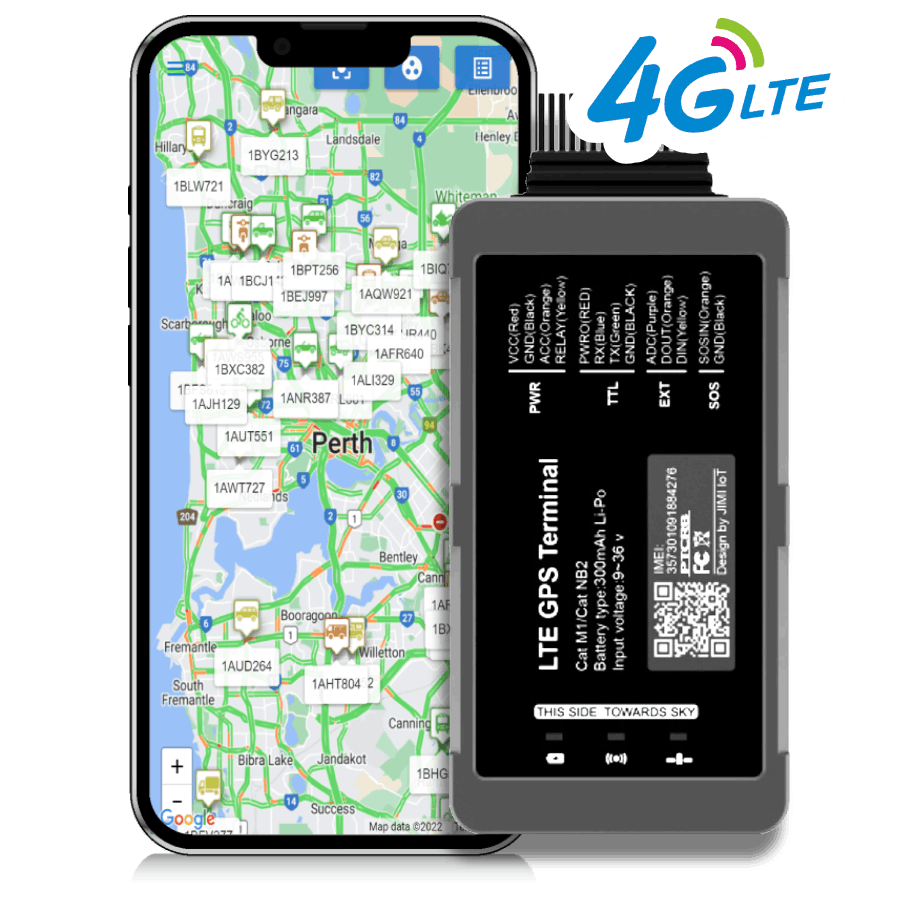

4G GPS Wired Vehicle Tracker (CT-V02)
4G GPS Wired Vehicle Tracker (CT-V02)
*** THIS PRODUCT IS AVAILABLE FOR SPECIAL ORDER ONLY ***
*** We don't keep this product in stock - lead time approx. 21 days ***
The CT-V02 is designed to handle industrial and commercial fleet applications ranging from rental agencies and public transportation to construction equipment and beyond. With ACC detection, SOS button, remote fuel/power cutoff, and various other I/Os for peripherals, this powerful device can be customized to streamline your operations and boost efficiency. Built with a cutting-edge communications module leveraging the Cat-M1/Nb-IoT networks with GSM fallback, the CT-V02 will be helping to maximize your fleet operations for years to come.
This product is the successor of the GT06E.
SIM Providers supported: Telstra.
Share
Highlights
-
What we offer
Connect to the 4G Network
By using a device that utilises the 4G mobile network, you can retrieve accurate GPS data with lightning speed & won’t become outdated any time soon.

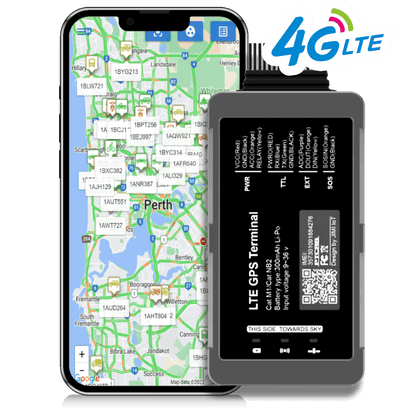

FREE licence to our Open Standard tracking platform
Your tracker comes with a FREE licence and NO contracts. It’s compatible with all desktop and mobile devices, including Apple and Android devices.
FREE SIM Card
A SIM Card is required for all GPS Trackers. They ARE included FREE with your tracking device purchase.
Australian Platform
Our tracking platforms are hosted within Australia, by us, which means your data remains in Australia.
Pre-Configuration
Your tracker and platform access will be pre-configured, so your device is ready to go once you receive it.
Track Multiple Devices
Our platform allows you to track multiple assets and/or vehicles simultaneously. Perfect for both individuals and fleets. -
Tracker features
Internal Battery
The built in 300mAh battery will keep the device running when the vehicle’s main battery is disconnected and alert the owner. It has sufficient power to continue tracking for up to 10 minutes in the event the vehicle’s battery is disconnected.
Internal Memory
Should the tracker lose 4G signal the device will memorise the GPS data and upload the signal once it establishes a connection with the 4G network again.
Remote Cut-Off
The 4G GPS tracker supports remote cut-off to the fuel and power to better protect the car should the unthinkable happen and your vehicle is stolen. The platform allows you to not only track your vehicle but disable it should you need to.
Ignition Detection
Always keeps you informed of the ACC status of your vehicle. (The vehicle ACC status represents the starting and stopping status of your vehicle).
Panic Button
In the event of an emergency, the SOS button can be used to send an SMS and/or Platform notification to specific mobile phone numbers.
Specifications
-
Global Navigation Satellite System (GNSS)
Positioning system: GPS+LBS
Frequency: L1
Positioning accuracy:<2.5m CEP
Tracking sensitivity: -165dBm
Acquisition sensitivity: -148dBm
TTFF (open sky) Avg. hot start: ≤1sec
TTFF (open sky) Avg. cold start: ≤32sec
-
Cellular
Communication network: LTE/GSM
Frequency:
LTE Cat-M1/NB2: B1/B3/B5/B8/B18/B19/B20/B26
GSM: 850/900/1800/1900 MHz -
Power
Battery: 300mAh/3.7V industrial-grade Li-Polymer battery
Input voltage: 9-36VDC
-
Interface
LED indication: GNSS (Blue), Cellular (Green), Power (Red)

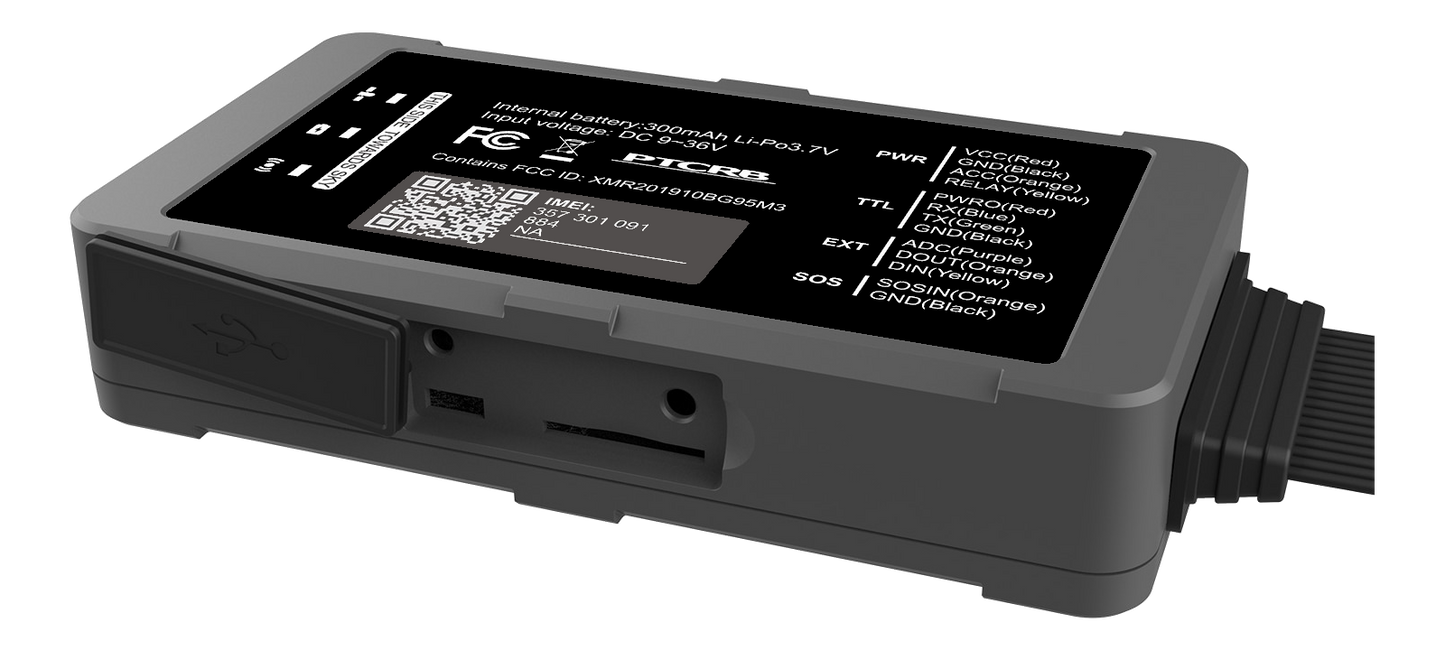

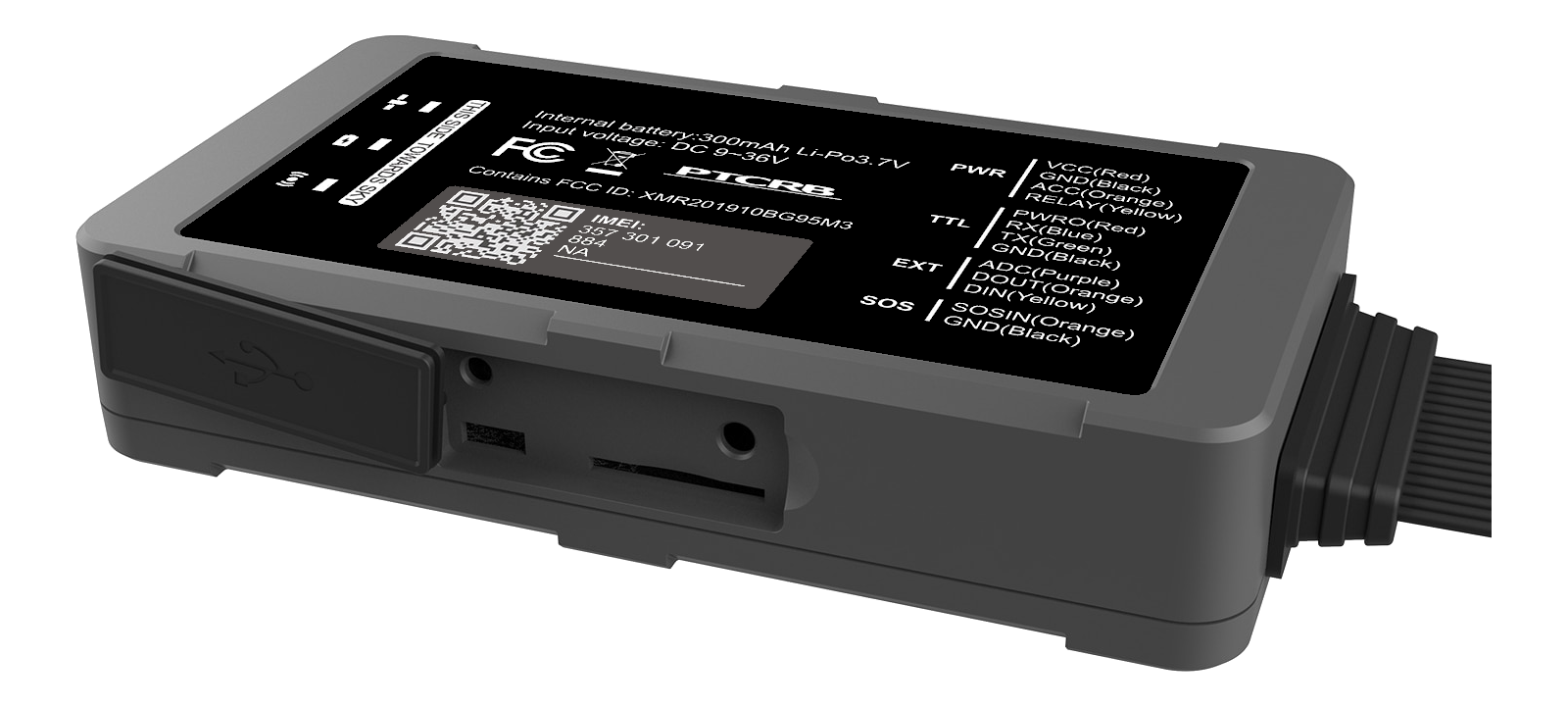

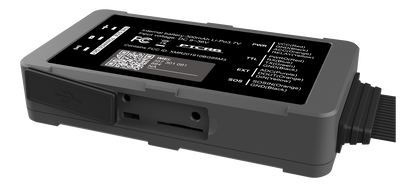

SIM: Standard-SIM
Data storage: 32+32Mb
Digital inputs: ACC, SOS, input
Digital outputs: Relay, output
-
Physical specification
Dimensions: 105.5 x 57.0 x 21.8mm
Weight: 104g
-
Operating environment
Operating temperature: –20℃ to +70℃
IP rating: IP65
-
Feature
Certificates: CE, FCC, PTCRB, AT&T, T-Mobile, Verizon
Sensors: Accelerometer
Scenarios: Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection
Driving behavior analysis: Harsh acceleration, Harsh braking, Harsh cornering, Collision
We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
