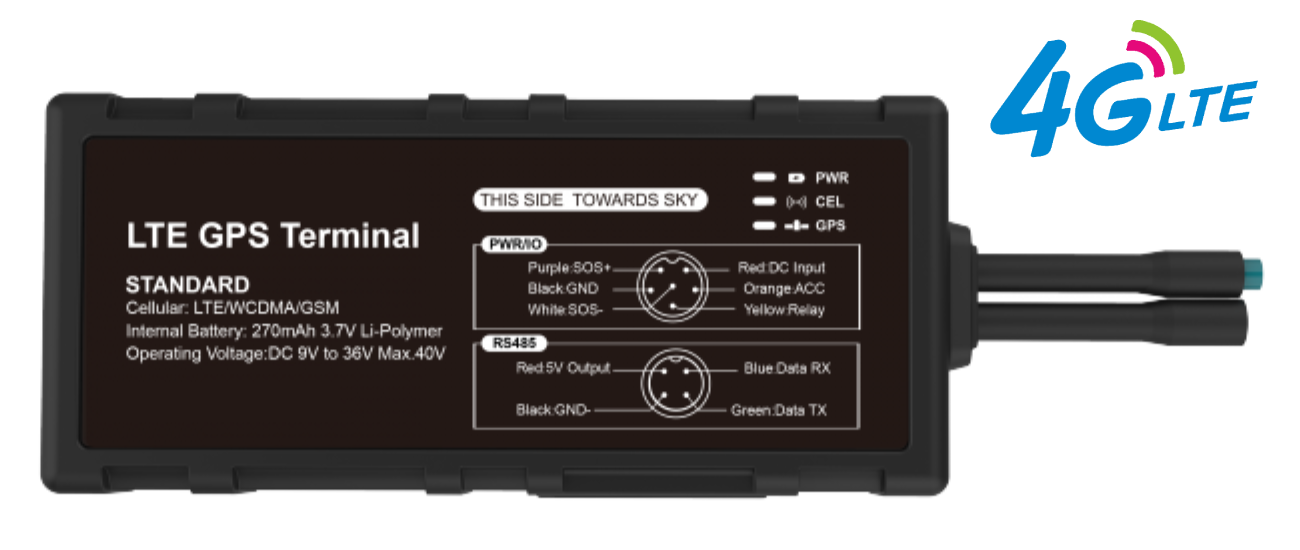

4G GPS Wired Vehicle Tracker (CT-V01)
4G GPS Wired Vehicle Tracker (CT-V01)
Improve the performance of your fleet business today with the feature-rich and lightning-fast CT-V01. The CT-V01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights.

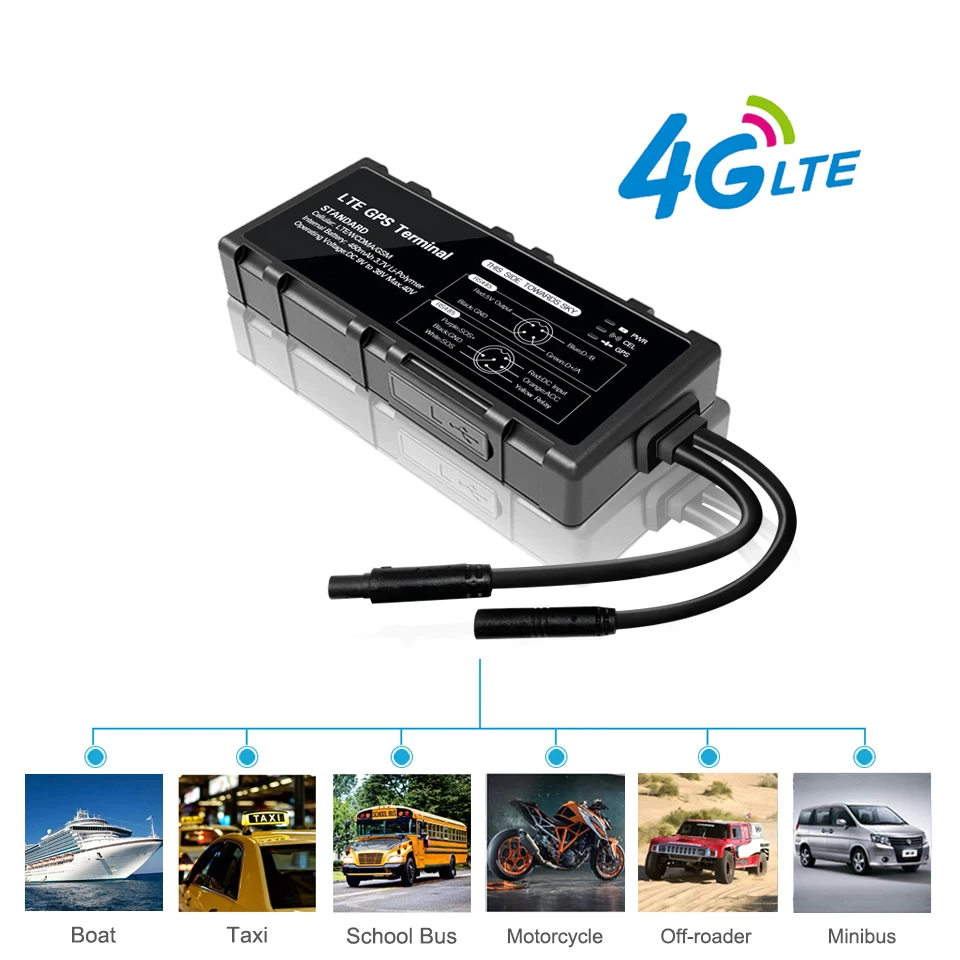

Track your personal car, motorbike or fleet vehicles 24/7 with our 4G Hardwired GPS Tracker. This GPS tracker is hardwired to your vehicle allowing 365 days 24/7 tracking for total protection. No additional batteries or charging needed.
Should the unthinkable happen and your vehicle is stolen, you can remotely disable the fuel supply to your vehicle's engine via our platform or your mobile phone.
Real-time tracking enables you to quickly locate your vehicle.
SIM Providers supported: Optus, Amaysim, Vodafone, Telstra.
Share
Highlights
-
What we offer
Connect to the 4G Network
By using a device that utilises the 4G mobile network, you can retrieve accurate GPS data with lightning speed & won’t become outdated any time soon.
FREE licence to our Open Standard tracking platform
Your tracker comes with a FREE licence and NO contracts. It’s compatible with all desktop and mobile devices, including Apple and Android devices.
FREE SIM Card
A SIM Card is required for all GPS Trackers. They ARE included FREE with your tracking device purchase.
Australian Platform
Our tracking platforms are hosted within Australia, by us, which means your data remains in Australia.
Pre-Configuration
Your tracker and platform access will be pre-configured, so your device is ready to go once you receive it.
Track Multiple Devices
Our platform allows you to track multiple assets and/or vehicles simultaneously. Perfect for both individuals and fleets. -
Tracker Features
Internal Battery
The built in 450mAh battery will keep the device running when the vehicle’s main battery is disconnected and alert the owner. It has sufficient power to continue tracking for up to 15 minutes in the event the vehicle’s battery is disconnected.
Internal Memory
Should the tracker lose 4G signal the device will memorise the GPS data and upload the signal once it establishes a connection with the 4G network again.
Remote Cut-Off
The 4G GPS tracker supports remote cut-off to the fuel and power to better protect the car should the unthinkable happen and your vehicle is stolen. The platform allows you to not only track your vehicle but disable it should you need to.
Ignition Detection
Always keeps you informed of the ACC status of your vehicle. (The vehicle ACC status represents the starting and stopping status of your vehicle).
Panic Button
In the event of an emergency, the SOS button can be used to send an SMS and/or Platform notification to specific mobile phone numbers.
Specifications
-
Global Navigation Satellite System (GNSS)
Positioning system: GPS+WiFi
Frequency: L1
Positioning accuracy: <2.5m CEP
Tracking sensitivity: -162dBm
Acquisition sensitivity: -149dBm
TTFF: (open sky) Avg. hot start: ≤1sec
TTFF: (open sky) Avg. cold start: ≤45sec
-
Cellular
Communication network: LTE/UMTS/GSM
Frequency:
LTE: B1/B2/B3/B4/B5/B7/B8/B28AB
UMTS/HSPA: 850/900/1900/2100 MHz
GSM: 850/900/1800/1900 MHz -
Power
Battery: 450mAh/3.7V industrial-grade Li-Polymer battery
Input voltage: 9-36VDC
-
Interface
LED indication: GNSS (Blue), Cellular (Green), Power (Red)

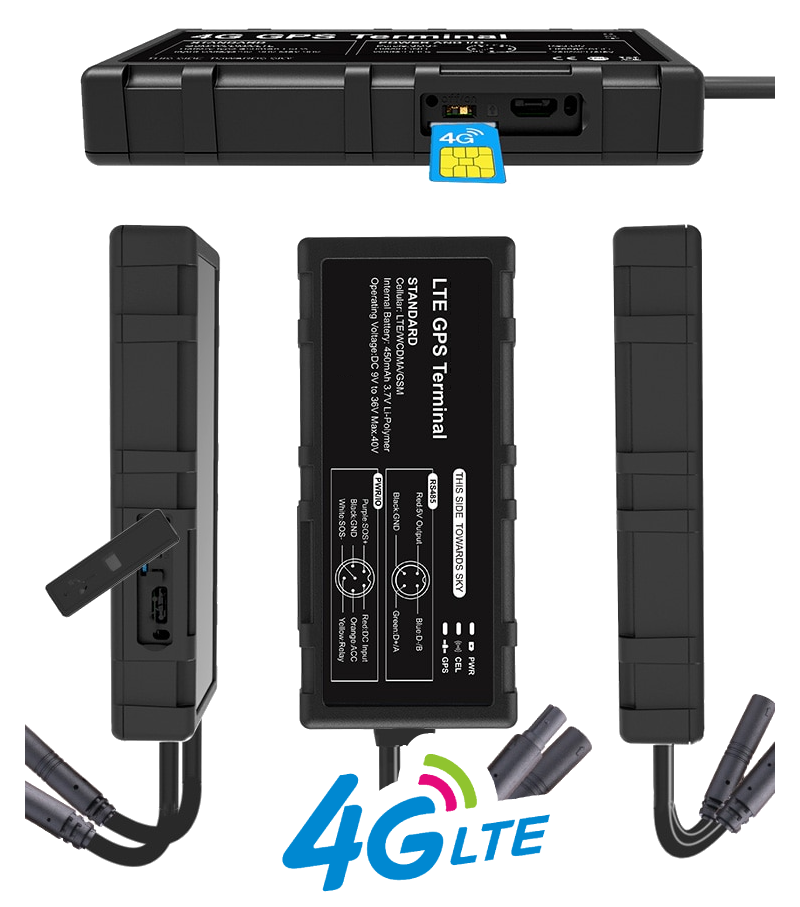

SIM: Micro-SIM
Data storage: 4Gb+2Gb
Digital inputs: ACC, SOS
Digital outputs: Relay
-
Physical specification

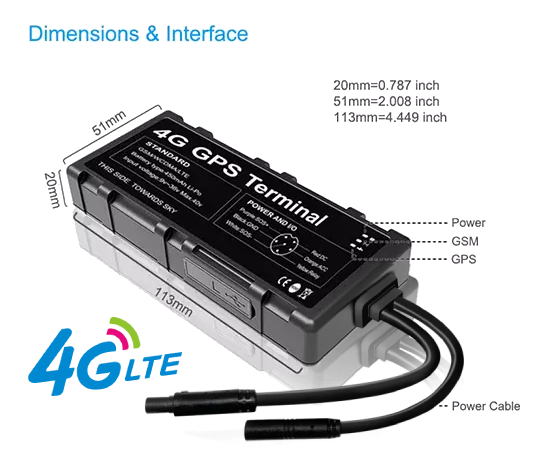

Dimensions: 113.0 x 51.0 x 20.0mm
Weight: 105g
-
Operating environment
Operating temperature: –20℃ to +70℃
Operating humidity: 5%~95%, non-condensing
IP rating: IP65
-
Features
Sensors: Accelerometer
Scenarios: Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection
Driving behavior analysis: Harsh acceleration, Harsh braking, Harsh cornering, Collision
Installation Guide
-
The CT-V01 is a hardwired GPS tracker and requires a minimum of 3 wires to be connected to your vehicle. Visit our guide for more information.
