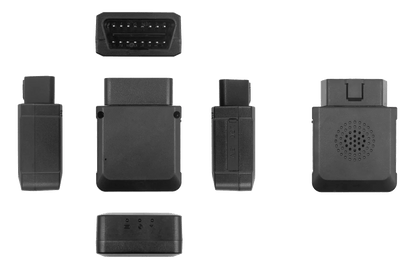

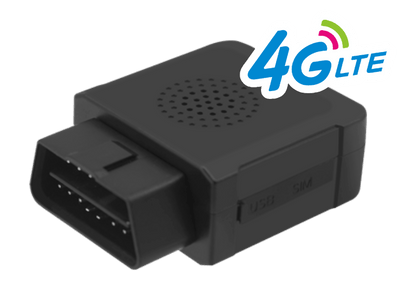

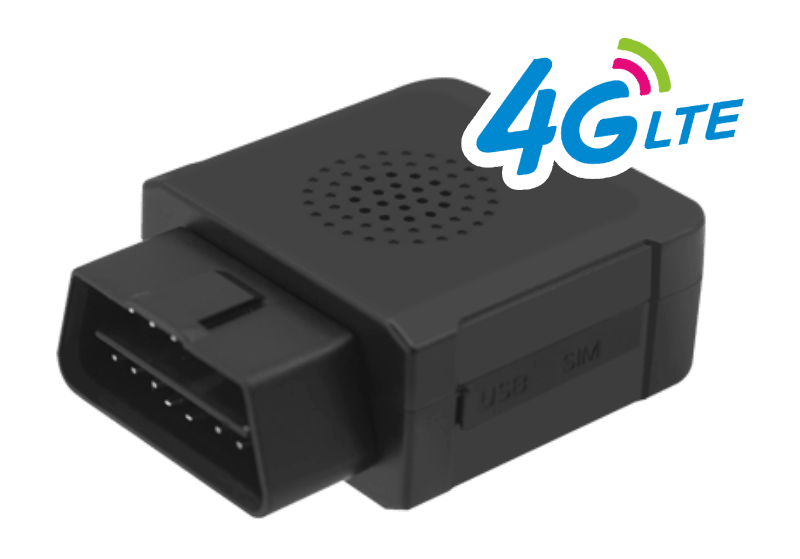

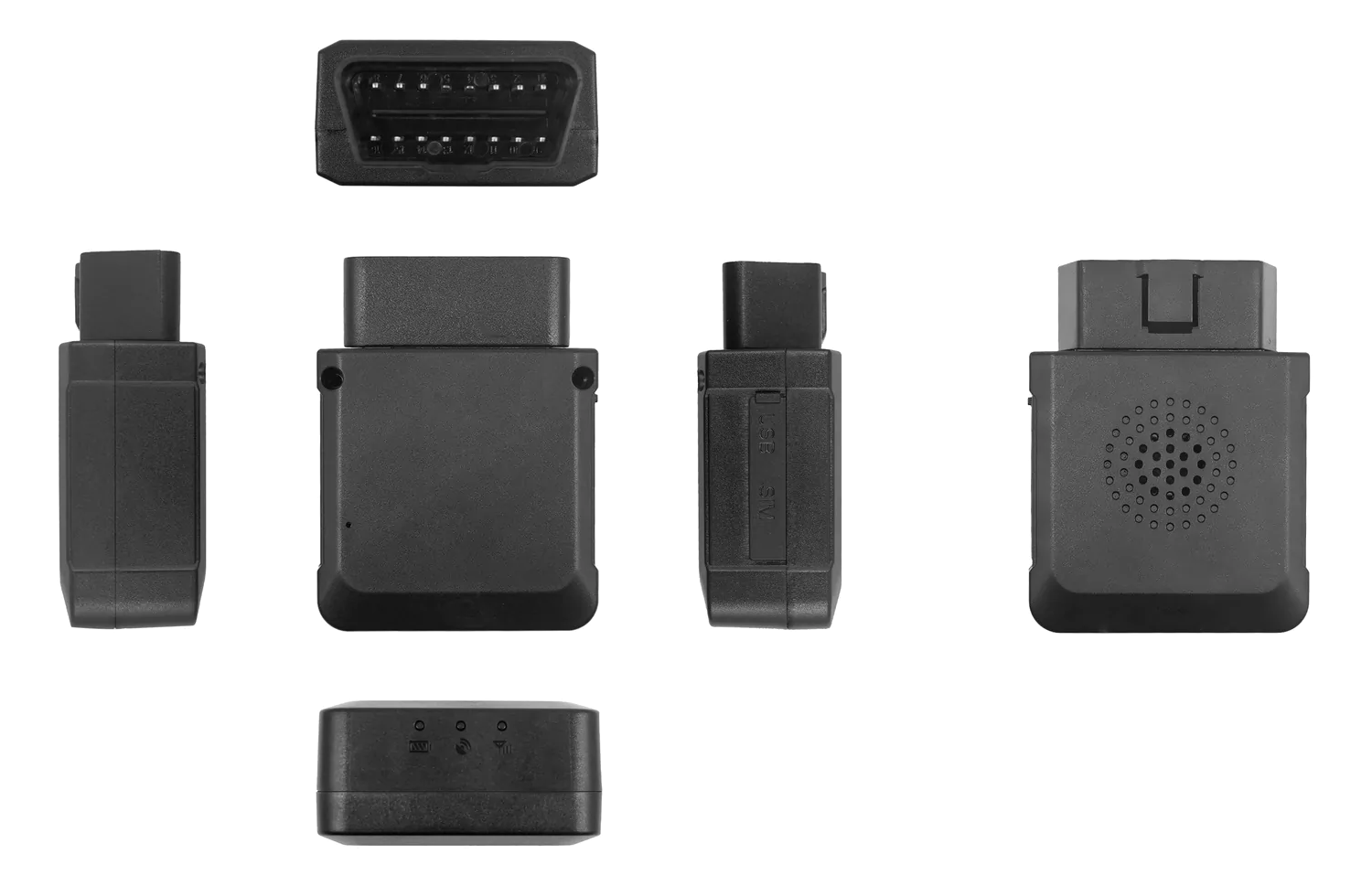

4G GPS OBD Vehicle Tracker (CT-V04)
4G GPS OBD Vehicle Tracker (CT-V04)
The CT-V04 is a professional 4G OBD vehicle tracker you can easily install. With its advanced accelerometer, gyroscope, and special algorithm, CT-V04 can detect improper driving behaviors, precisely calculate mileages, and prevent dark spots occur in areas with poor GNSS signals. By leveraging different 4G communication modules, it covers almost all global LTE frequency bands. A revolutionary update is the voice alarm, which can remind drivers to behave correctly when their bad driving activities have been detected. Moreover, it also supports the embedded microphone for remote listen-in.
SIM Providers supported: Optus, Amaysim, Vodafone, Telstra.
Share
Highlights
-
What we offer
Connect to the 4G Network
By using a device that utilises the 4G mobile network, you can retrieve accurate GPS data with lightning speed & won’t become outdated any time soon.

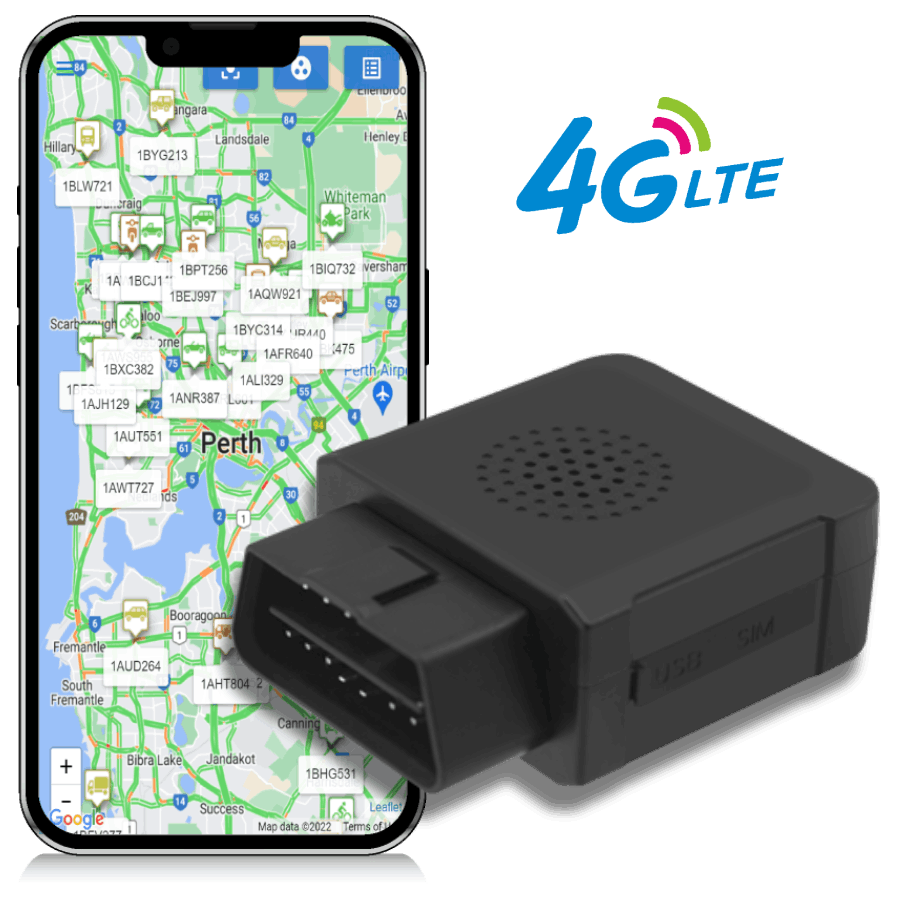

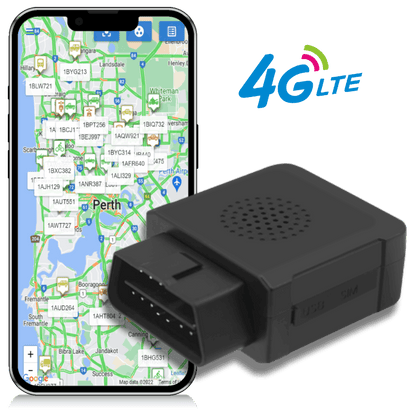

FREE licence to our Open Standard tracking platform
Your tracker comes with a FREE licence and NO contracts. It’s compatible with all desktop and mobile devices, including Apple and Android devices.
FREE SIM Card
A SIM Card is required for all GPS Trackers. They ARE included FREE with your tracking device purchase.
Australian Platform
Our tracking platforms are hosted within Australia, by us, which means your data remains in Australia.
Pre-Configuration
Your tracker and platform access will be pre-configured, so your device is ready to go once you receive it.
Track Multiple Devices
Our platform allows you to track multiple assets and/or vehicles simultaneously. Perfect for both individuals and fleets. -
Tracker features
Rapid Installation
Simply plug the tracker into your vehicles OBD port and you're ready to go. Most modern vehicles have an OBP port.
Internal Battery
The built in 50mAh battery will keep the device running when the vehicle’s main battery is disconnected and alert the owner. It has sufficient power to continue tracking for up to 10 minutes in the event the vehicle’s battery is disconnected.
Internal Memory
Should the tracker lose 4G signal the device will memorise the GPS data and upload the signal once it establishes a connection with the 4G network again.
Driving Behaviour Analysis
Detect reckless driving behaviours such as harsh acceleration, braking and cornering.
Specifications
-
Global Navigation Satellite System (GNSS)
Positioning system: GPS/Glonass/BDS/GALILEO, AGPS/LBS assisted; INS (inertial navigation system)
Frequency: L1
Positioning accuracy:<2.5m CEP
Tracking sensitivity: -165 dBm
Acquisition sensitivity: -148 dBm (cold) /-163 dBM (hot)
TTFF (open sky) Avg. hot start: ≤1sec
TTFF (open sky) Avg. cold start: ≤32sec
-
Cellular
Communication network: LTE Cat1 + WCDMA + GSM
Frequency:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
WCDMA: B1/B2/B5/B8
GSM/EDGE: B2/B3/B5/B8 -
Power
Battery: 50mAh industrial-grade LiCo battery
Input voltage: 9-36VDC
-

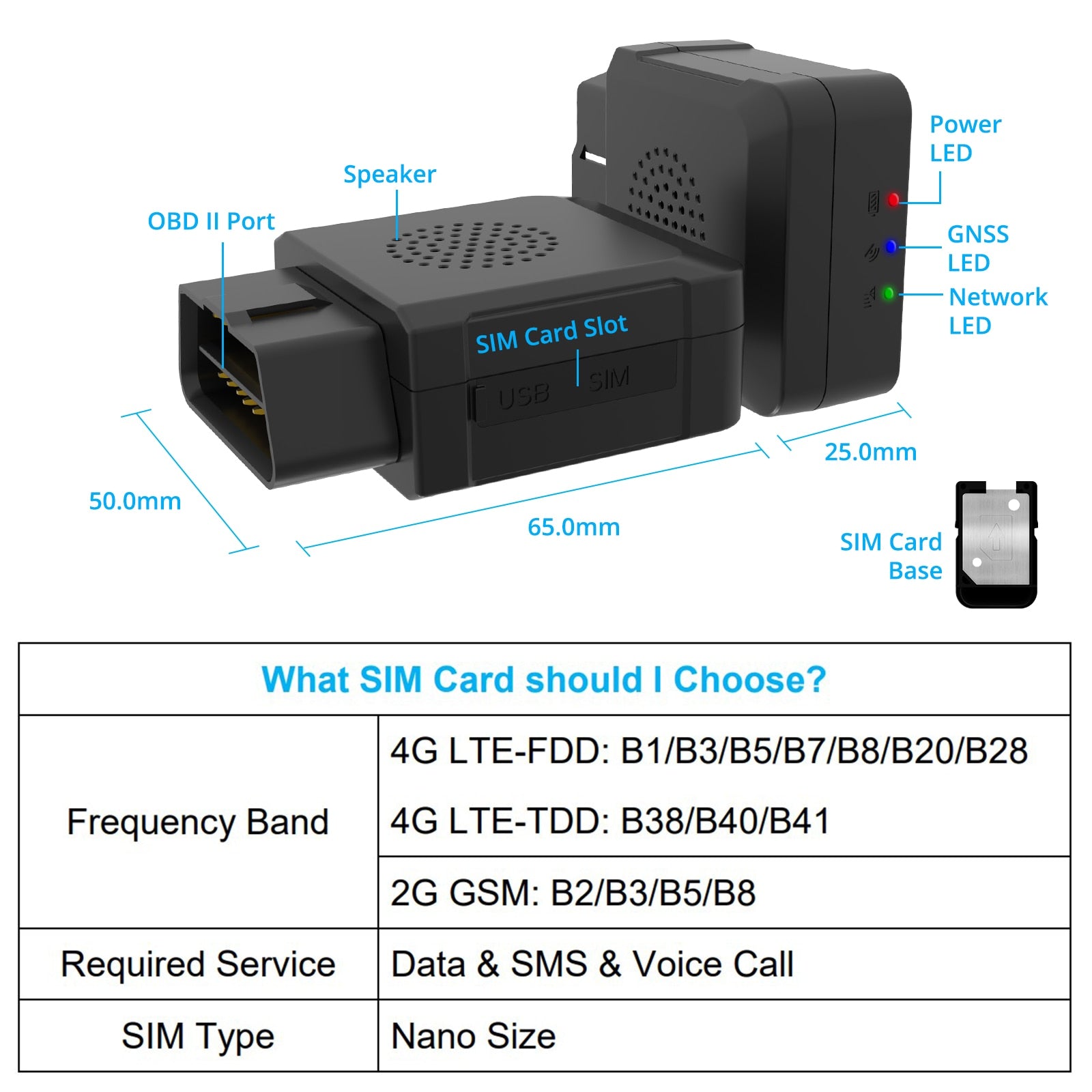

Interface
LED indication: GNSS (Blue), Cellular (Green), Power (Red)
Connector: OBD II port
SIM: Nano-SIM
USB: 1 x Micro-USB for configuration
Data storage: 8MB flash memory
-

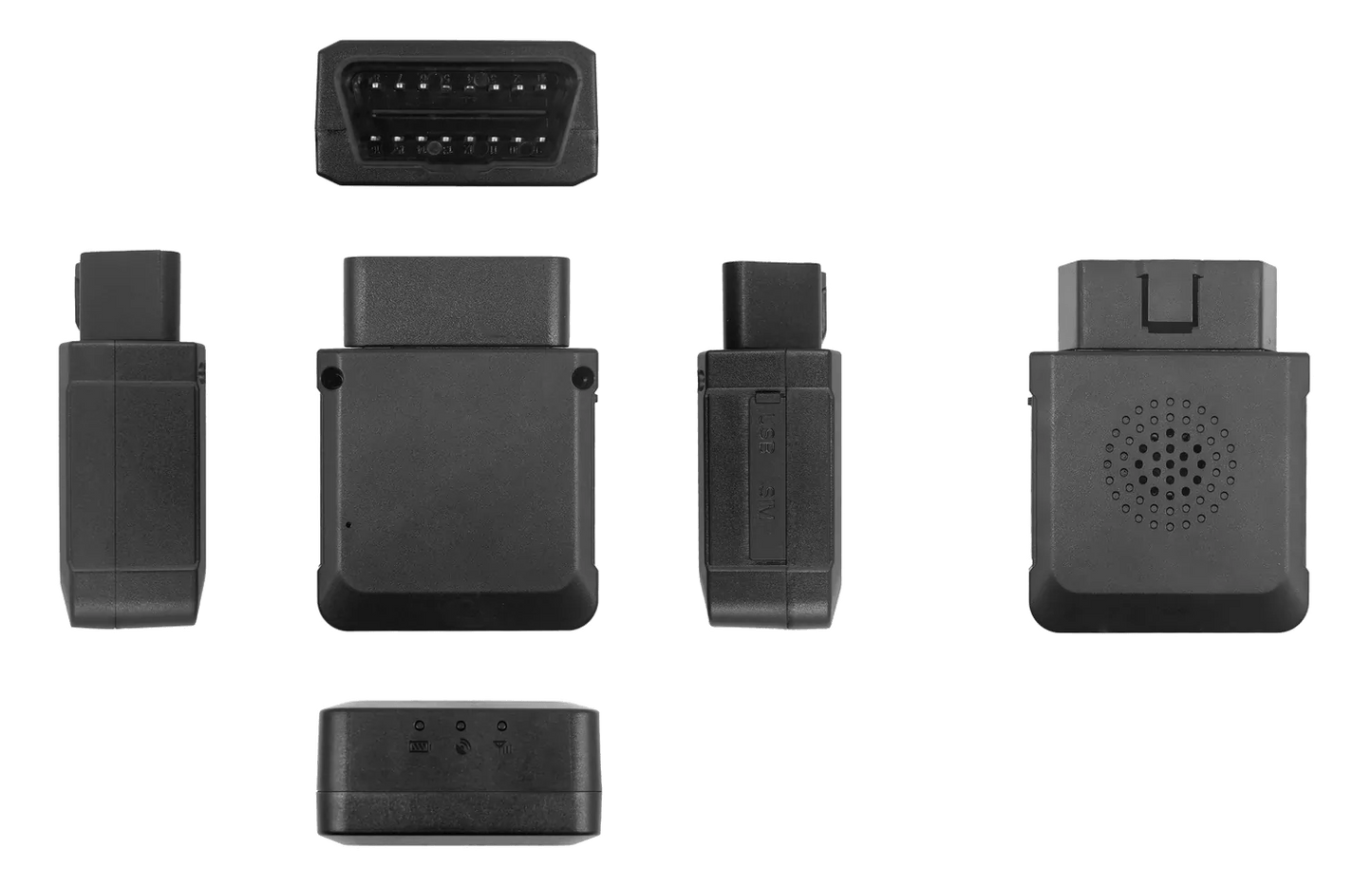

Physical specification
Dimensions: 65.0 x 50.0 x 25.0mm
Weight: 60g
-
Operating environment
Operating temperature: -20°C to 70°C
Operating humidity: 5%~95%, non-condensing
IP rating: IP41
-
Features
Voice monitoring range: ≤5 meters
Sensors: Accelerometer and gyroscope
Ignition detection: External Power Voltage
Scenarios: Vehicle movement alert, Over-speed alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection
Driving behavior analysis: Harsh acceleration, Harsh braking, Harsh cornering, Sudden lane change, Collision, Skidding, Rollover, Roll & pitch
We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
