Plan and platform compatibility for 4G GPS Long-Life Battery Asset Tracker (CT-A05)
Plan or platform
Works?
Notes
Power Saver plan — $7/mo
Yes
2-minute updates — runs the single-use battery down far faster than the once-a-day reporting it ships with. Annual plan $70/yr — two months less than paying monthly.
Real-Time plan — $10/mo
Yes
10-second updates — uses the single-use battery fastest; its long life assumes the once-a-day reporting it ships with. Annual plan $100/yr — two months less than paying monthly.
BYO SIM + data
Yes
Any active Australian 4G SIM with data.

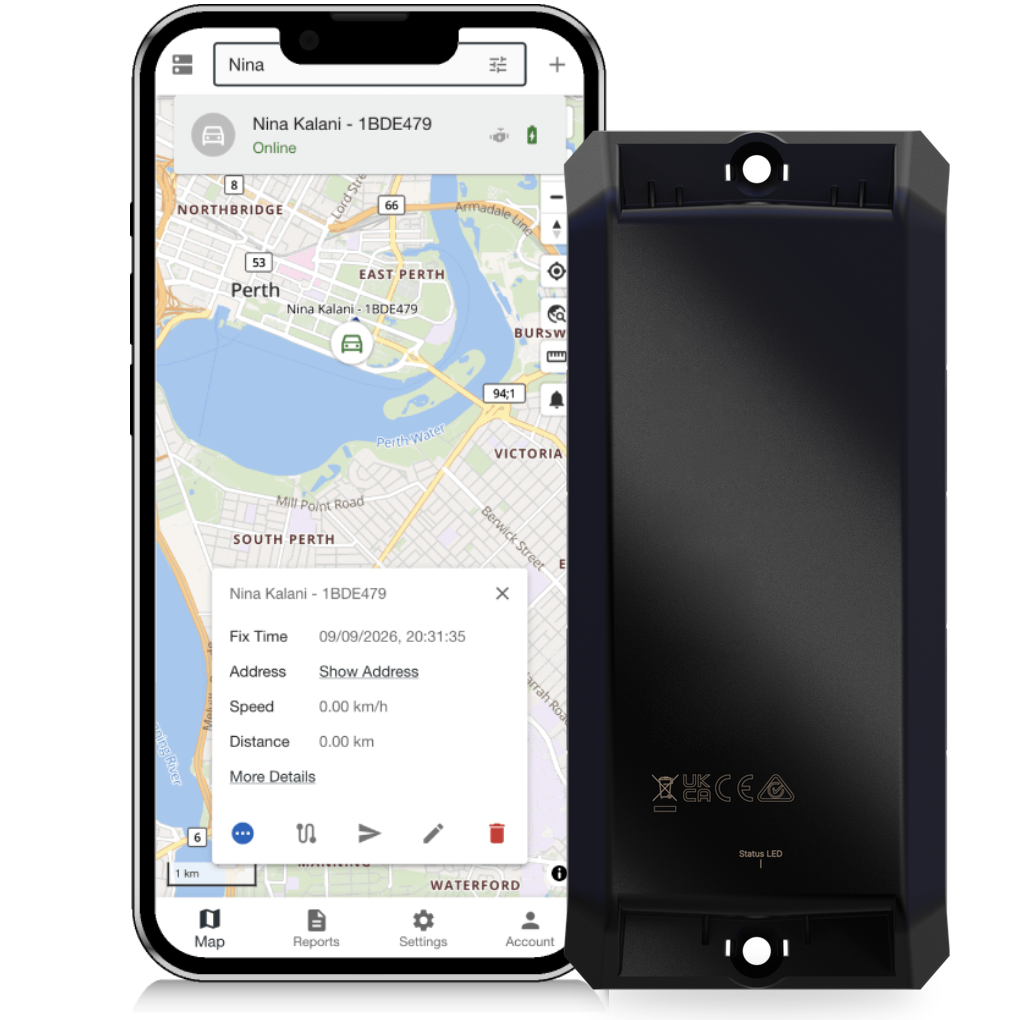

Platform access
Yes
Included with a monthly or yearly plan, or add platform access on its own — not when the tracker is bought on its own.

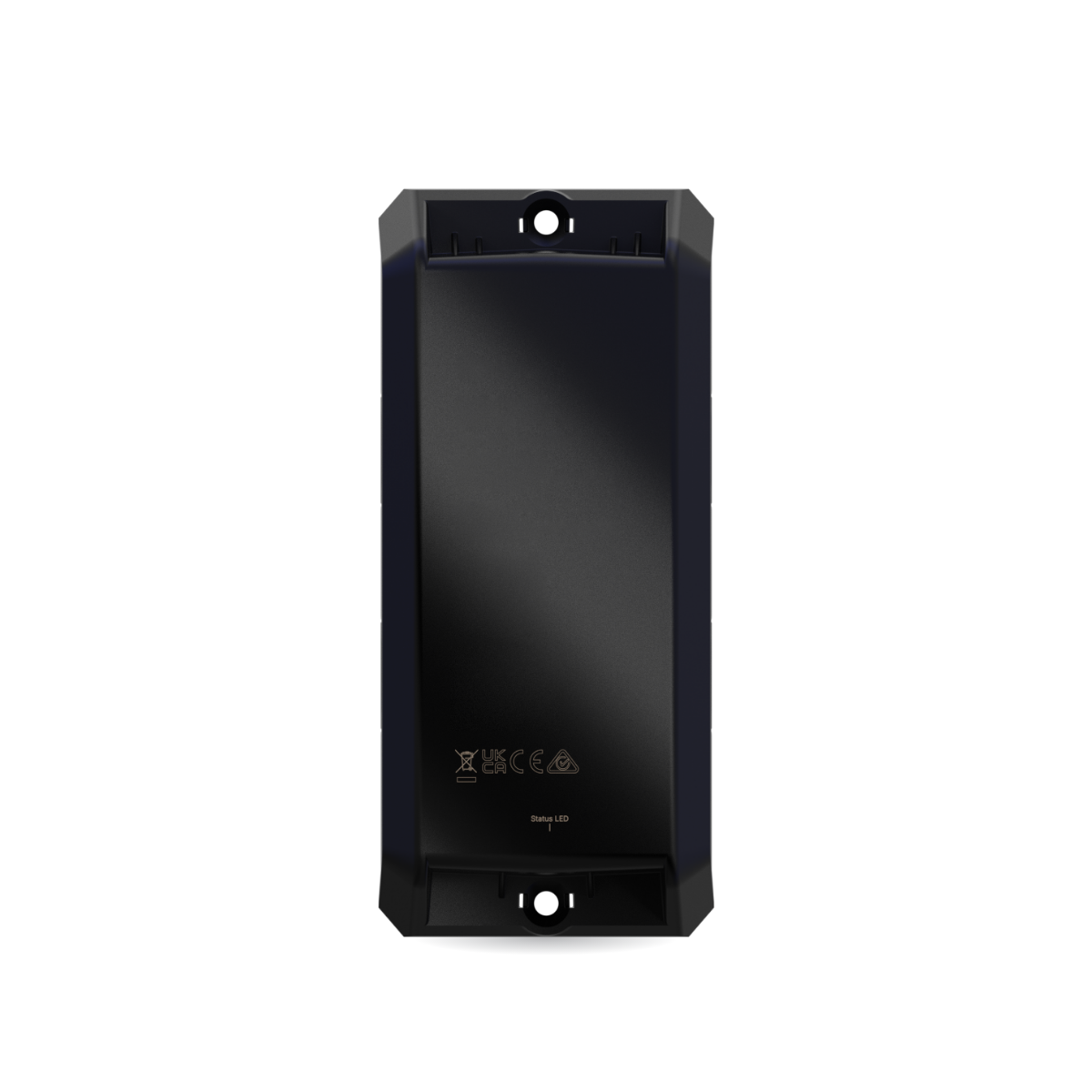

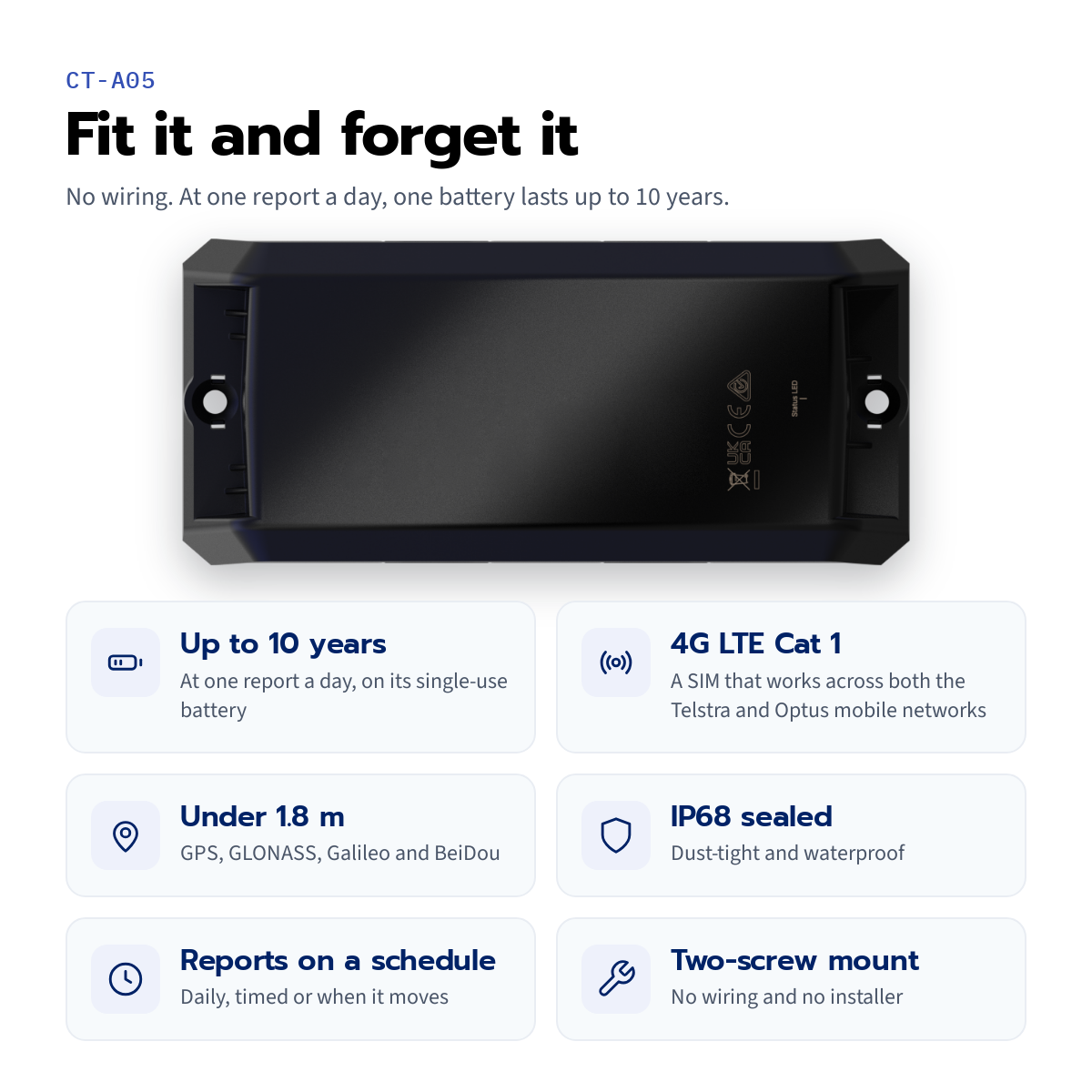

CT-A05 is a 4G GPS asset tracker with a built-in single-use battery, no wiring and nothing to charge. Screw it to a trailer, a boat, a shipping container, a generator or a piece of plant and leave it there.

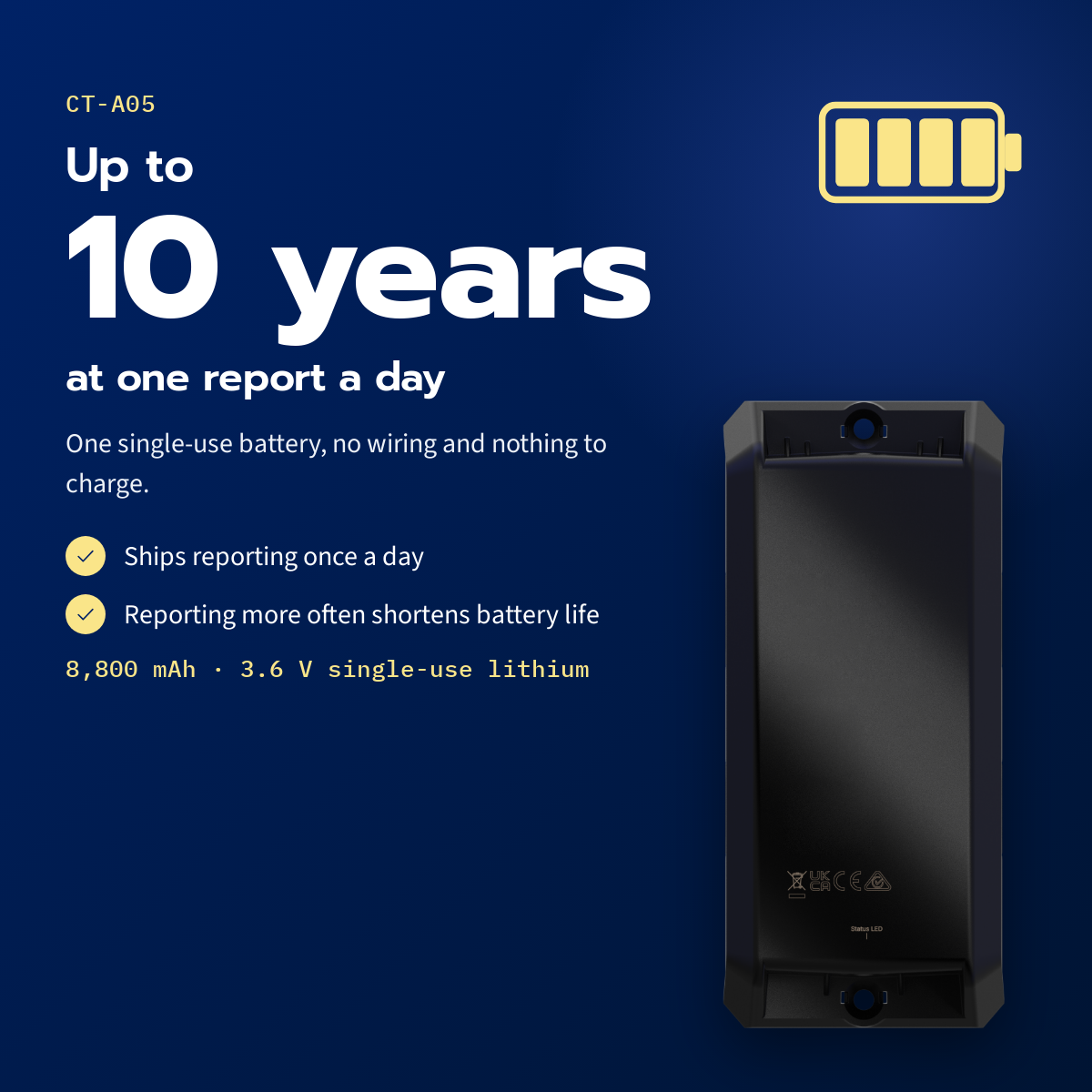

It ships reporting its location once a day, and at one report a day the battery lasts up to 10 years. The reporting interval is set on the platform: it can report on a schedule, at set intervals or when the asset moves, and the more often it reports, the sooner the battery runs down. Updates every 2 minutes on the Power Saver plan, or every 10 seconds on the Real-Time plan, run it down far faster, so choose the interval to suit how long you need it to last.

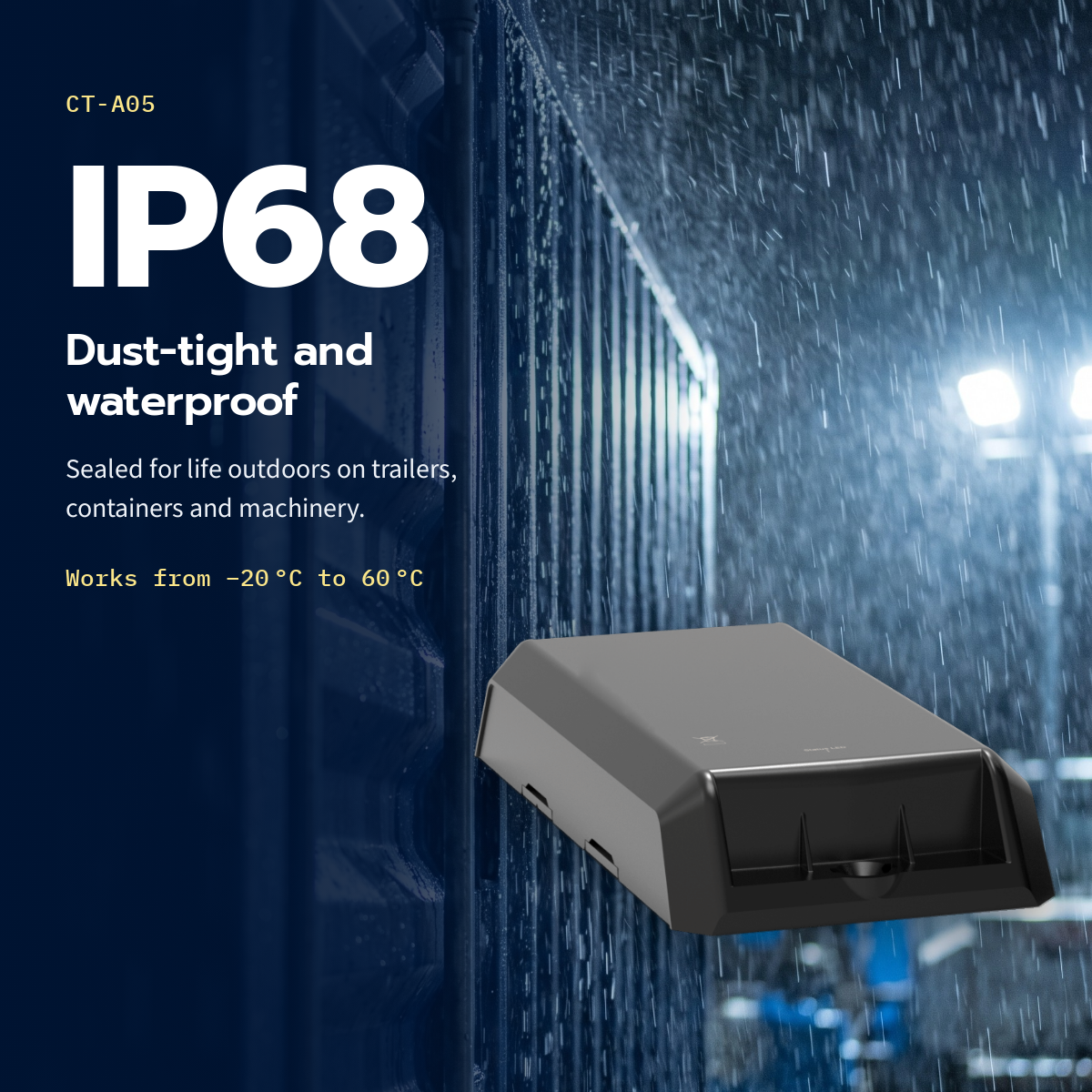

The case is sealed to IP68, dust-tight and waterproof, and the tracker works from –20 °C to 60 °C. GPS, GLONASS, Galileo and BeiDou work together for positions accurate to under 1.8 m, and a built-in motion sensor detects when the asset moves. It measures 156 × 70 × 25.2 mm and mounts flat with two screws (not included).

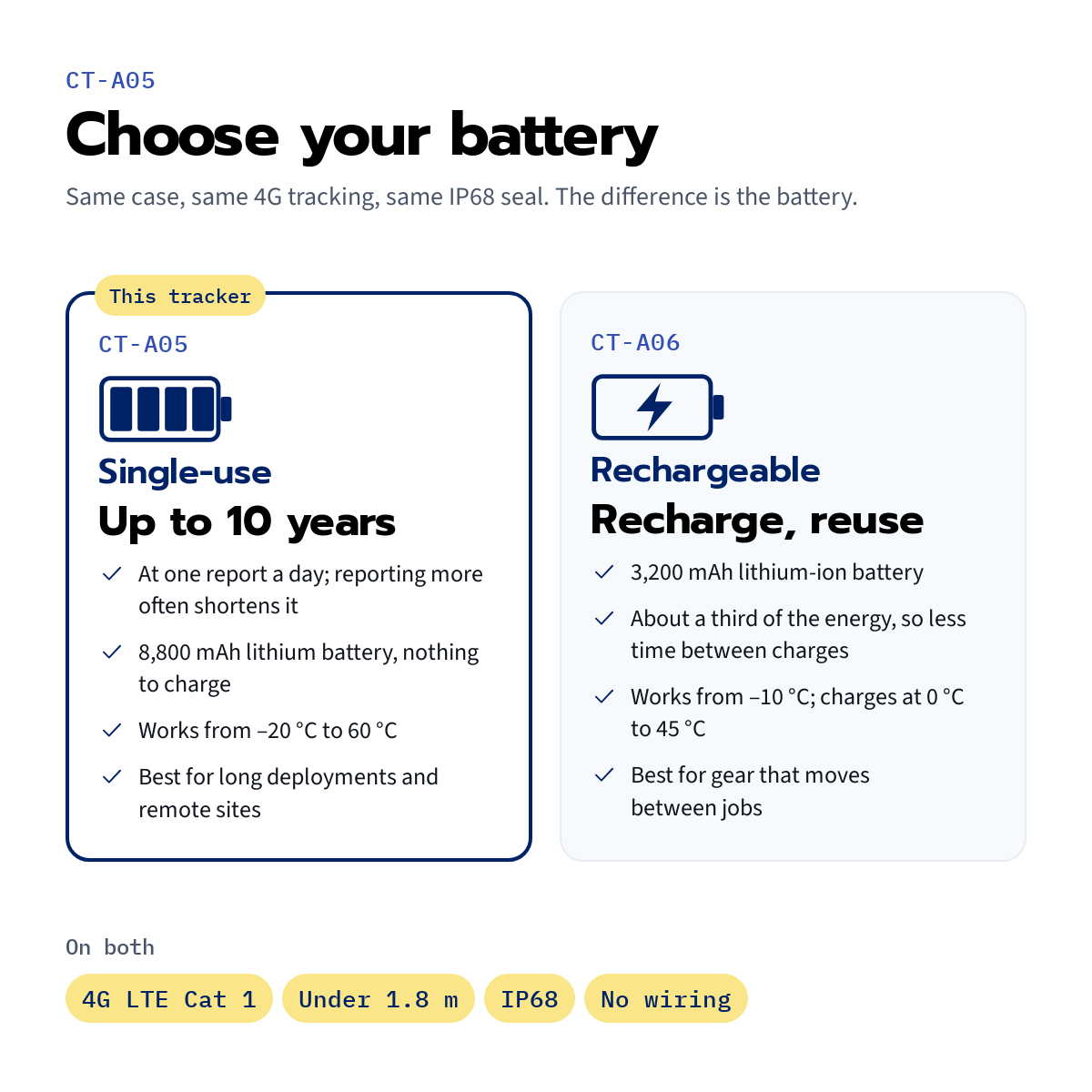

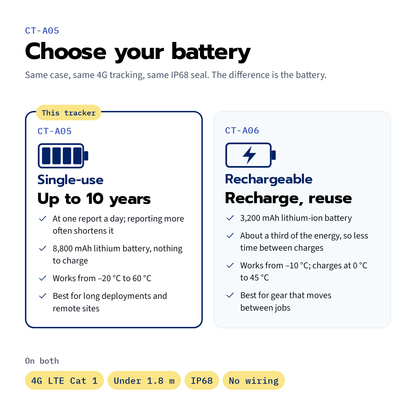

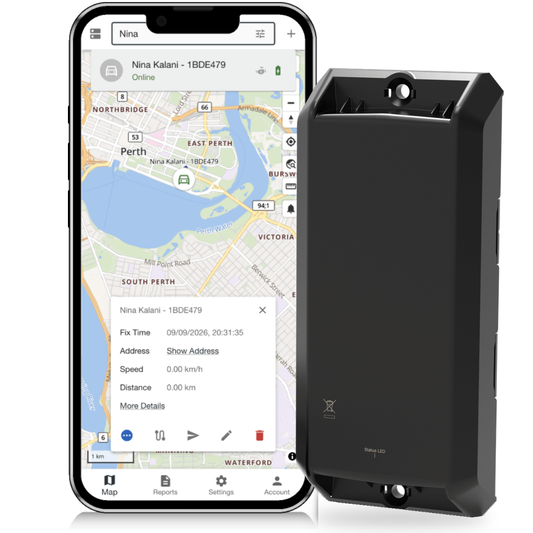

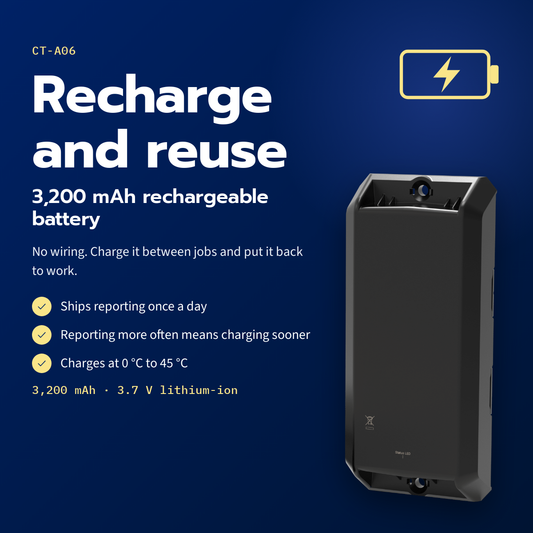

Choose CT-A05 for the longest life: its single-use battery holds nearly three times the energy of the rechargeable CT-A06. If you’d rather recharge it between jobs, choose CT-A06.
Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.
Specifications
Full hardware spec published
Specifications for 4G GPS Long-Life Battery Asset Tracker (CT-A05)
Power & install
Power source
Built-in single-use battery — no wiring and nothing to charge
Installation
No wiring — switch it on and screw it in place
Set-up
The nano-SIM slot and power switch sit under the top cover — press the cover flush at every corner to reseal it
Size

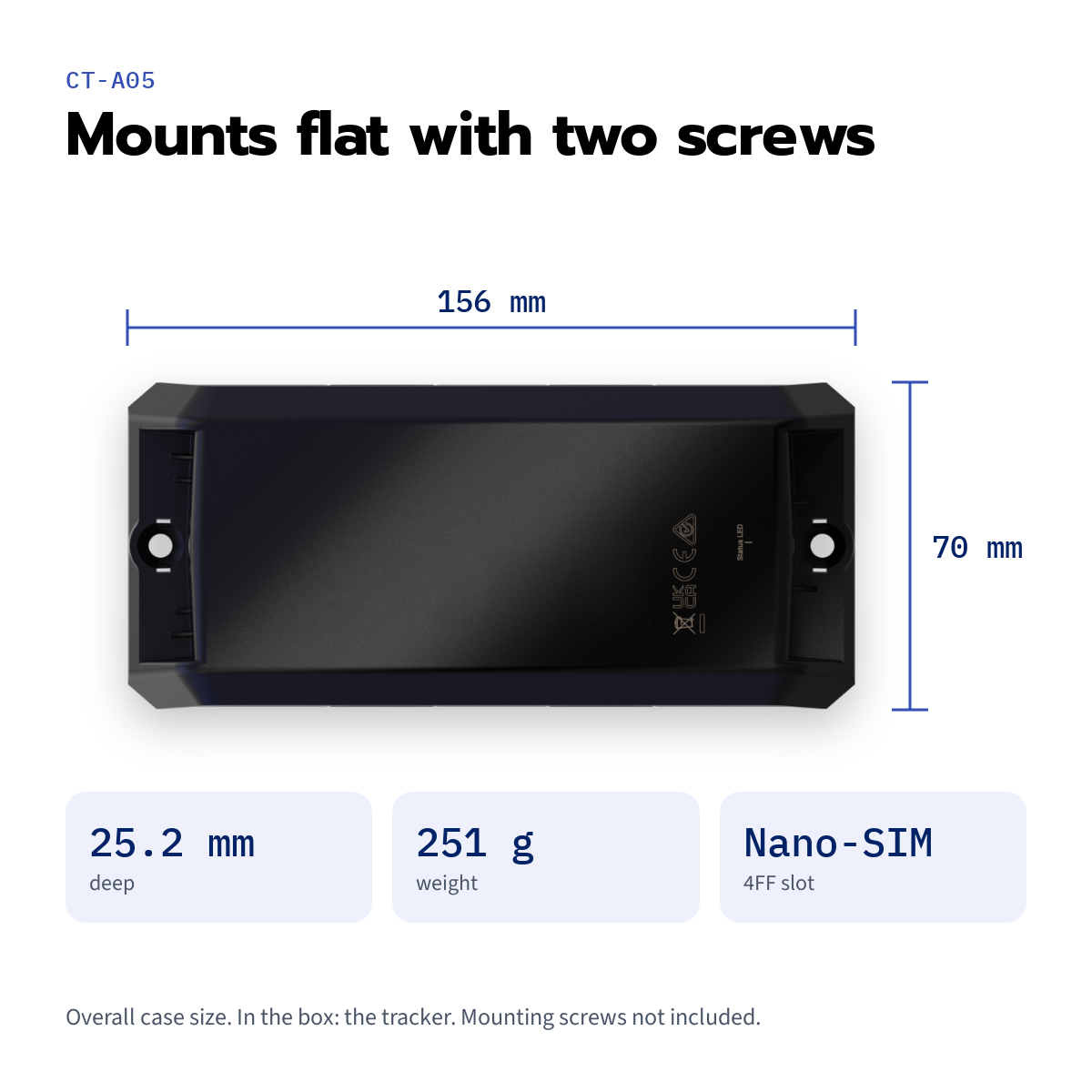

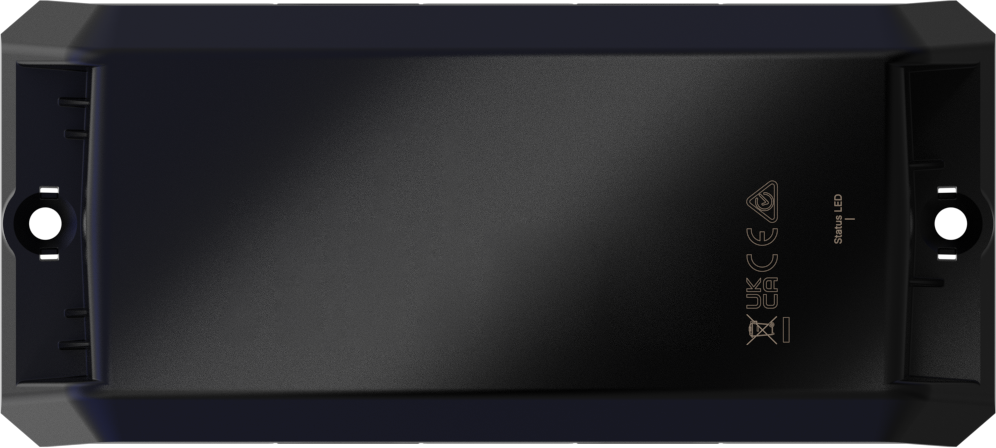

156 × 70 × 25.2 mm, 251 g
Battery
Battery
8,800 mAh single-use lithium (Li-SOCl2), 3.6 V
Battery life
Up to 10 years at one report a day — reporting more often shortens it, and updates every 2 minutes or every 10 seconds run it down far faster
Which battery?
Single-use, for the longest life with nothing to charge — for a tracker you recharge between jobs, see CT-A06
Battery change
Replaceable by opening the housing with the tracker switched off — fit only the exact type specified, as the wrong type is an explosion risk; contact us for a replacement
Network
Network
4G LTE Cat 1
Bands
LTE-FDD B1/B3/B5/B7/B8/B20/B28
SIM
Ours — works across both the Telstra and Optus mobile networks — or bring your own
SIM size
Nano-SIM (4FF)
Tracking & alerts
Positioning
GPS, GLONASS, Galileo and BeiDou — accurate to under 1.8 m
Reporting
Ships reporting once a day; the interval is set on the platform — on a schedule, at set intervals or when the asset moves
Between reports
Sleeps to save its single-use battery, so a settings change reaches it at its next report
Movement
Built-in motion sensor detects when the asset moves
Mounting
Weather rating
IP68 — dust-tight and waterproof
Mounting

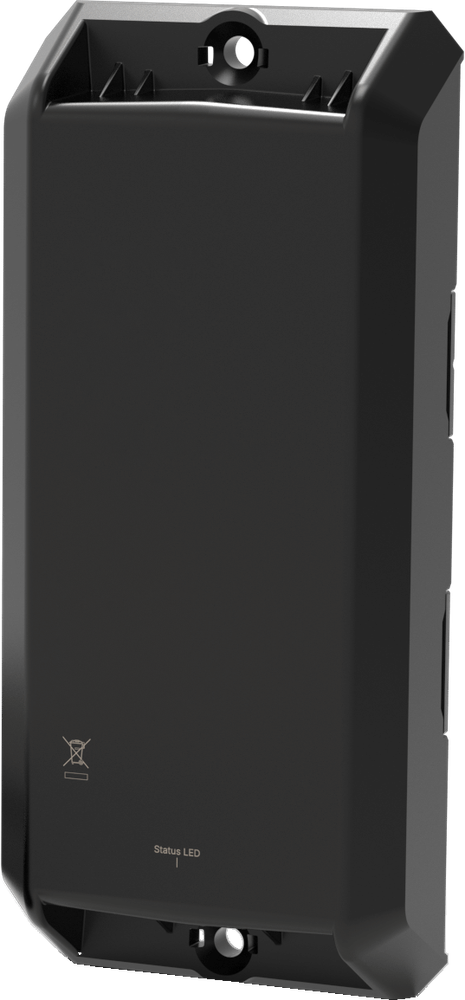

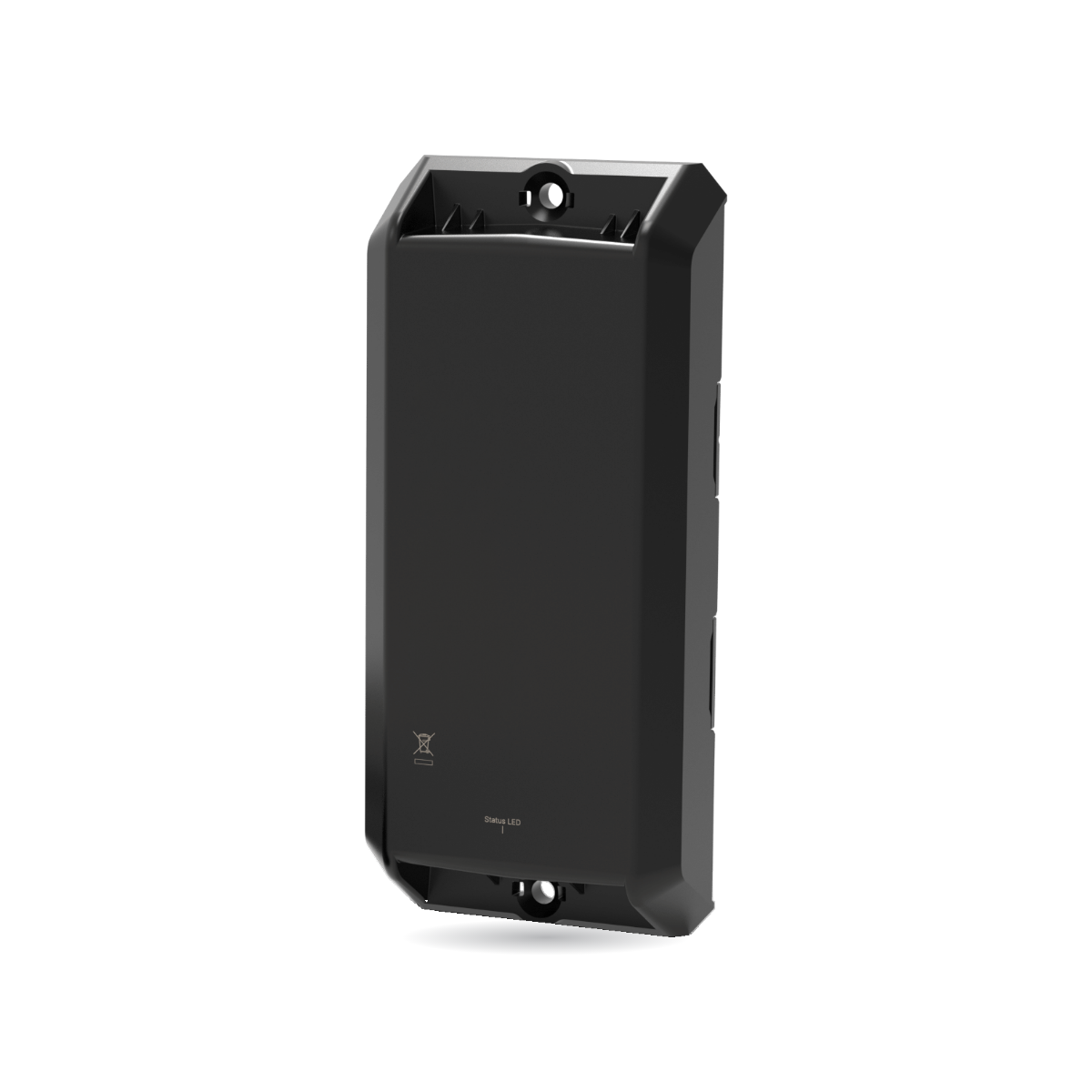

Two screw slots, one at each end of the case (screws not included) — mounts flat on a trailer, container, generator or machine; the antennas are built in
