Plan and platform compatibility for 4G GPS Rugged Rechargeable Asset Tracker (CT-A06)
Plan or platform
Works?
Notes
Power Saver plan — $7/mo
Yes
2-minute updates — runs the battery down far faster than the once-a-day reporting it ships with, so it needs recharging more often. Annual plan $70/yr — two months less than paying monthly.
Real-Time plan — $10/mo
Yes
10-second updates — uses the battery fastest, so expect to recharge it far more often than at the once-a-day reporting it ships with. Annual plan $100/yr — two months less than paying monthly.
BYO SIM + data
Yes
Any active Australian 4G SIM with data.

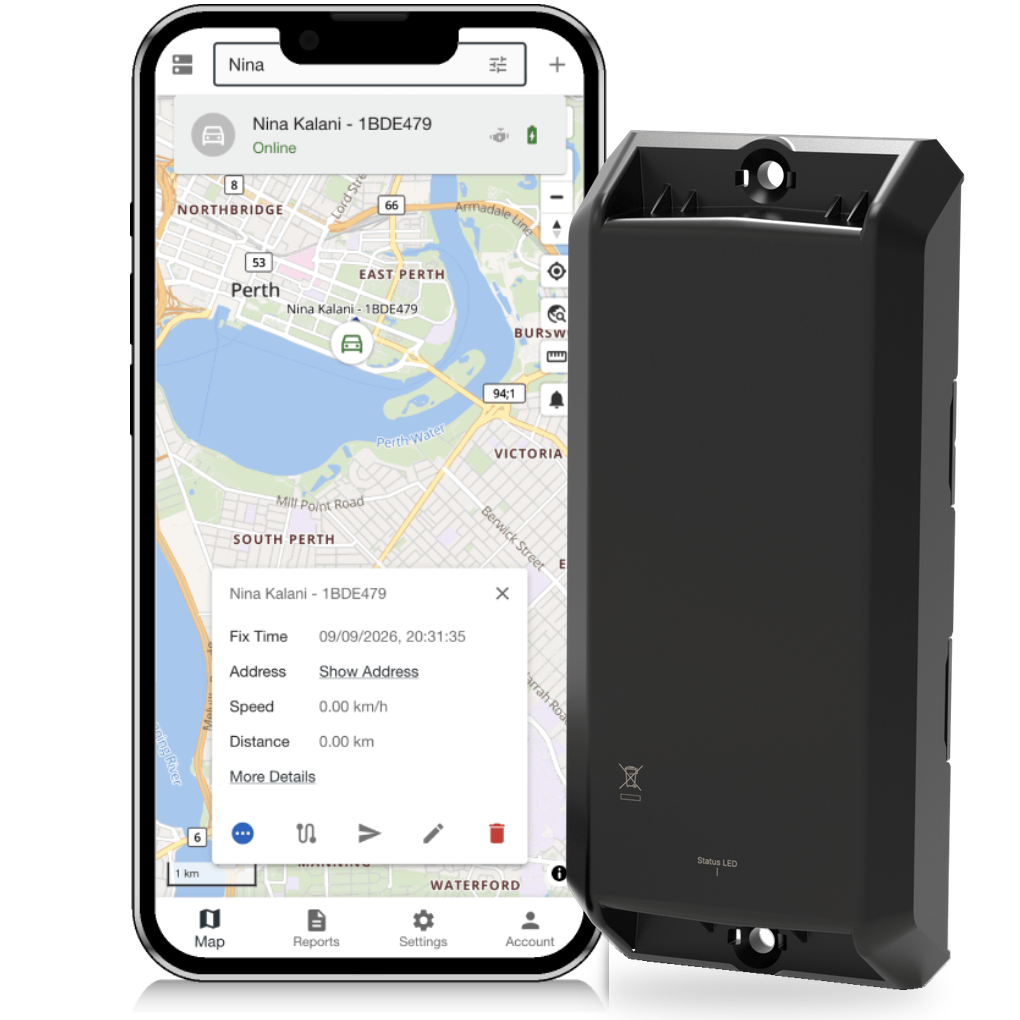

Platform access
Yes
Included with a monthly or yearly plan, or add platform access on its own — not when the tracker is bought on its own.

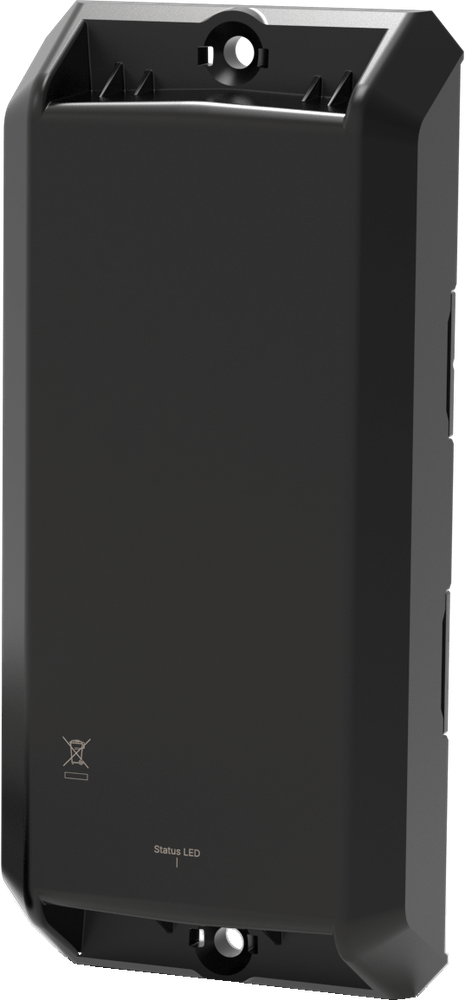

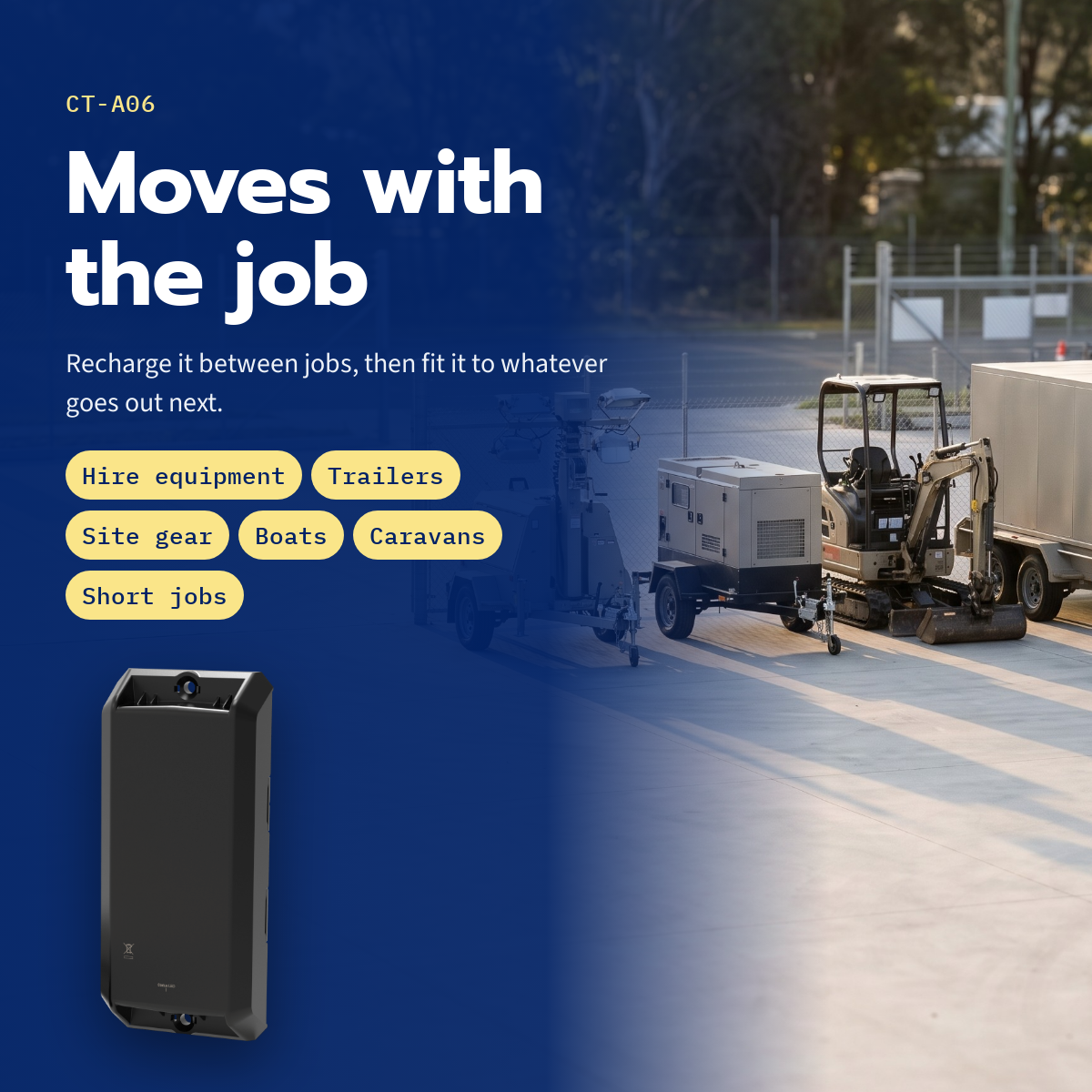

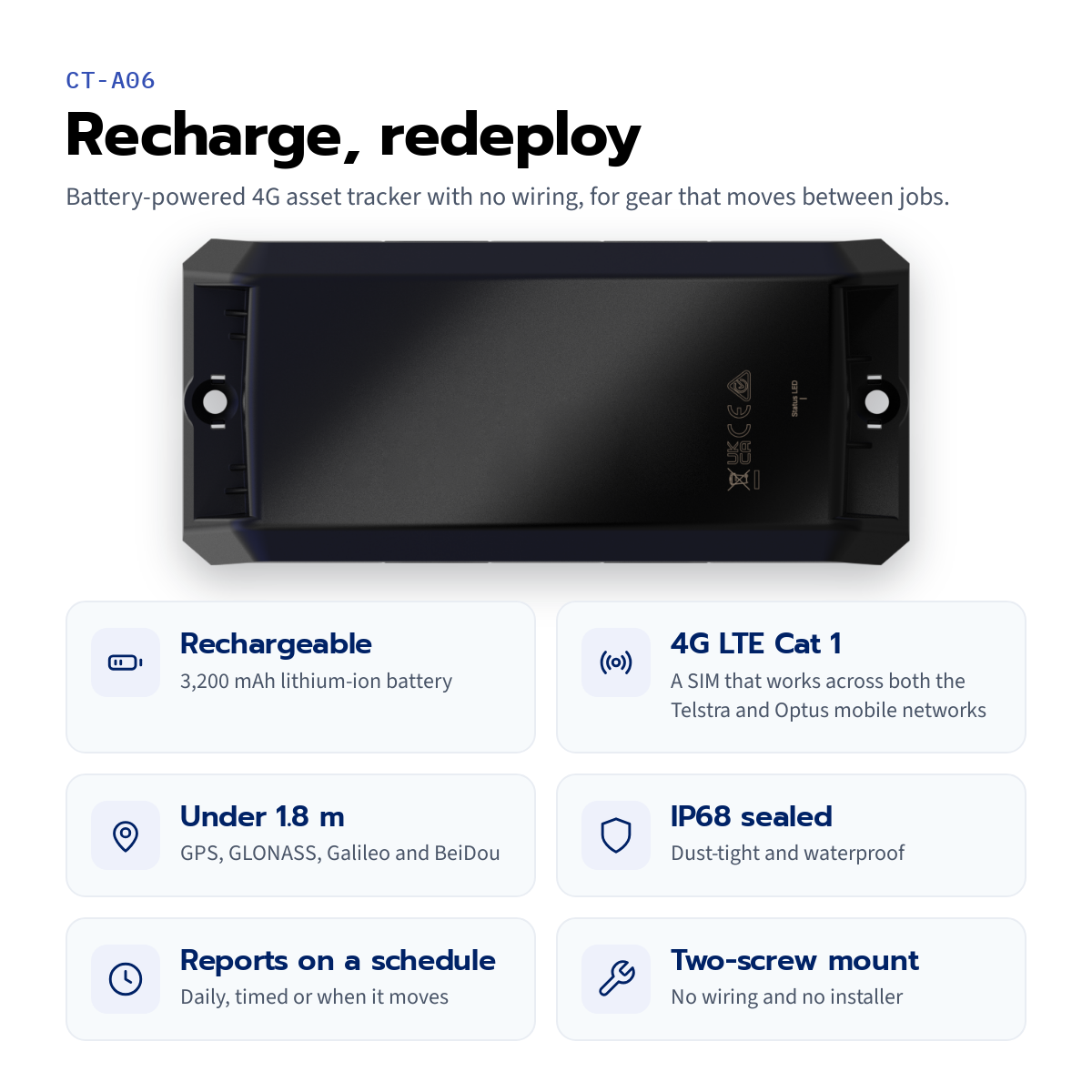

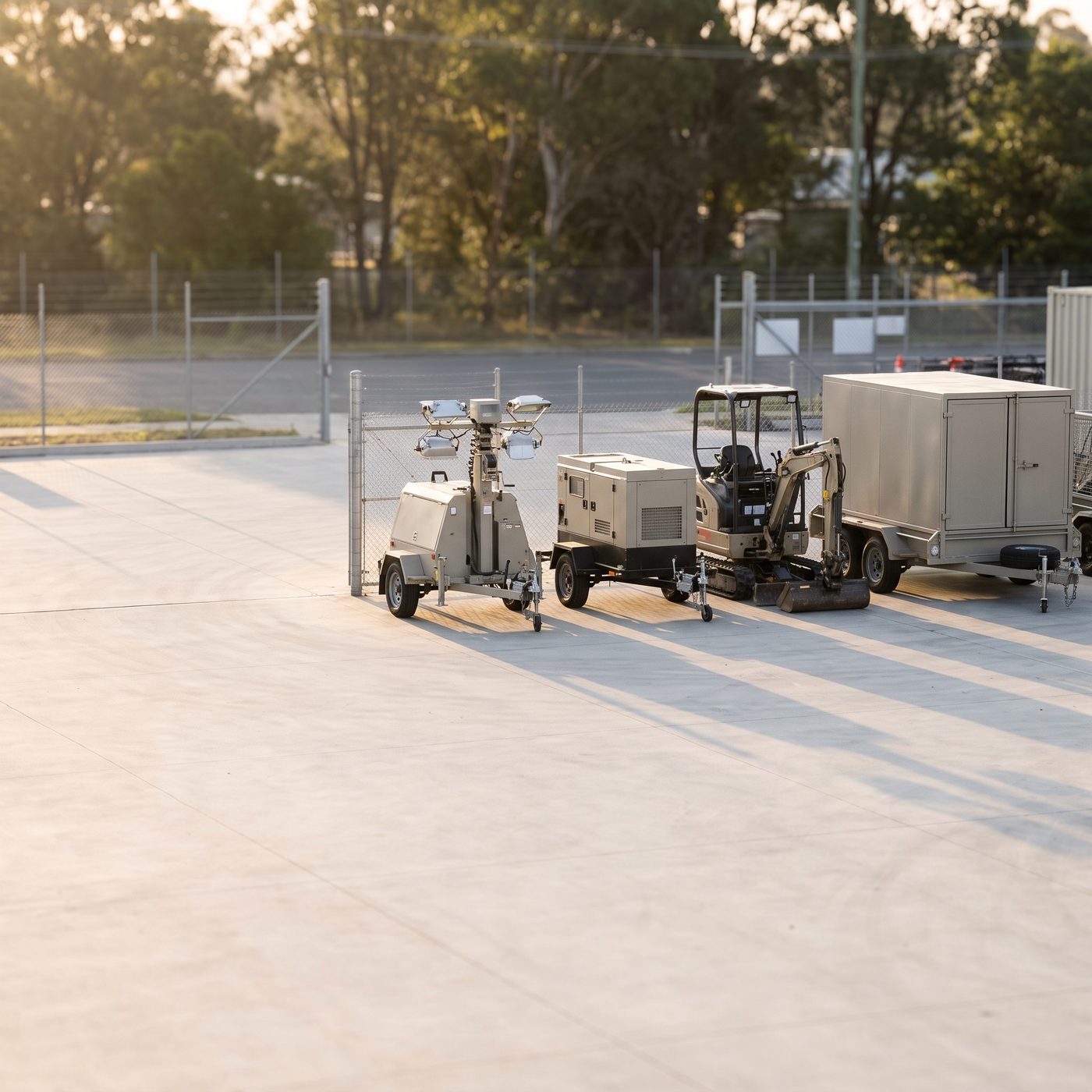

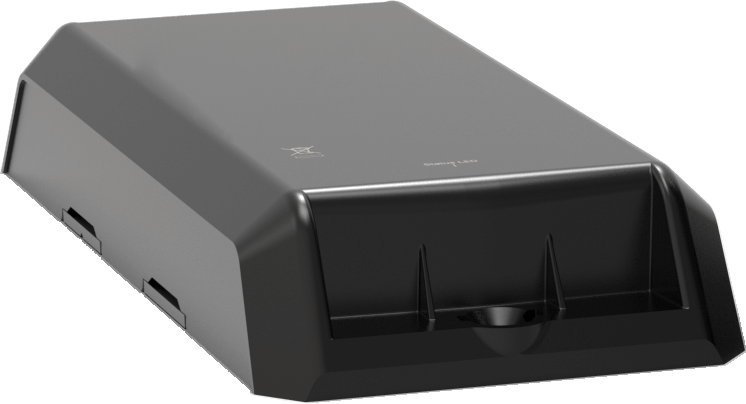

CT-A06 is a 4G GPS asset tracker with a built-in rechargeable 3,200 mAh lithium-ion battery and no wiring. Recharge it between jobs and put it back to work on hire equipment, site gear, a trailer or a boat.
It ships reporting its location once a day. The reporting interval is set on the platform: it can report on a schedule, at set intervals or when the asset moves, and the more often it reports, the sooner it needs a charge. Updates every 2 minutes on the Power Saver plan, or every 10 seconds on the Real-Time plan, use the battery far faster, so choose the interval to suit how often you want to recharge it.

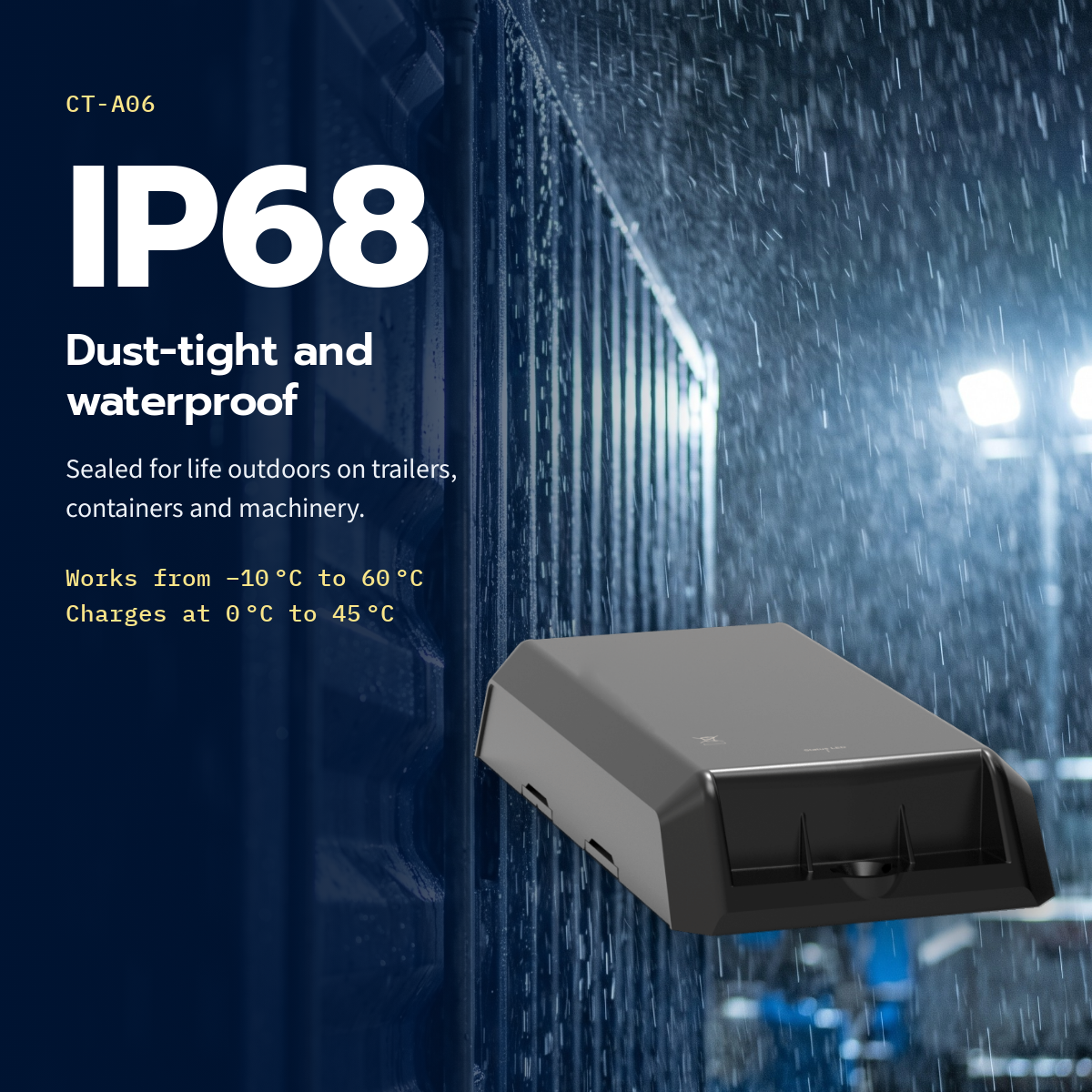

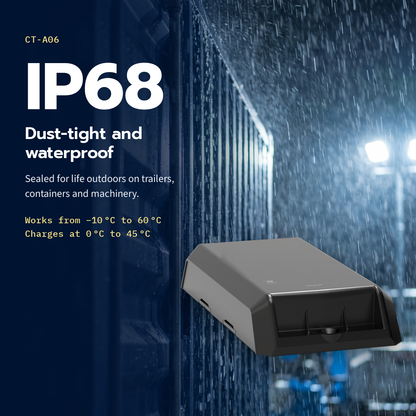

The case is sealed to IP68, dust-tight and waterproof. It works from –10 °C to 60 °C on its rechargeable battery and charges at 0 °C to 45 °C. GPS, GLONASS, Galileo and BeiDou work together for positions accurate to under 1.8 m, and a built-in motion sensor detects when the asset moves. It measures 156 × 70 × 25.2 mm and mounts flat with two screws (not included).

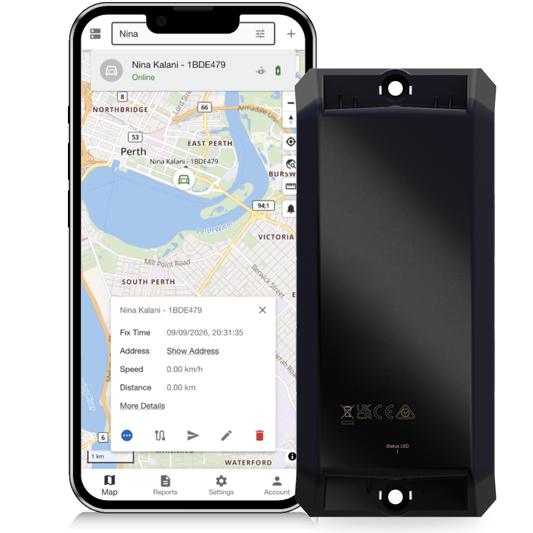

Choose CT-A06 when you’d rather recharge the battery than replace it. For the longest life with nothing to charge, choose CT-A05: its single-use battery holds nearly three times the energy.
Every Crucial Tracking data plan ships with a SIM that works across both the Telstra and Optus mobile networks.
Specifications
Full hardware spec published
Specifications for 4G GPS Rugged Rechargeable Asset Tracker (CT-A06)
Power & install
Power source
Built-in rechargeable battery — no wiring
Installation
No wiring — switch it on and screw it in place
Set-up
The nano-SIM slot and power switch sit under the top cover — press the cover flush at every corner to reseal it

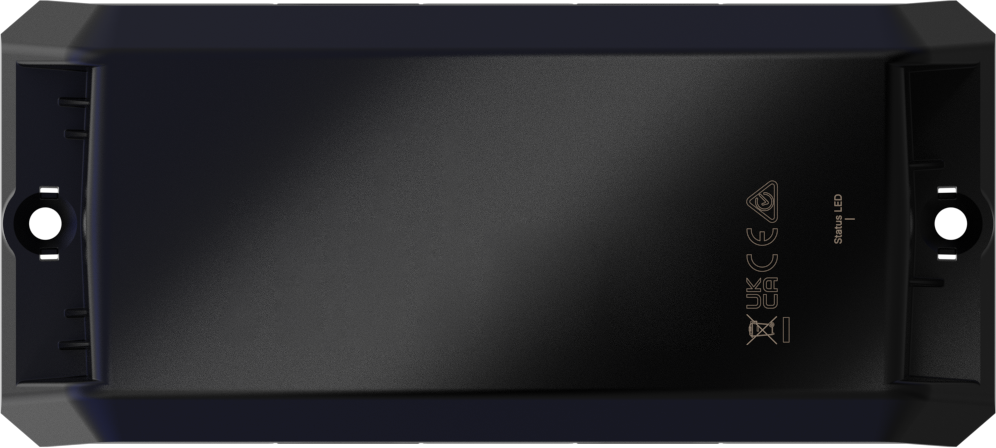

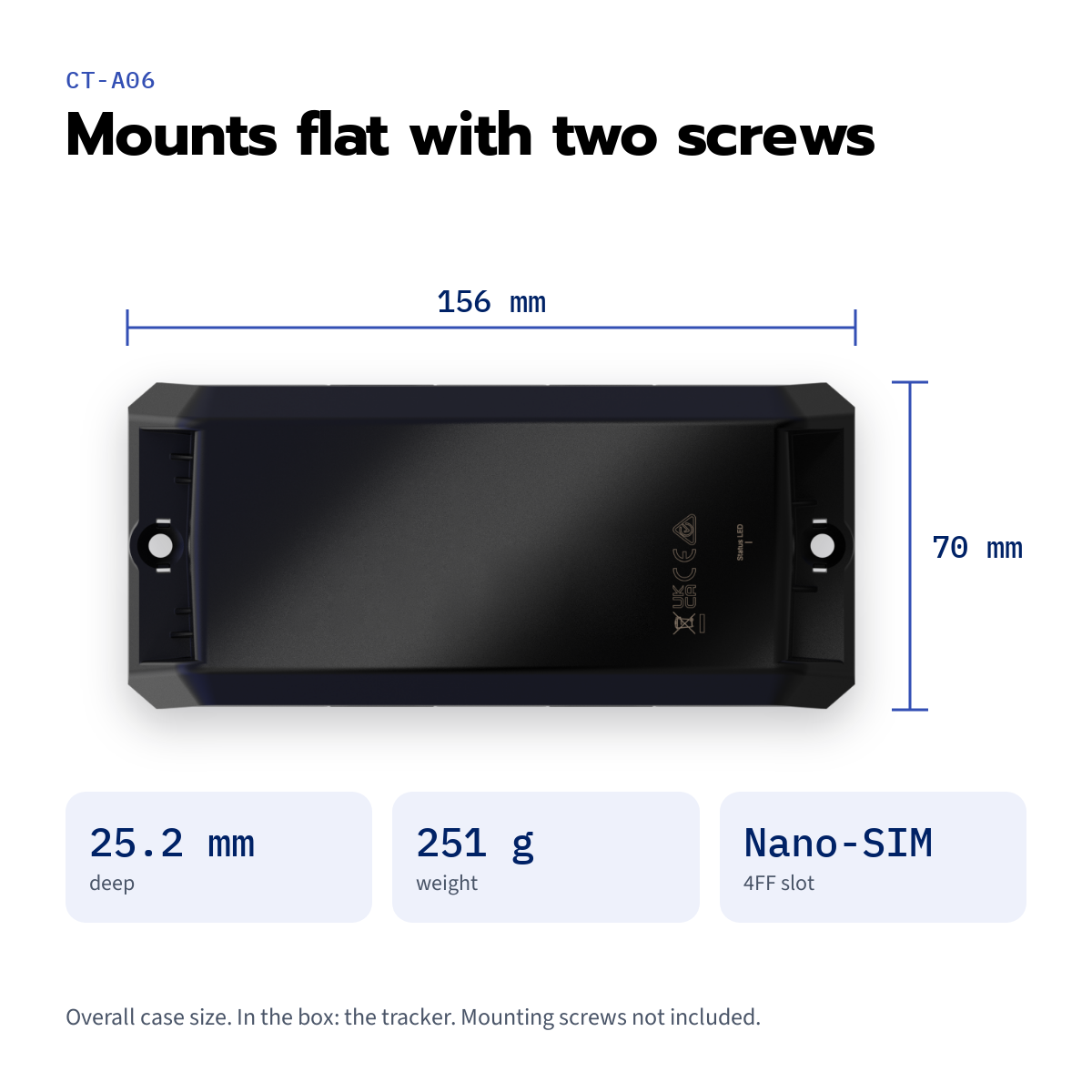

Size
156 × 70 × 25.2 mm, 251 g
Battery
Battery
3,200 mAh rechargeable lithium-ion, 3.7 V
Battery life
How long a charge lasts depends on how often it reports — updates every 2 minutes or every 10 seconds run it down far faster than the once a day it ships with; it holds about a third of the energy of the CT-A05’s single-use battery
Charging
Charges at 0 °C to 45 °C

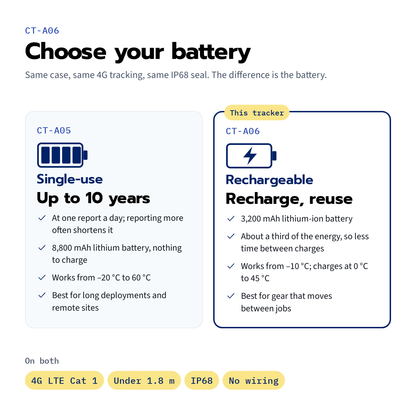

Which battery?
Rechargeable, for gear that moves between jobs — for the longest life with nothing to charge, see CT-A05
Battery change
Replaceable by opening the housing with the tracker switched off — fit only the exact type specified, as the wrong type is an explosion risk; contact us for a replacement
Network
Network
4G LTE Cat 1
Bands
LTE-FDD B1/B3/B5/B7/B8/B20/B28
SIM
Ours — works across both the Telstra and Optus mobile networks — or bring your own
SIM size
Nano-SIM (4FF)
Tracking & alerts
Positioning
GPS, GLONASS, Galileo and BeiDou — accurate to under 1.8 m
Reporting
Ships reporting once a day; the interval is set on the platform — on a schedule, at set intervals or when the asset moves
Between reports
Sleeps to stretch each charge, so a settings change reaches it at its next report
Movement
Built-in motion sensor detects when the asset moves
Mounting
Weather rating
IP68 — dust-tight and waterproof
Mounting

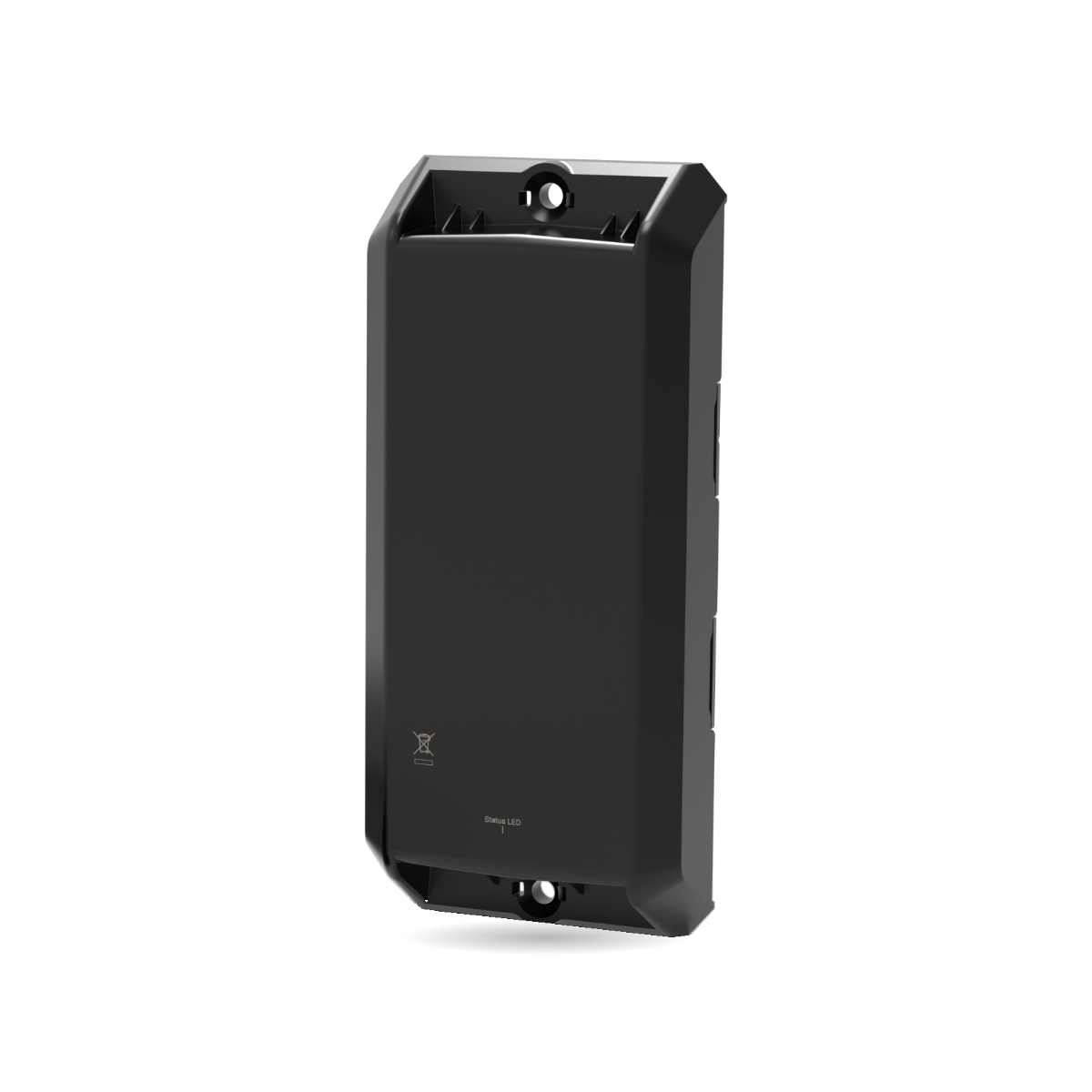

Two screw slots, one at each end of the case (screws not included) — mounts flat on a trailer, container, generator or machine; the antennas are built in
