Crucial Tracking

4G GPS Asset Tracker (CT-A02)

4G GPS Asset Tracker (CT-A02)

Regular price $299.00 AUD
Regular price Sale price $299.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Designed for vehicle & asset tracking, CT-A02 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS/Wi-Fi positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our cloud platform and mobile App, CT-A02 is ideal for remote monitoring of users’ targets, and it’s also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.

SIM Providers supported: Telstra.

View full details
  • What we offer

    Connect to the 4G Network
    By using a device that utilises the 4G mobile network, you can retrieve accurate GPS data with lightning speed & won’t become outdated any time soon.

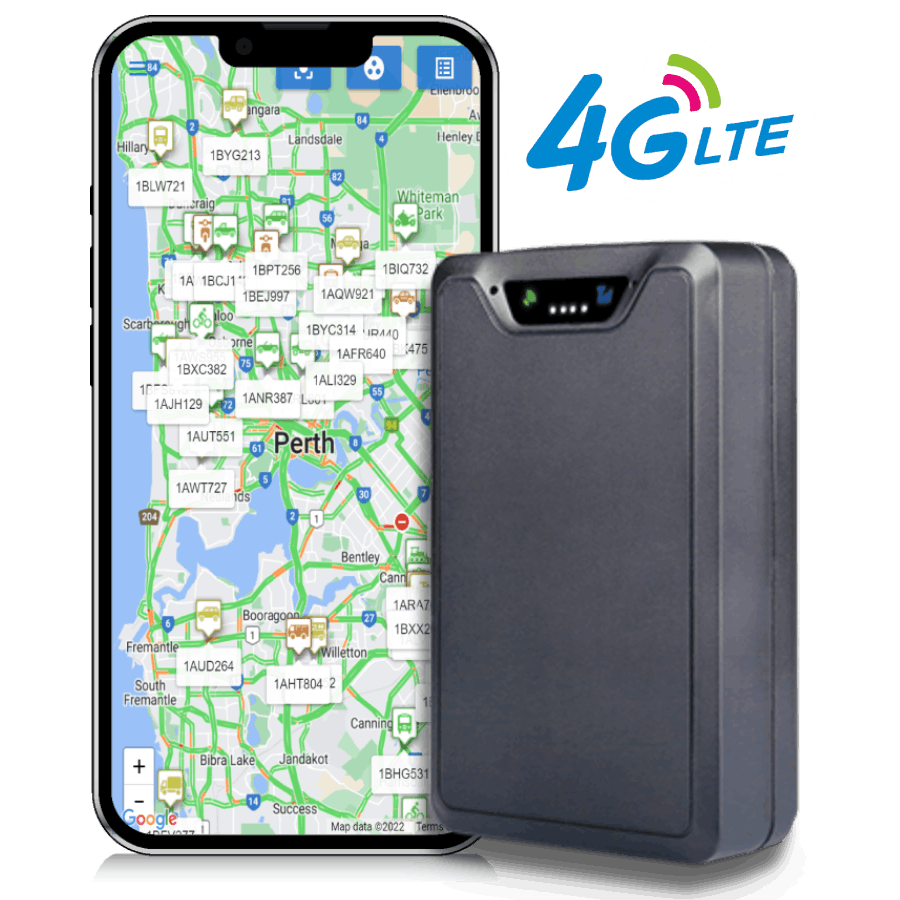

    FREE licence to our Open Standard tracking platform
    Your tracker comes with a FREE licence and NO contracts.  It’s compatible with all desktop and mobile devices, including Apple and Android devices.

    FREE SIM Card
    A SIM Card is required for all GPS Trackers. They ARE included FREE with your tracking device purchase.

    Australian Platform
    Our tracking platforms are hosted within Australia, by us, which means your data remains in Australia.

    Pre-Configuration
    Your tracker and platform access will be pre-configured, so your device is ready to go once you receive it.

    Track Multiple Devices
    Our platform allows you to track multiple assets and/or vehicles simultaneously. Perfect for both individuals and fleets.

  • Tracker features

    Instant Tamper Alerts
    Get instant notifications to your phone if someone decides to tamper with the magnetic device. Instant notifications are also sent for over-speed, movement and low battery and you choose whether they are sent to you via SMS or the app.

    Internal Memory
    Should the tracker lose 4G signal the device will memorise the GPS data and upload the signal once it establishes a connection with the 4G network again.

  • Global Navigation Satellite System (GNSS)

    Positioning system: GPS+BDS+LBS+WiFi

    Positioning accuracy: <2.5m CEP

    Tracking sensitivity: -165dBm

    Acquisition sensitivity: -148dBm

    TTFF (open sky) Avg. hot start: ≤1sec

    TTFF (open sky) Avg. cold start: ≤32sec

  • Cellular

    Communication network: LTE Cat1/GSM

    Frequency:

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
    LTE-TDD: B40
    GSM: B2/B3/B5/B8

  • Power

    Battery: 6,000mAh/3.7V industrial-grade Li-Polymer battery

    Working modes:

    Mode 1: Regular GPS mode

    Mode 2: Tracking mode

    Mode 3: Power-saving mode

    Standby time: Up to 1 year in power-saving mode

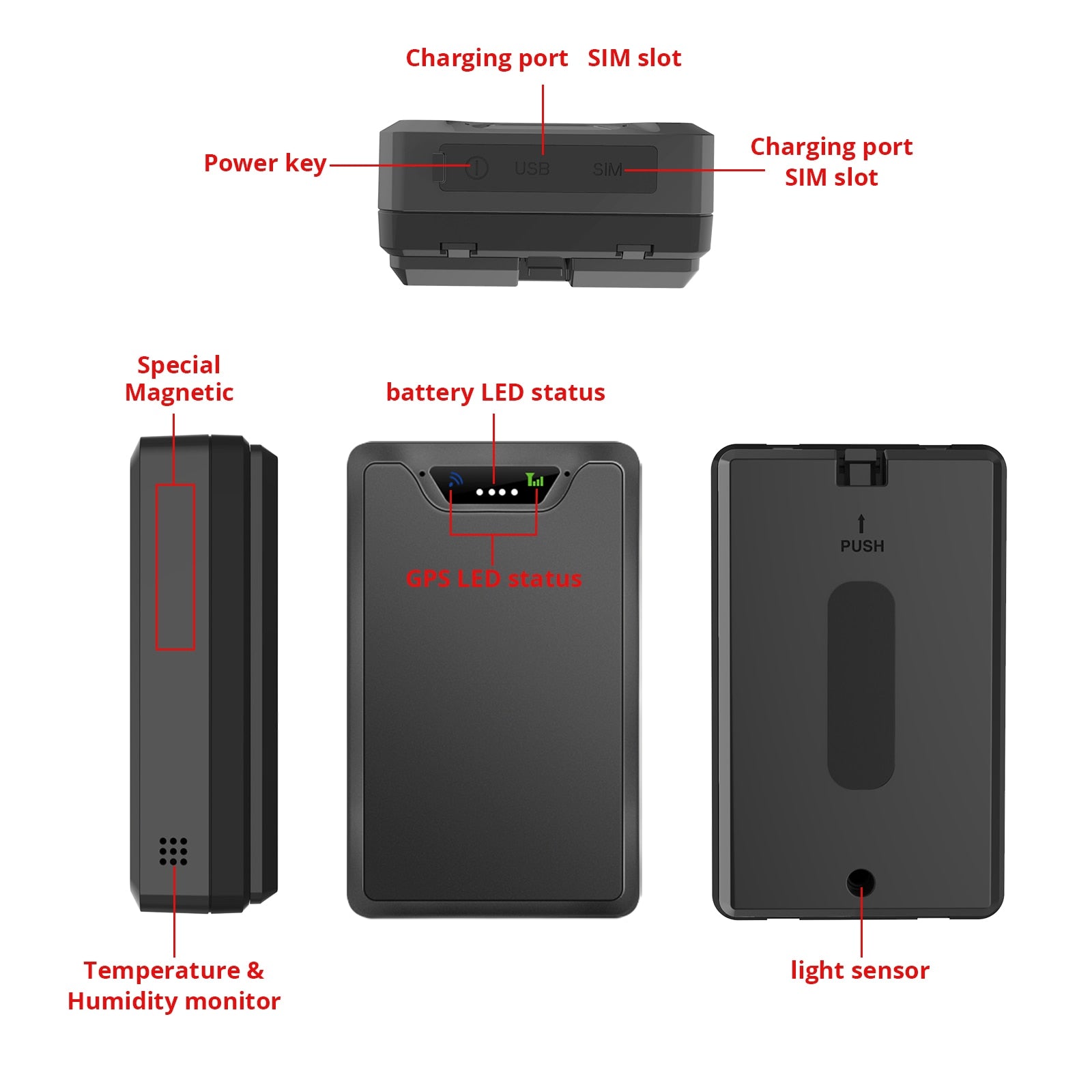

  • Interface

    LED indication: GNSS (Blue), Cellular (Green), Power (White)

    SIM: Micro-SIM

    Tamper proof: Light sensor

  • Physical specification

    Dimensions: 95.0 x 59.0 x 29.2mm (with magnet)

    Weight: 233g (with magnet)

  • Operating environment

    Operating temperature: –20℃ to +70℃

    Operating humidity: 5%~95%, non-condensing

    IP rating: IPX5

  • Feature

    Temperature detection: –20℃ to +70℃ (±0.2℃)

    Humidity detection: 5%~95% (±1%RH)

    Sensors: Accelerometer, Light sensor, Temperature & humidity sensor, Hall effect sensor

    Scenarios: Geo-fence, Low battery alert, Tamper alert, Vibrating Alert

We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
