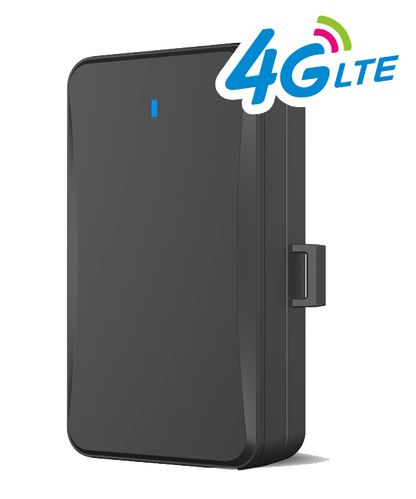

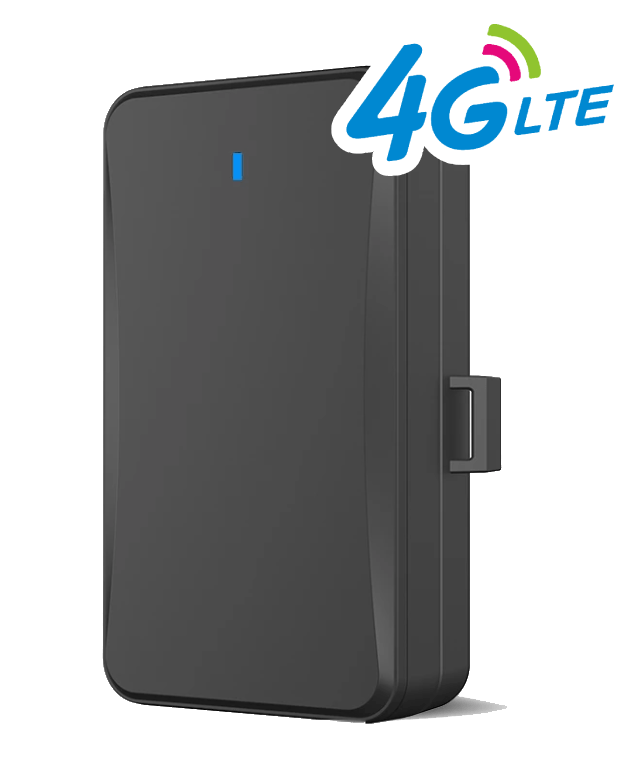

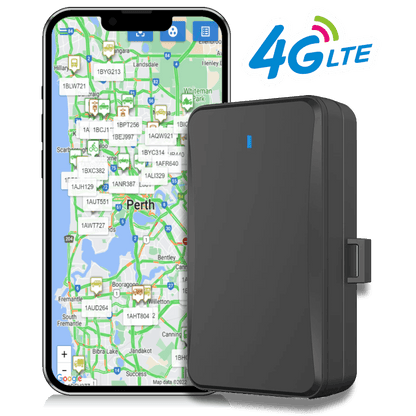

4G GPS Asset Tracker (JM-LL01)

4G GPS Asset Tracker (JM-LL01)

$220.00 AUD
$259.00 AUD $220.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

18 in stock

The JM-LL01 is a Cat-M1/Nb-IoT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

Unlike the majority of GPS trackers this device requires the ultra low power Cat-M1/Nb-IoT network that is only available to Telstra Business customers.

SIM Providers supported: Telstra only (Business IoT account only)

WE CURRENTLY DO NOT OFFER DATA PLANS FOR THIS DEVICE

View full details

Highlights

  • What we offer

    Connect to the 4G Network
    By using a device that utilises the 4G mobile network, you can retrieve accurate GPS data with lightning speed & won’t become outdated any time soon.

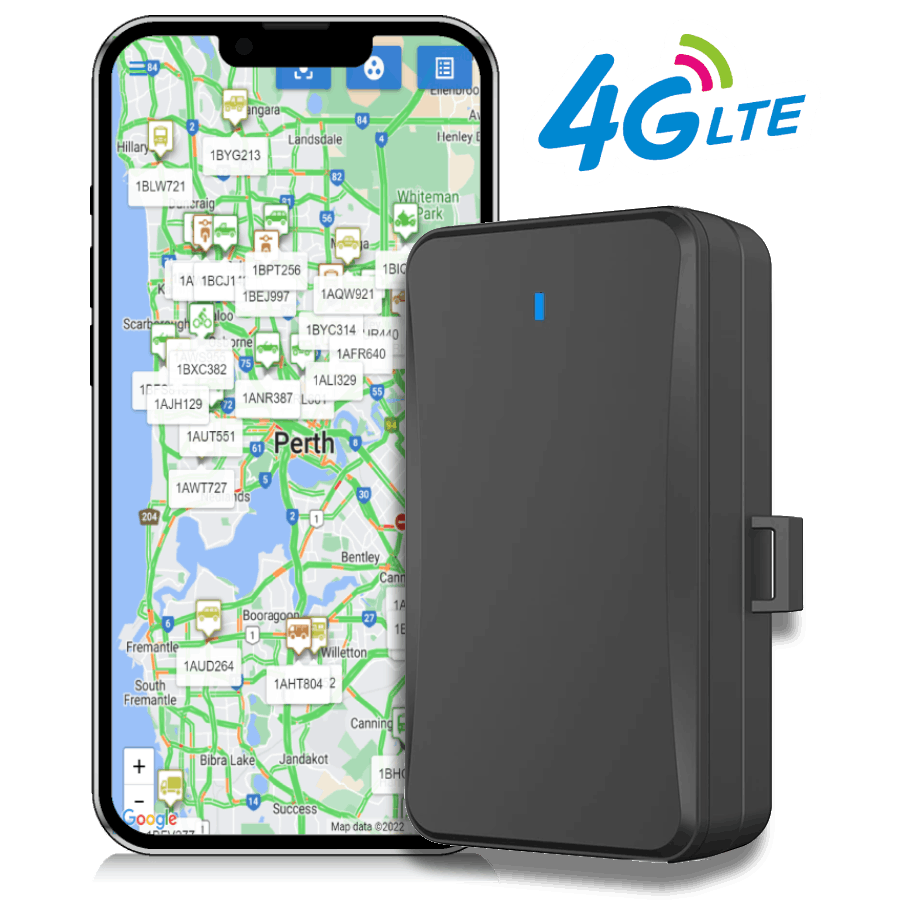

    FREE licence to our Open Standard tracking platform
    Your tracker comes with a FREE platform licence.  It’s compatible with all desktop and mobile devices, including Apple and Android devices.

    SIM Card and Data Plan
    A SIM Card with an active data subscription is required for all GPS Trackers.

    Australian Platform
    Our tracking platforms are hosted within Australia, by us, which means your data remains in Australia.

    Pre-Configuration
    Your tracker and platform access will be pre-configured, so your device is ready to go once you receive it.

    Track Multiple Devices
    Our platform allows you to track multiple assets and/or vehicles simultaneously. Perfect for both individuals and fleets.

  • Tracker features

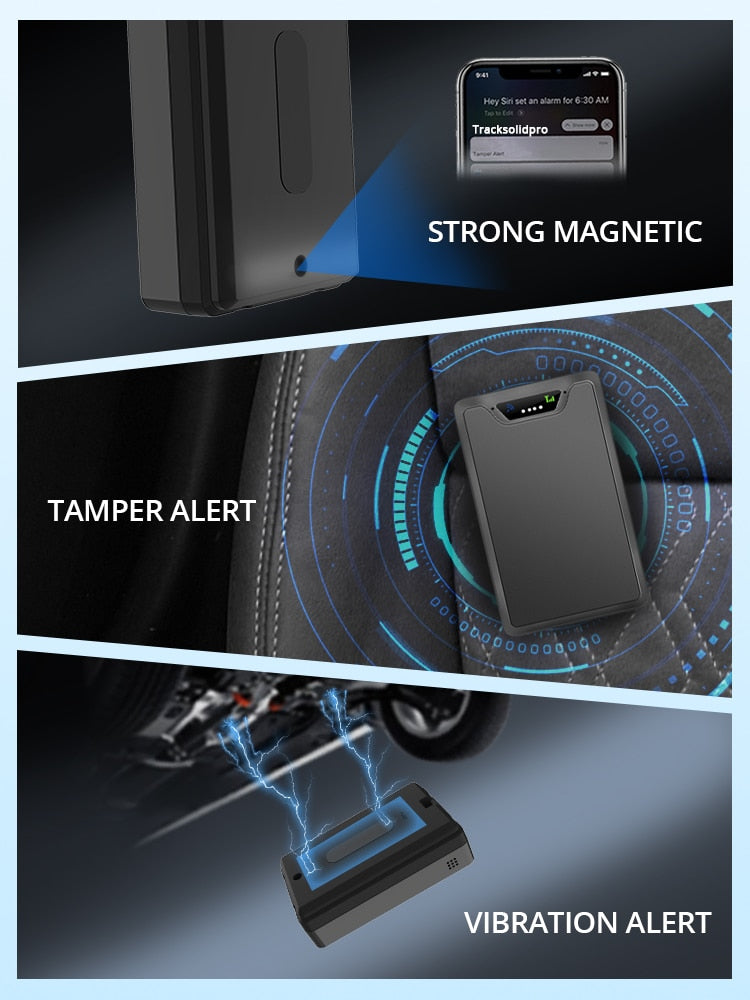

    Instant Tamper Alerts
    Get instant notifications to your phone if someone decides to tamper with the magnetic device. Instant notifications are also sent for over-speed, movement and low battery and you choose whether they are sent to you via the app.

    Internal Memory
    Should the tracker lose 4G signal the device will memorise the GPS data and upload the signal once it establishes a connection with the 4G network again.
Visit our FAQ

Specifications

  • Global Navigation Satellite System (GNSS)

    Positioning system: GPS+WiFi+LBS

    Frequency: L1

    Positioning accuracy: ＜2.5m CEP

    Tracking sensitivity: -165dBm

    Acquisition sensitivity: -148dBm

    TTFF (open sky) Avg. hot start: ≤1sec

    TTFF (open sky) Avg. cold start: ≤40sec

  • Cellular

    Communication network: LTE/EGPRS

    Frequency:

    LTE CAT M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66

    EGPRS: 850/900/1800/1900 MHz

  • Power

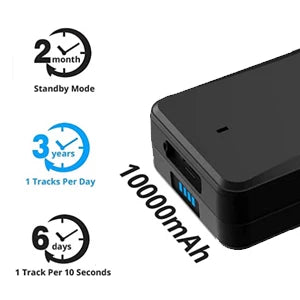

    Battery: 10,000mAh/3.7V industrial-grade Li-Polymer battery

    Working modes:

    Mode 0: Standby mode

    Mode 1: Tracking mode

    Mode 2: Power-saving mode

    Standby time: Up to 3 years in power-saving mode

  • Interface

    LED indication: 1 status indicator (Red), 4 battery indicators (Blue)

    SIM: Standard-SIM

    Data storage: 32+32Mb

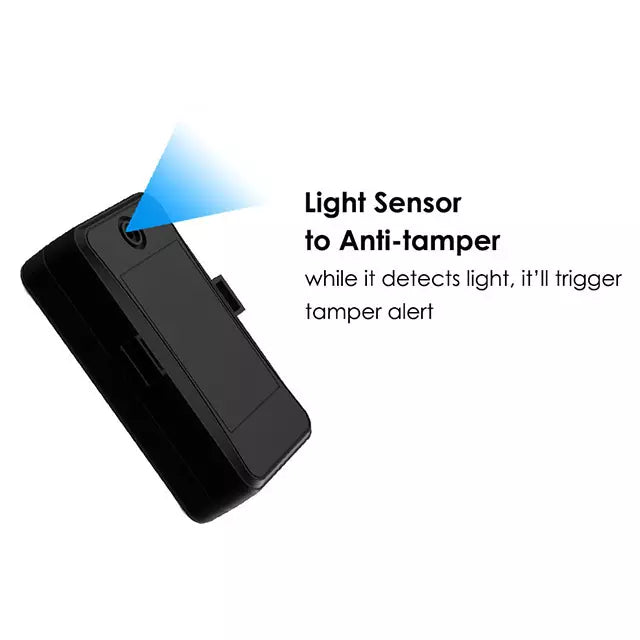

    Tamper proof: Light sensor

  • Physical specification

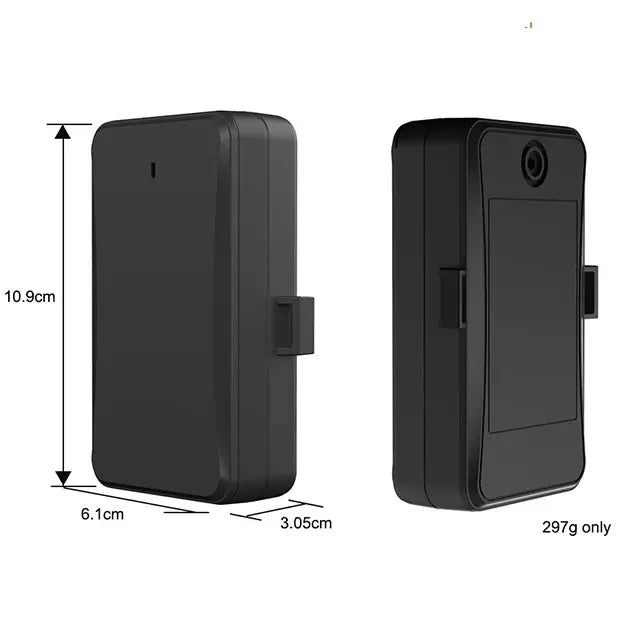

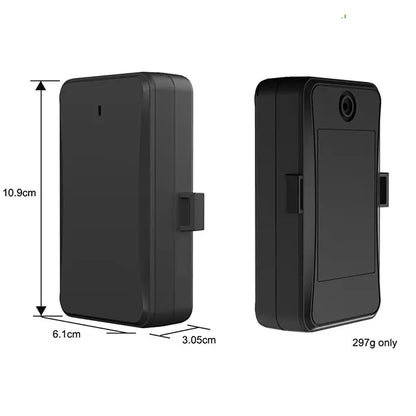

    Dimensions: 109.0 x 61.0 x 30.5mm

    Weight: 297g

  • Operating environment

    Operating temperature: –20℃ to +70℃

    Operating humidity: 5%～95%, non-condensing

    IP rating: IP65

  • Feature

    Certificates: FCC, CE, PTCRB, AT&T, TELEC

    Sensors: 3-Axis Accelerometer

    Scenarios: Low battery alert, Tamper alert, Vibrating Alert, Over-speed alert, Cover removal alert, Power off alert, Geo-fence
Compare All Devices

We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
